| Size | 32 |
|---|---|
| Stroke | 250 mm |
| Type code | FENG |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Guide |
| Explosion prevention and protection | Zone 22 (ATEX)Zone 21 (ATEX)Zone 2 (ATEX)Zone 1 (ATEX) |
| Ambient temperature | -20 °C … 80 °C |
| Max. force Fy | 750 N |
| Max. force Fy static | 1020 N |
| Max. force Fz | 750 N |
| Max. force Fz static | 1020 N |
| Max. torque Mx | 28 Nm |
| Max. static moment Mx | 38 Nm |
| Max. torque My | 34 Nm |
| Max. static moment My | 46 Nm |
| Max. torque Mz | 34 Nm |
| Max. static moment Mz | 46 Nm |
| Displacement force | 15 N |
| Product weight | 1980 g |
| Type of mounting | With internal thread |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Material of guide component | Tempered steel |
| Material of yoke plate | Wrought aluminum alloy, anodized |
FENG

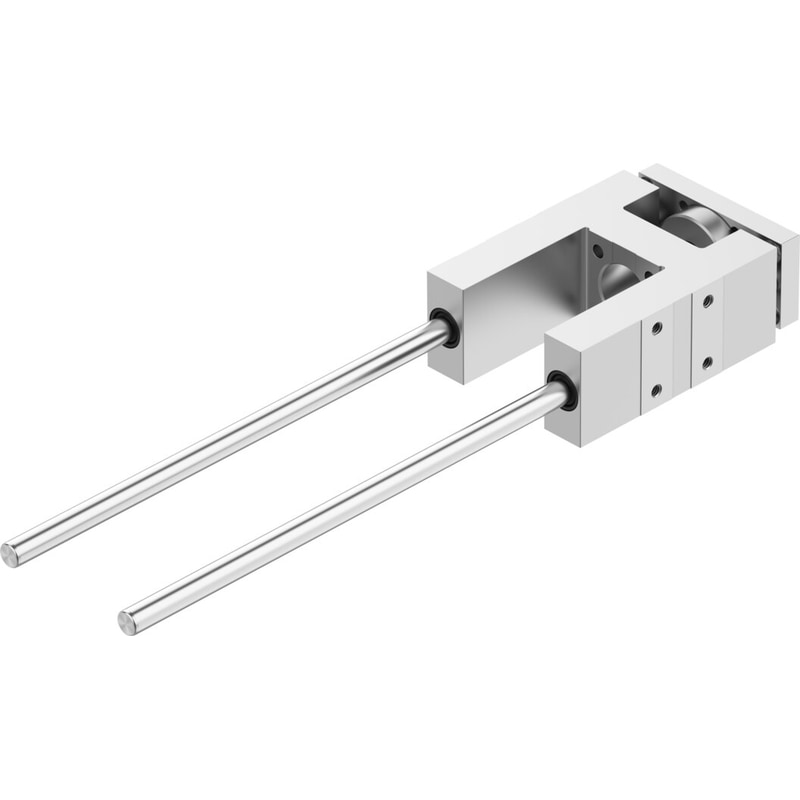

FENG-32-250-KF
$984.92
For high torques: protection against rotation of standardized cylinders DSBC DSBG DNC.
| Weight | 3.815981 lbs |
|---|---|
| Dimensions | 16.889764 × 2.047244 × 3.897638 in |
