| Type code | CMMP-AS |
|---|---|
| Line filter | Integrated |
| Display | Seven-segment display |
| Output frequency | 0 Hz … 1000 Hz |
| Output voltage range AC | 3x 0 – 360 V |
| Braking resistor | 68 Ohm |
| Characteristics of digital logic outputs | Freely configurable in some casesGalvanically isolated |
| Impedance of setpoint input | 20 kOhm |
| Pulse power of braking resistor | 8.5 kVA |
| Max. current of digital logic outputs | 100 mA |
| Max. peak current duration | 5 s |
| Max. DC link voltage | 560 V |
| Nominal output current | 0.208333333333333 |
| Nominal operating voltage AC | 400 V |
| Controller nominal power | 3000 VA |
| Nominal voltage, logic supply DC | 24 V |
| Nominal current | 5.5 A |
| Nominal current per phase, effective | 0.208333333333333 |
| Mains frequency | 50 Hz … 60 Hz |
| Parameterization interface | EthernetUSBParameterization and commissioning |
| Nominal operating voltage phases | 3-phase |
| Peak power | 6000 VA |
| Peak current per phase, effective | 15 A |
| Contamination level | 2 |
| Permissible range of logic voltage | ± 20 % |
| Permissible voltage fluctuations | +/- 10 % |
| CE marking (see declaration of conformity) | as per EU machinery directiveAs per EU EMC directiveAs per EU low voltage directive |
| Storage temperature | -25 °C … 70 °C |
| Relative air humidity | 0 – 90 % |
| Degree of protection | IP20IP10 |
| Ambient temperature | 0 °C … 40 °C |
| Certification | RCM compliance markc UL us – Listed (OL) |
| Product weight | 3450 g |
| Number of analog monitor outputs | 2 |
| Number of analog setpoint inputs | 2 |
| Number of digital logic outputs 24 V DC | 5 |
| Number of digital logic inputs | 10 |
| Communication profile | FHPPDS301/DSP402 |
| Process interfacing | I/O couplingFor 256 positioning blocks |
| Work range of logic input | 8 V … 30 V |
| Working range of monitor outputs | ± 10 V |
| Work range of setpoint input | ± 10 V |
| Resolution of monitor outputs | 9 bit |
| Encoder interface output, characteristics | Resolution 16384 ppr |
| Encoder interface input, characteristics | EnDat®HIPERFACE3-phase encoder signalsSINCOSRS422 |
| Characteristics of monitor outputs | Short circuit-proof |
| Characteristics of setpoint inputs | Differential inputsConfigurable for currentConfigurable for rotational speed |
| Characteristics of logic input | Freely configurableGalvanically isolated |
| Output encoder interface, function | Setpoint specification for downstream slave actuator.Actual value feedback via encoder signals in speed control mode. |
| Input encoder interface, function | As speed setting of the slave actuator in synchronous mode.Encoder signal speed setpoint value. |
| Bus connection | 9-pinPlugSub-D |
| Fieldbus coupling | CANopenModbus®/TCPEtherCATDeviceNetEtherNet/IPProfibus DPPROFINET |
| Max. fieldbus transmission rate | 1 Mbit/s |
| Type of mounting | On sub-baseScrewed tightly |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
CMMP-AS

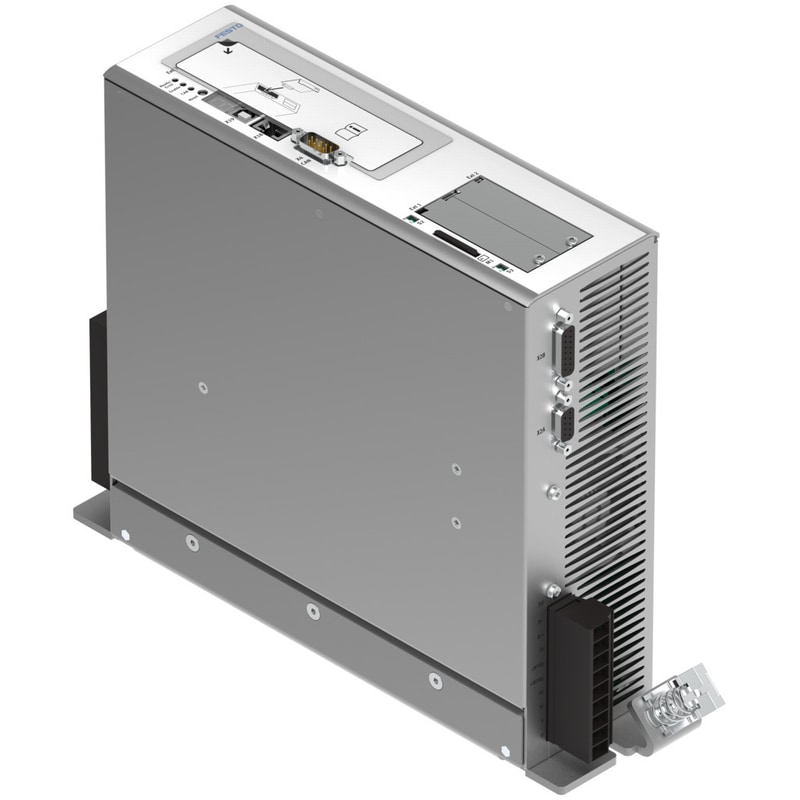

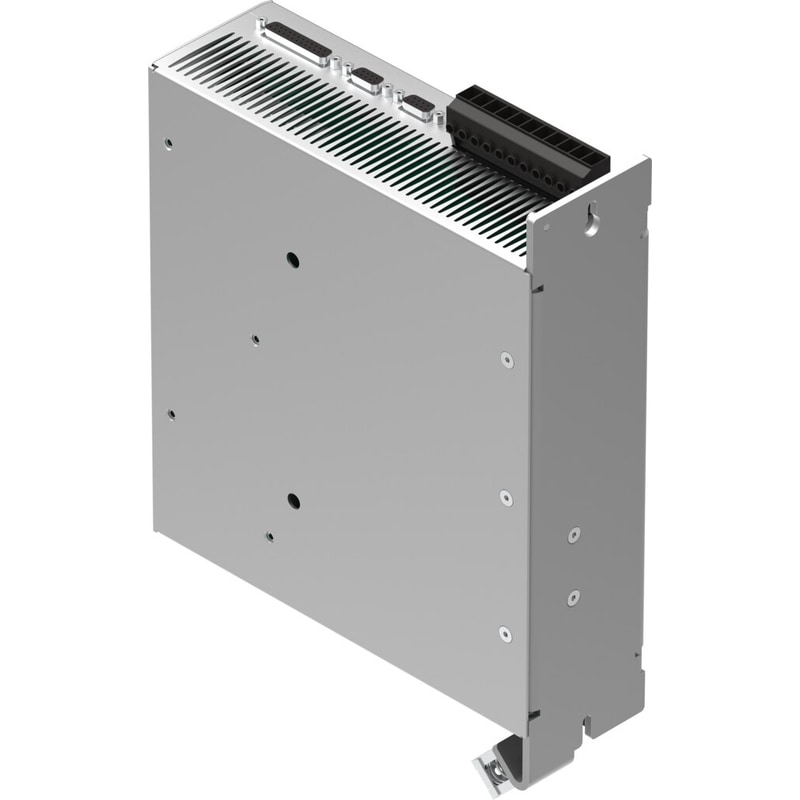

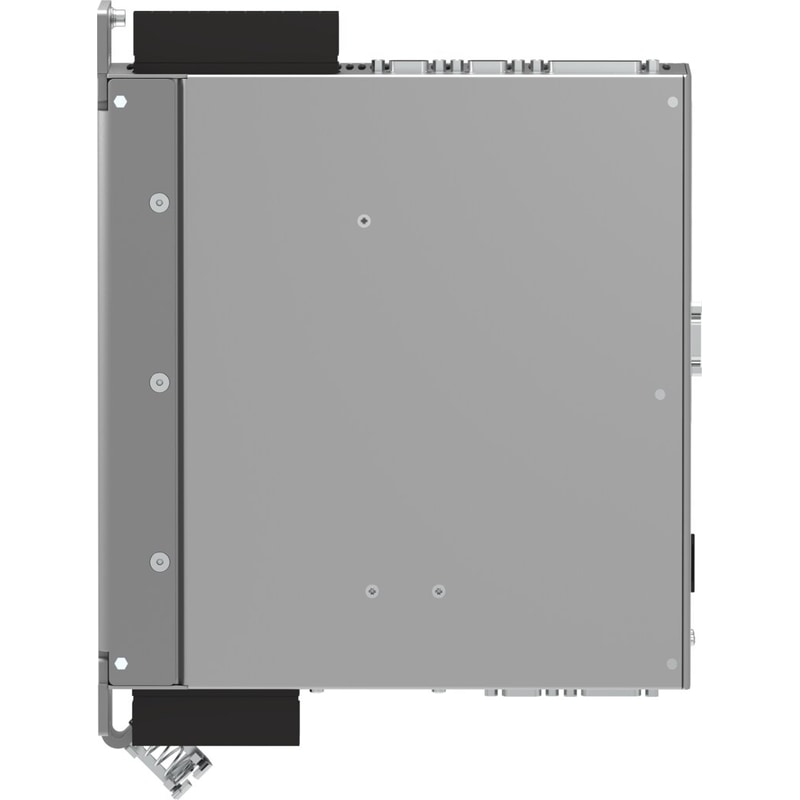

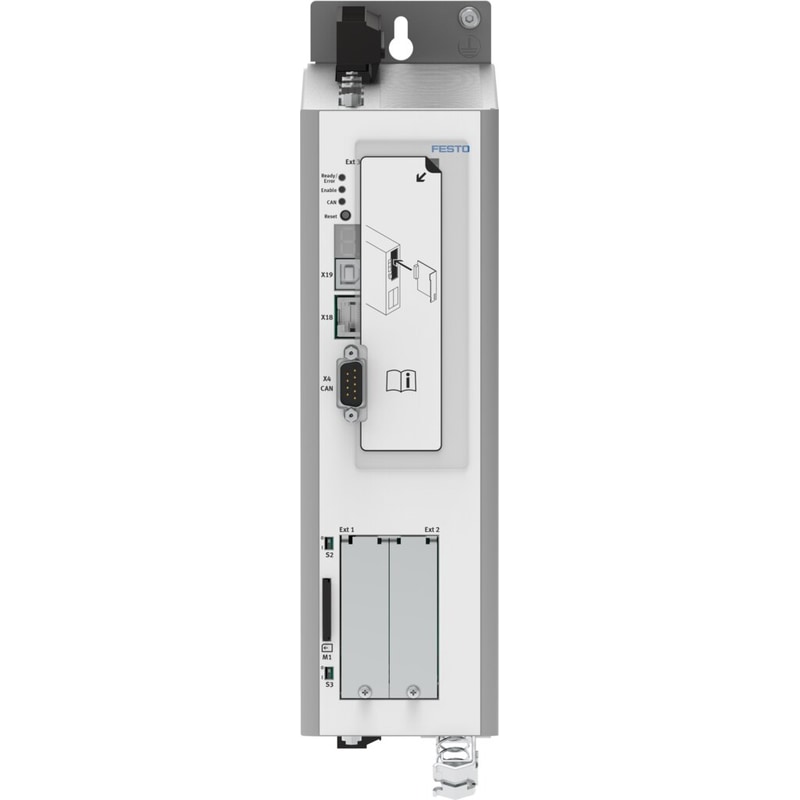

CMMP-AS-C5-11A-P3-M3
$2,867.58
A very cost-effective and compact motor controller with pulse train technology and integrated auto-tuning function. When combined with the EMMB-AS servo motor, it is ideal for simple positioning tasks in the electronics industry, small parts assembly, or for desktop applications
| Weight | 9.279257 lbs |
|---|---|
| Dimensions | 21.653543 × 11.417323 × 4.724409 in |
