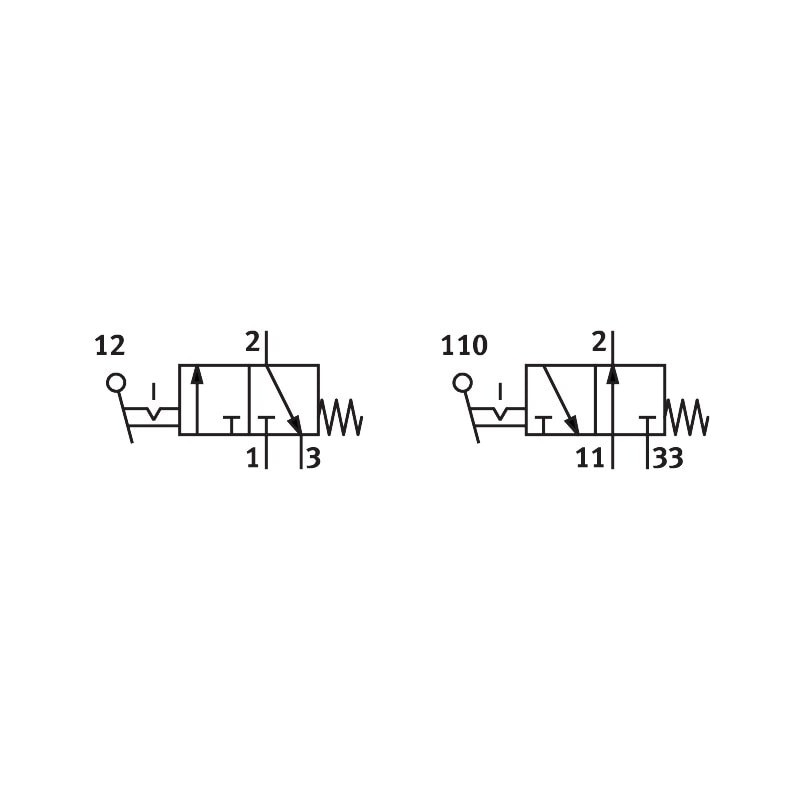

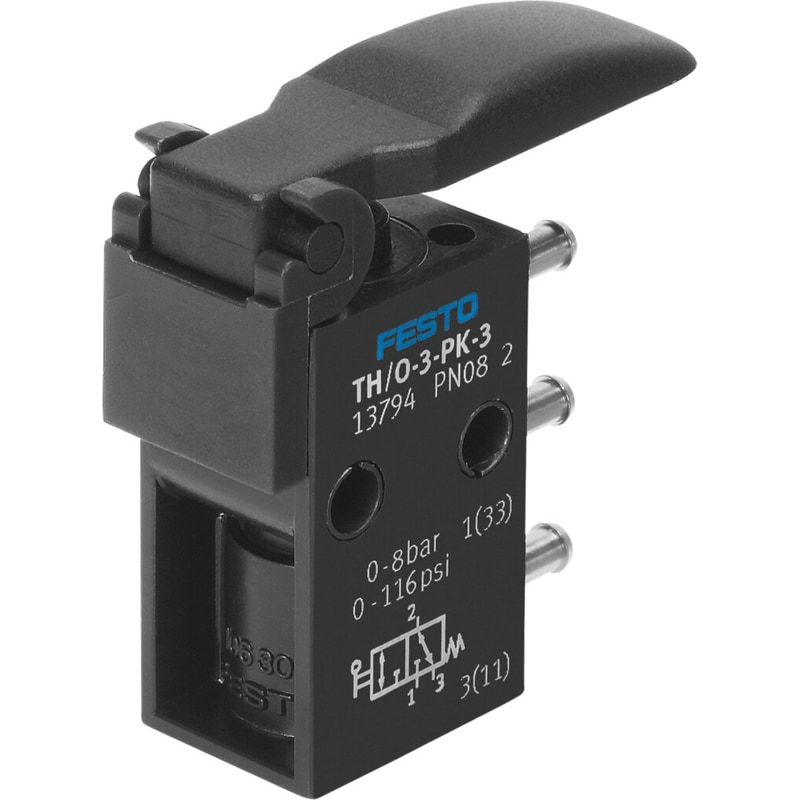

finger lever valve TH/O-3-PK-3 With barbed fitting connection for tubing ND 3 mm. Depending on the choice of connections, normally-open or normally-closed function. Valve function=3/2 open/closed, monostable, Standard nominal flow rate=80 l/min, Operating pressure=0 – 8 bar, Design structure=Piston seat, Nominal size=2,5 mm
| Valve function | 3/2 open/closed, monostable |
|---|---|
| Standard nominal flow rate | 80 l/min |
| Operating pressure | 0 … 8 bar |
| Design structure | Piston seat |
| Nominal size | 2.5 mm |
| Type of piloting | direct |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Ambient temperature | ‘-10 … 60 °C |
| Actuating force for normally closed | 8 N |
| Actuating force for normally open | 6 N |
| Product weight | 18 g |
| Mounting type | with through hole |
| Pneumatic connection, port 1Â | PK-3 |
