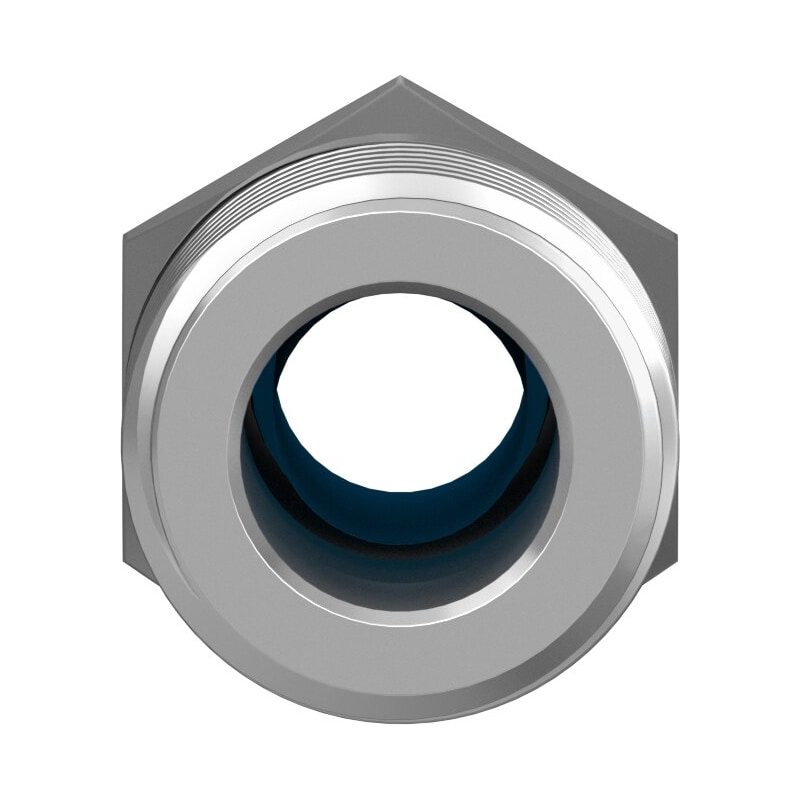

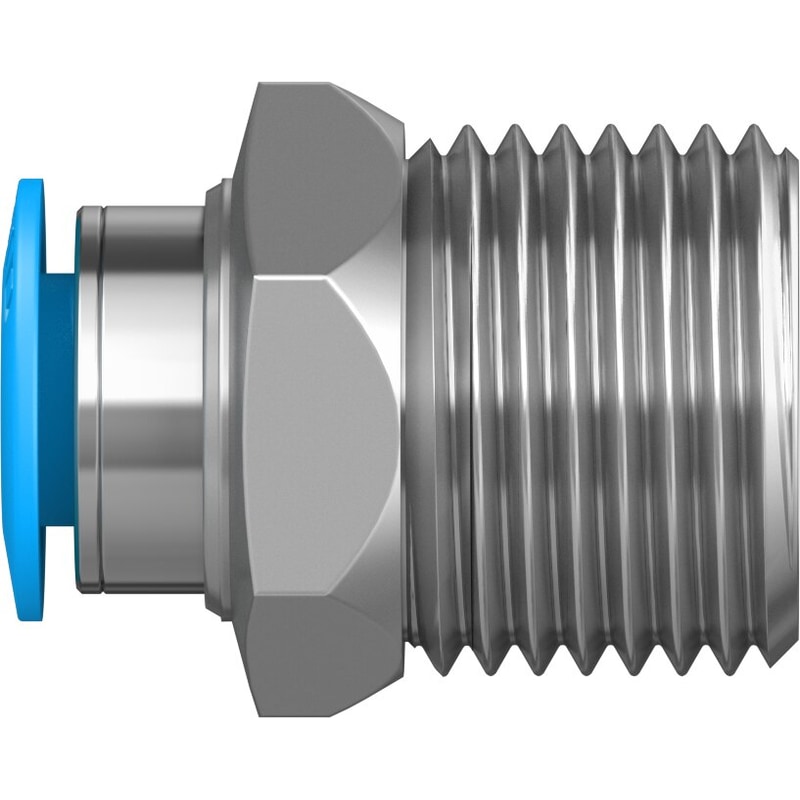

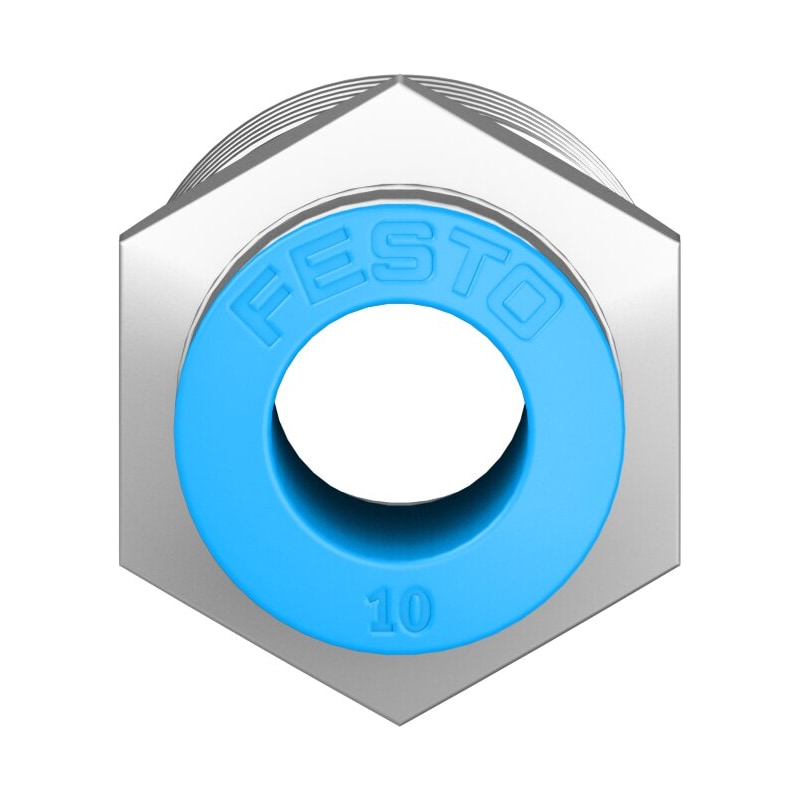

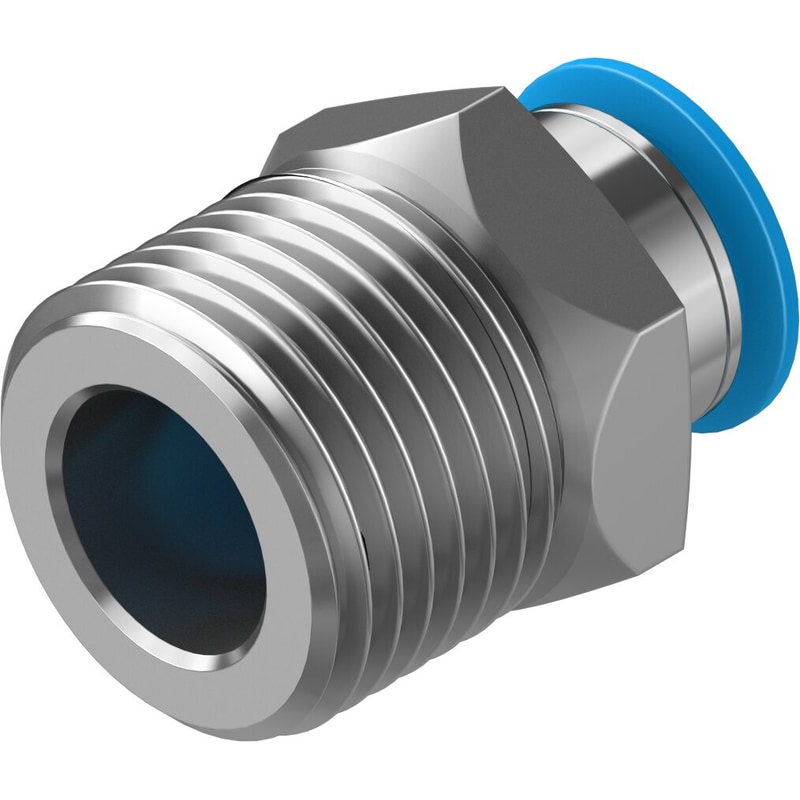

QS-1/2-10-50 Push-in fitting (Pack of 50)

$225.50

Sold in Pack of 50

SKU: 133189 Category: Tags: ,
Festo

push-in fitting QS-1/2-10-50 Size=Standard, Nominal size=9 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=50

Fitting Type Male Straight
Size  Standard
Nominal size  9 mm
Type of seal on screw-in stud  coating
Assembly position  Any
Container size  50
Design structure  Push/pull principle
Operating pressure complete temperature range  ‘-0.95 … 6 bar
Temperature dependent operating pressure  ‘-0.95 … 14 bar
Corrosion resistance classification CRC  1 – Low corrosion stress
Ambient temperature  ‘-10 … 80 °C
Maritime classification  see certificate
Product weight  46 g
connection 1  Male thread R1/2
connection 2  For tubing outside diameter 10 mm
Colour of release ring  blue
Materials note  Conforms to RoHS
Material housing  BrassNickel plated
Material release ring  POM
Material of tubing seal  NBR
Fitting Type

Male Straight

Size

Standard

Nominal size

9 mm

Type of seal on screw-in stud

coating

Assembly position

Any

Container size

50

Design structure

Push/pull principle

Operating pressure complete temperature range

-0.95 … 6 bar

Temperature dependent operating pressure

-0.95 … 14 bar

Corrosion resistance classification CRC

1 – Low corrosion stress

Ambient temperature

-10 … 80 °C

Maritime classification

see certificate

Product weight

46 g

connection 1

Male thread R1/2

connection 2

For tubing outside diameter 10 mm

Colour of release ring

blue

Materials note

Conforms to RoHS

Material housing

BrassNickel plated

Material release ring

POM

Material of tubing seal

NBR
