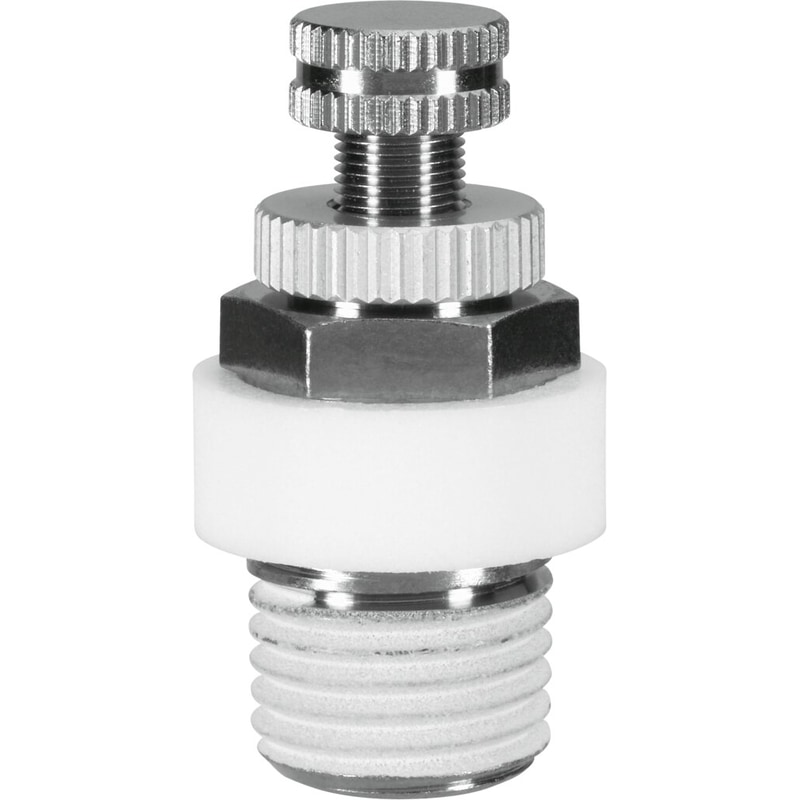

| Type code | VFFK |
|---|---|
| Valve function | Sound pressure flow control function |
| Selection of additional function | With pneumatic muffler |
| Pneumatic connection 1 | M7 |
| Adjusting element | Knurled screw |
| Type of mounting | Screw-in |
| Standard flow rate 6->0 bar | 0 l/min … 100 l/min |
| Operating pressure | 0 bar … 10 bar |
| Ambient temperature | 0 °C … 60 °C |
| Type of seal on screwed trunnion | Sealing ring |
| Mounting position | Any |
| Symbol | 991451 |
| Operating pressure for entire temperature range | 0 bar … 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0 °C … 60 °C |
| Nominal tightening torque | 3.8 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 5.8 g |
| Cushioning insert material | PE |
| Material of screwed trunnion | Brass, nickel-plated |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Weight | 0.015697 lbs |
|---|---|
| Dimensions | 0.944882 × 0.393701 × 0.944882 in |
