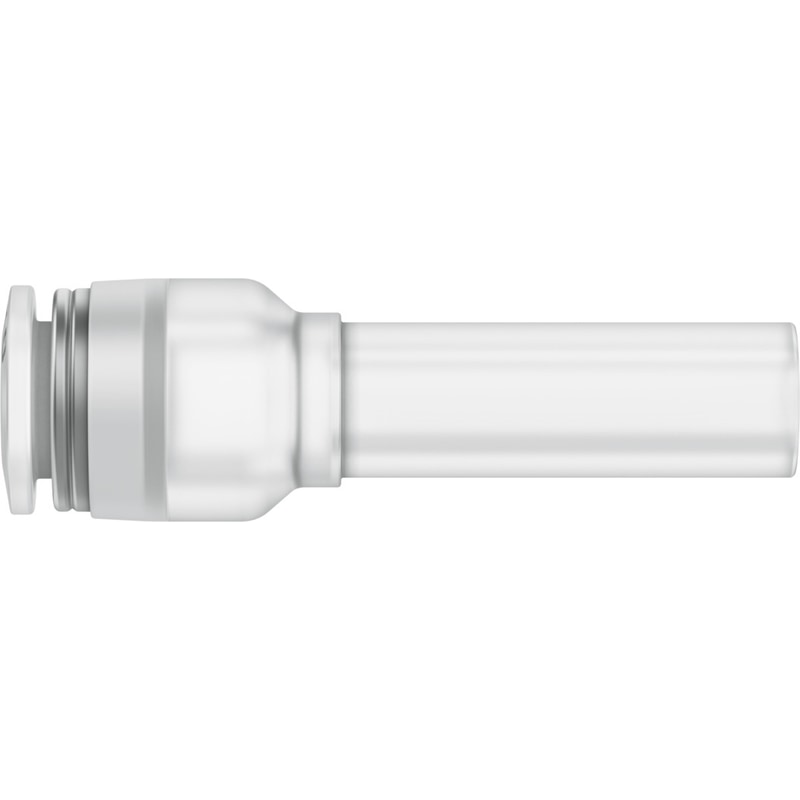

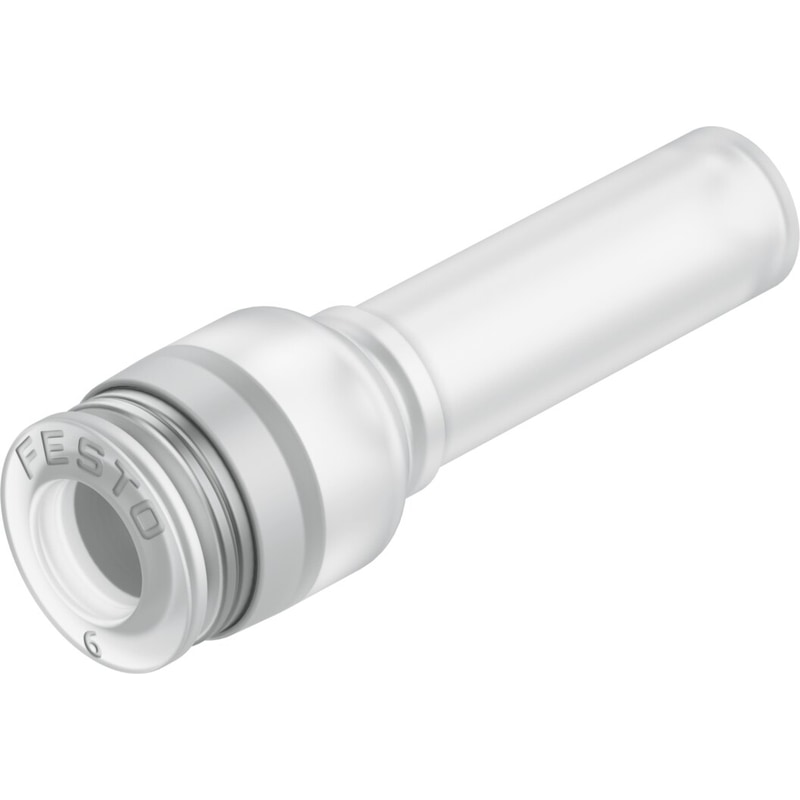

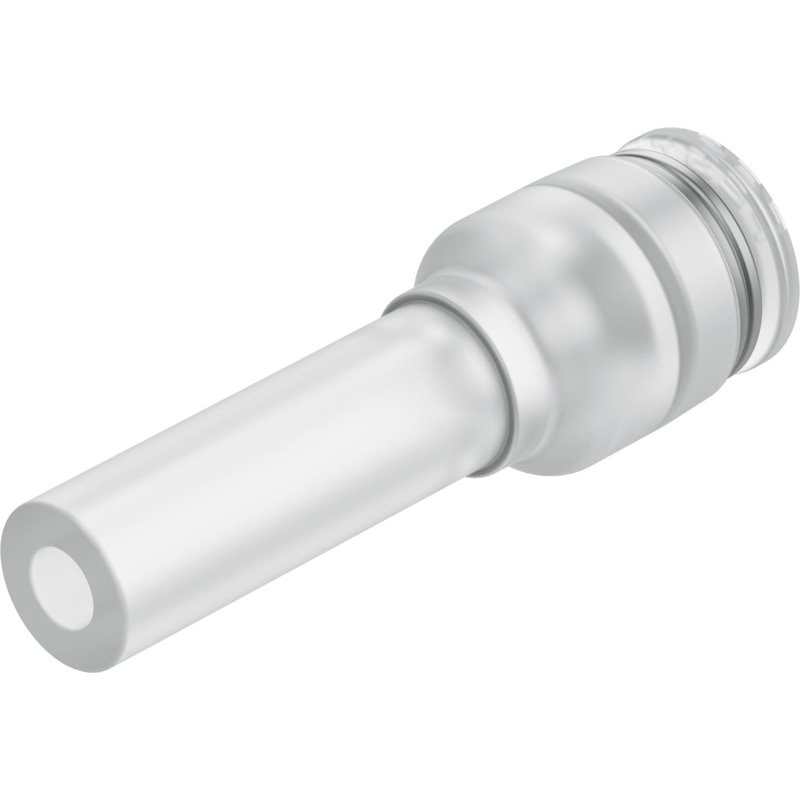

push-in connector NPQP-D-Q6-S8-FD-P10 Size=Standard, Nominal size=3,8 mm, Container size=10, Design structure=Push/pull principle, Temperature dependent operating pressure=-0,95 – 10 bar
| Fitting Type | Plug-in Reducer |
|---|---|
| Size | Standard |
| Nominal size | 3.8 mm |
| Container size | 10 |
| Design structure | Push/pull principle |
| Temperature dependent operating pressure | ‘-0.95 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 4 – Very high corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | ‘-20 … 60 °C |
| Product weight | 3.2 g |
| connection 1Â | Push-in sleeve QS-8 |
| connection 2Â | For tubing outside diameter 6 mm |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | PP |
| Material of tube retaining claw | High alloy steel, non-corrosive |
