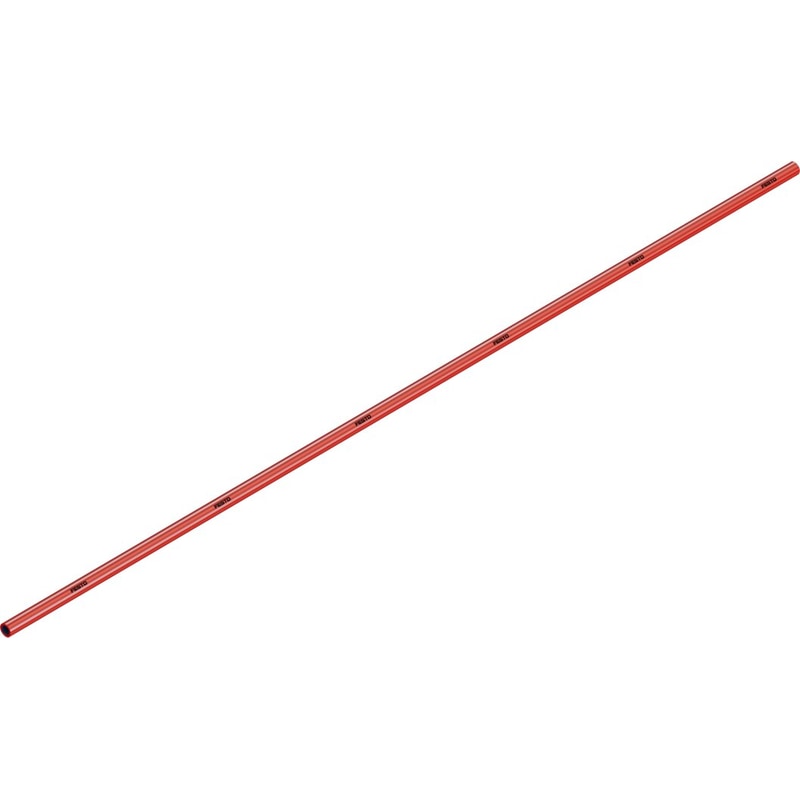

plastic tubing PUN-H-2X0,4-RT Approved for use in food processing (hydrolysis resistant) Outside diameter=2 mm, Bending radius relevant for flow rate=8 mm, Inside diameter=1,2 mm, Min. bending radius=5 mm, Temperature dependent operating pressure=-0,95 – 6 bar
| Outside diameter | 2 mm |
|---|---|
| Bending radius relevant for flow rate | 8 mm |
| Inside diameter | 1.2 mm |
| Min. bending radius | 5 mm |
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Tubing test conditions | Suitable for energy chains: > 5 million cycles to FN 942021 |
| Temperature dependent operating pressure | ‘-0.95 … 6 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Ambient temperature | ‘-35 … 60 °C |
| Product weight according to length | 0.0024 kg/m |
| Pneumatic connection | For push-in outside diameter 2 mm |
| Color | Red |
| Shore hardness | D 52 +/-3 |
