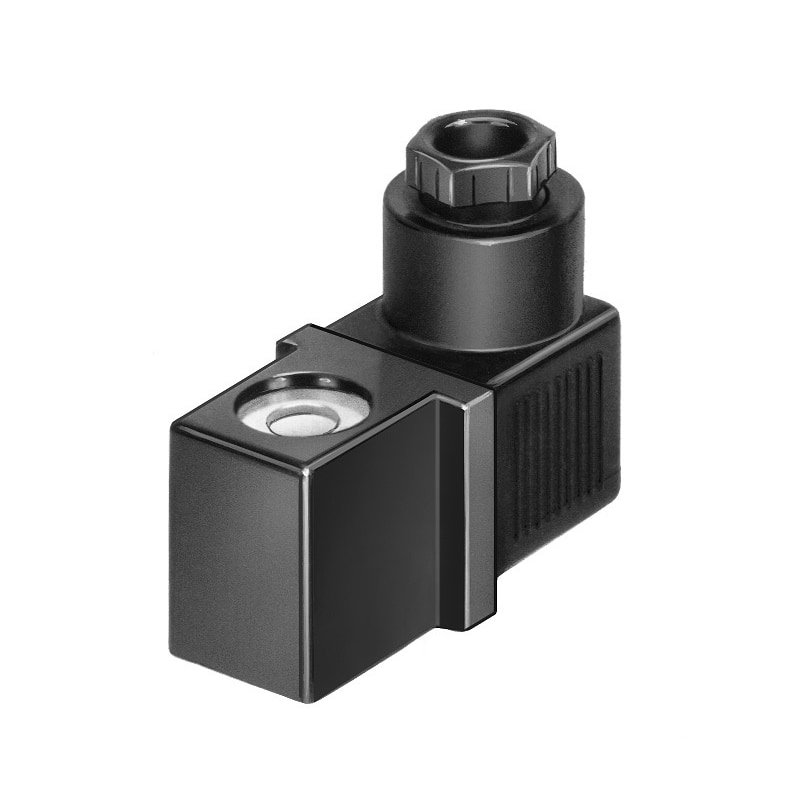

solenoid coil MSFG-24/42-50/60-DS For standard plug socket per DIN EN 175301 Assembly position=Any, Switching position indicator=No, Min. pickup time=10 ms, Duty cycle=100%, Power factor cos {phi}=0,7
| Assembly position | Any |
|---|---|
| Switching position indicator | No |
| Min. pickup time | 10 ms |
| Duty cycle | 1 |
| Power factor cos {phi}Â | 0.7 |
| Characteristic coil data | 24 V DC: 4.5 W42 V AC: 50/60 Hz, pick-up power 9 VA, holding power 7 VA |
| Permissible frequency fluctuation | ‘+/- 5 % |
| Permissible voltage fluctuation | ‘+/- 10 % |
| Protection class | IP65 |
| Ambient temperature | ‘-5 … 40 °C |
| Maritime classification | see certificate |
| Max. tightening torque, plug socket | 0.4 Nm |
| Product weight | 55 g |
