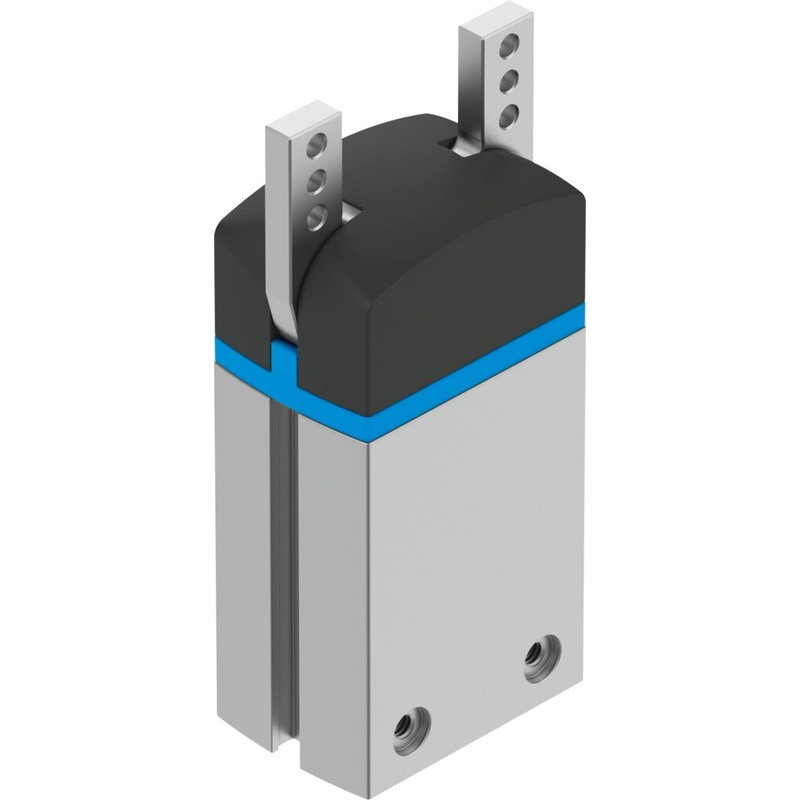

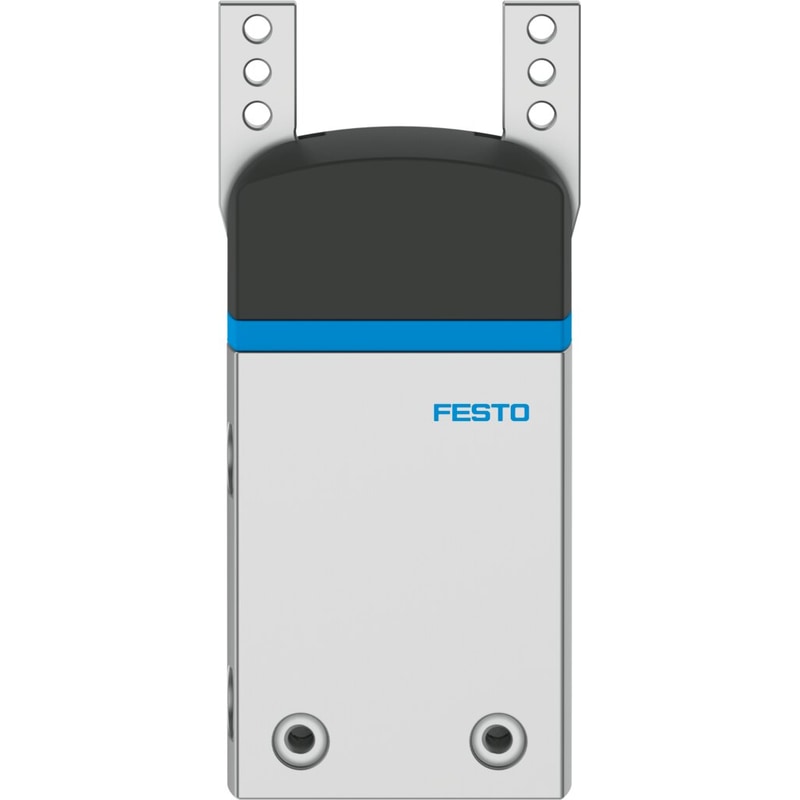

| Size | 25 |
|---|---|
| Max. interchangeability | ≤0.2 mm |
| Max. opening angle | 40 deg |
| Rotational symmetry | ≤0.2 mm |
| Pneumatic gripper repetition accuracy | ≤0.04 mm |
| Number of gripper jaws | 2 |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Gripper function | Angle |
| Structural design | Lever |
| Position sensing | For proximity sensor |
| Symbol | 00991894 |
| Operating pressure | 2 bar … 8 bar |
| Max. operating frequency of pneumatic gripper | ≤3 Hz |
| Min. opening time at 6 bar | 64 ms |
| Min. closing time at 6 bar | 80 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper are excluded from use. Circuit boards, Lines, electrical push-in connectors and Coils Metals with more than 1% copper as an alloy component are excluded from use. Exceptions are printed circuit boards, cables, el |
| Ambient temperature | 5 °C … 60 °C |
| Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 386 Ncm |
| Total gripping torque at 6 bar, closing | 356 Ncm |
| Mass moment of inertia | 0.62 kgcm² |
| Maximum force on gripper jaw Fz, static | 90 N |
| Maximum torque on gripper jaw, Mx static | 3.6 Nm |
| Maximum torque on gripper jaw, My static | 3.6 Nm |
| Maximum torque on gripper jaw, Mz static | 3.6 Nm |
| Product weight | 258 g |
| Type of mounting | Via through-hole and centering sleeve |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Cover cap material | PA |
| Housing material | Hard-anodized |
| Gripper jaw material | High-alloy steel |
| Weight | 0.707684 lbs |
|---|---|
| Dimensions | 2.165354 × 2.165354 × 1.299213 in |
| Size | 25 |
| Max. interchangeability | ≤0.2 mm |
| Max. opening angle | 40 deg |
| Rotational symmetry | ≤0.2 mm |
| Pneumatic gripper repetition accuracy | ≤0.04 mm |
| Number of gripper jaws | 2 |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Gripper function | Angle |
| Structural design | Lever |
| Position sensing | For proximity sensor |
| Symbol | 00991894 |
| Operating pressure | 2 bar … 8 bar |
| Max. operating frequency of pneumatic gripper | ≤3 Hz |
| Min. opening time at 6 bar | 64 ms |
| Min. closing time at 6 bar | 80 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper are excluded from use. Circuit boards, Lines, electrical push-in connectors and Coils Metals with more than 1% copper as an alloy component are excluded from use. Exceptions are printed circuit boards, cables, el |
| Ambient temperature | 5 °C … 60 °C |
| Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 386 Ncm |
| Total gripping torque at 6 bar, closing | 356 Ncm |
| Mass moment of inertia | 0.62 kgcm² |
| Maximum force on gripper jaw Fz, static | 90 N |
| Maximum torque on gripper jaw, Mx static | 3.6 Nm |
| Maximum torque on gripper jaw, My static | 3.6 Nm |
| Maximum torque on gripper jaw, Mz static | 3.6 Nm |
| Product weight | 258 g |
| Type of mounting | Via through-hole and centering sleeve |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Cover cap material | PA |
| Housing material | Hard-anodized |
| Gripper jaw material | High-alloy steel |
