| Pneumatic tubing test conditions | Suitability for energy chains: >5 million cycles as per FN 942021 |
|---|---|
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Outside diameter | 8 mm |
| Bending radius relevant for flow rate | 37 mm |
| Inside diameter | 5.5 mm |
| Min. bending radius | 20 mm |
| Type code | PUN-CM |
| Temperature-dependent operating pressure | -0.95 bar … 10 bar |
| Surface resistance | 0.01 MOhm … 10 MOhm |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Ambient temperature | -35 °C … 60 °C |
| Product weight by length | 0.0368 kg/m |
| Pneumatic connection | For plug connection outside diameter 8 mm |
| Color | Black |
| Shore hardness | D 52 +/-3 |
| Note on materials | Free of copper and PTFE |
| Material of pneumatic tubing | TPE-U(PU) |

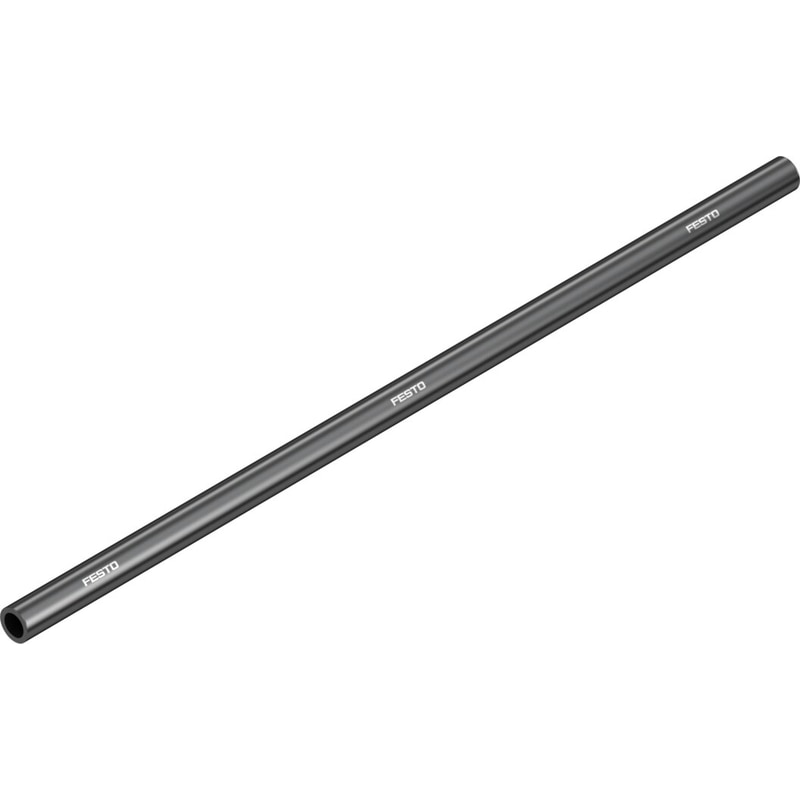

PUN-CM-8-SW Plastic tubing (Pack of 50)
$539.00
