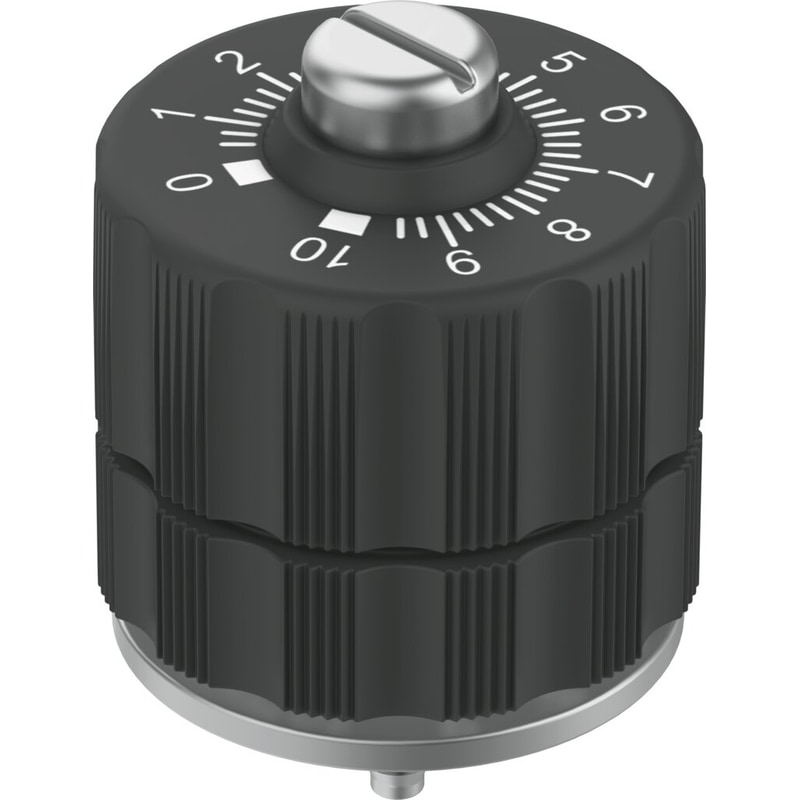

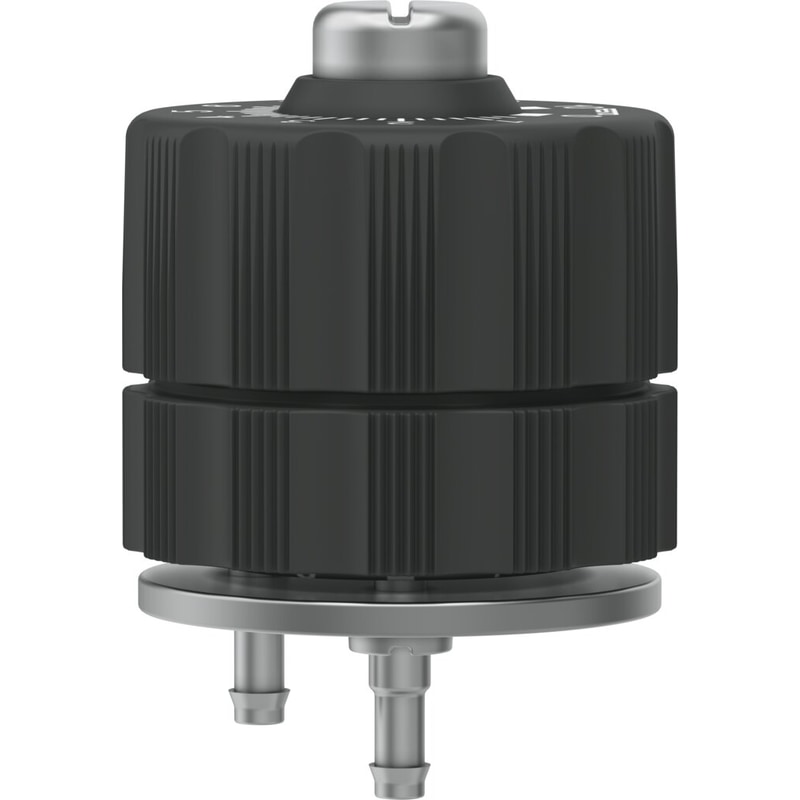

precision one-way flow control valve GRP-160-PK-4 Serves for precise adjustment of the flow rate, with non-return function. Valve function=One-way flow control function, Pneumatic connection, port 1=PK-4, Pneumatic connection, port 2=PK-4, Type of actuation=manual, Adjusting element=Rotary knob with scale
Valve function | One-way flow control function |
---|---|
Pneumatic connection, port 1Â | PK-4 |
Pneumatic connection, port 2Â | PK-4 |
Type of actuation | manual |
Adjusting element | Rotary knob with scale |
Mounting type | Front panel installation |
Standard nominal flow rate in flow control direction | 75.8 l/min |
Standard nominal flow rate in non-return direction | 245 l/min |
Operating pressure | 0 … 8 bar |
Ambient temperature | ‘-10 … 50 °C |
Material housing | PA-reinforced |
Assembly position | Any |
Operating pressure from 2 to 1Â | 0 … 8 bar |
