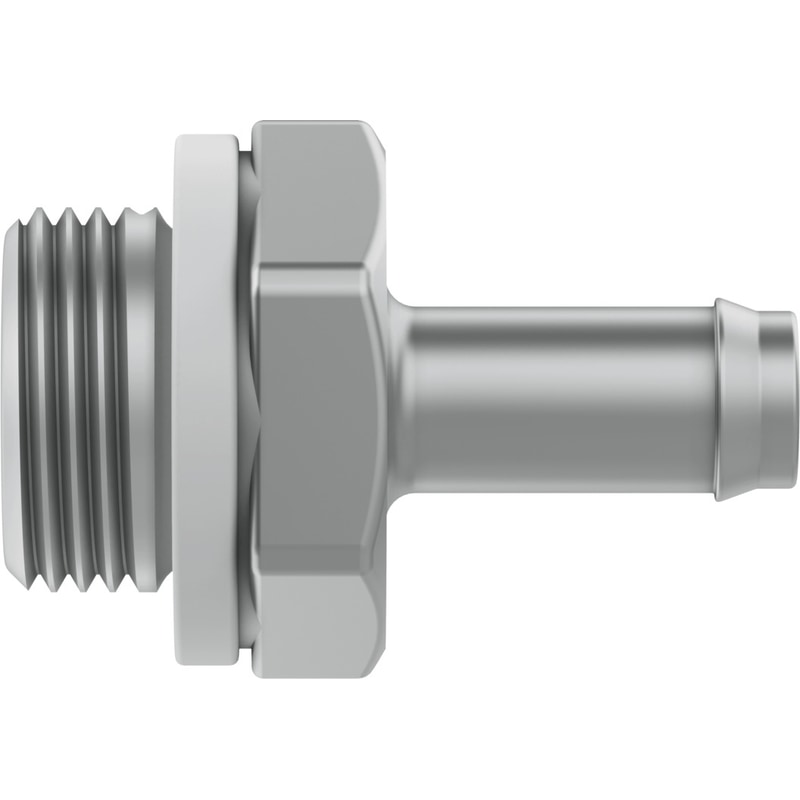

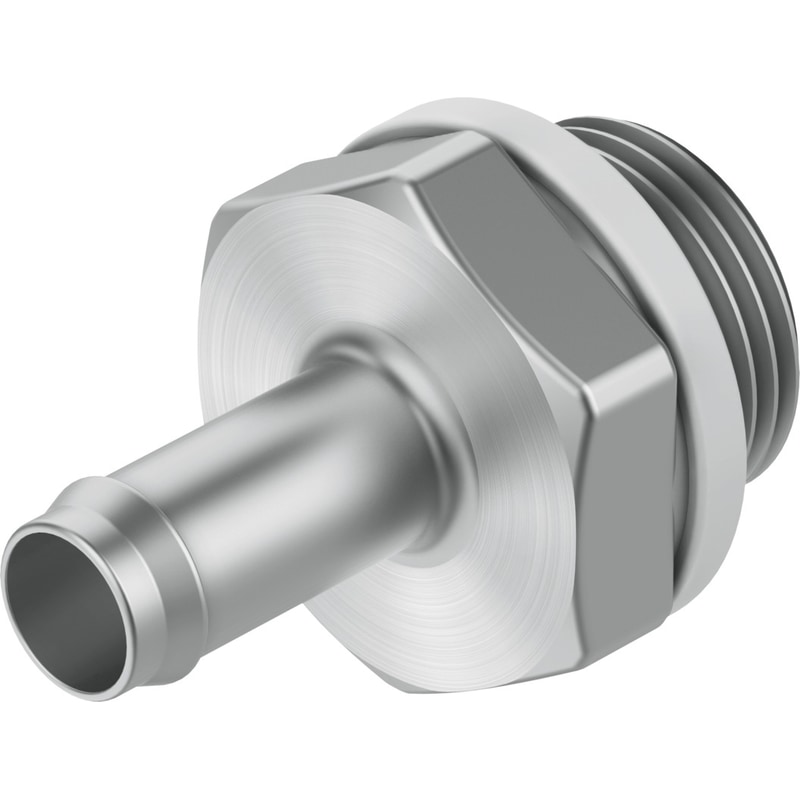

barbed fitting CN-3/8-PK-6 For plastic tubing PAN, PUN, PP, PU, PR, with sealing ring Nominal size=5,3 mm, Type of seal on screw-in stud=Sealing ring, Operating pressure complete temperature range=-0,95 – 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Fitting Type | Barbed Straight |
|---|---|
| Nominal size | 5.3 mm |
| Type of seal on screw-in stud | Sealing ring |
| Operating pressure complete temperature range | ‘-0.95 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Ambient temperature | 0 … 60 °C |
| connection 1Â | Male thread G3/8 |
| connection 2Â | For tubing outside diameter 8 mm |
| Materials note | Conforms to RoHS |
| Material housing | Aluminium |
