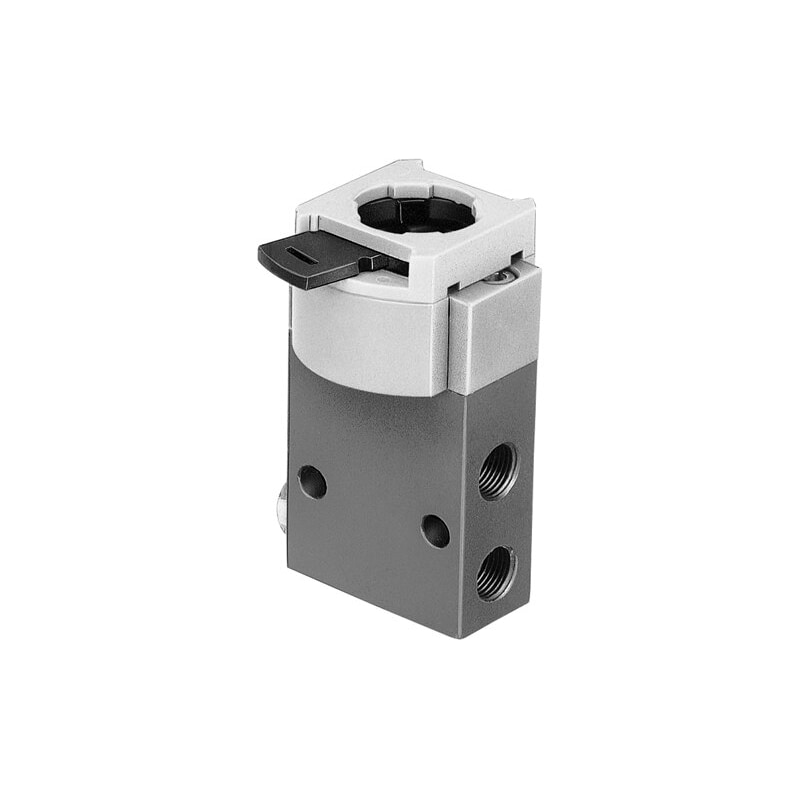

front panel valve SVOS-3-1/8 Valve function=3/2 open, monostable, Type of actuation=mechanical, Standard nominal flow rate=120 l/min, Operating pressure=3,5 – 8 bar, Design structure=Piston seat
| Valve function | 3/2 open, monostable |
|---|---|
| Type of actuation | mechanical |
| Standard nominal flow rate | 120 l/min |
| Operating pressure | 3.5 … 8 bar |
| Design structure | Piston seat |
| Type of reset | mechanical spring |
| Sealing principle | soft |
| Assembly position | Any |
| Type of piloting | direct |
| Flow direction | non reversible |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Ambient temperature | ‘-10 … 60 °C |
| Actuating force | 8 N |
