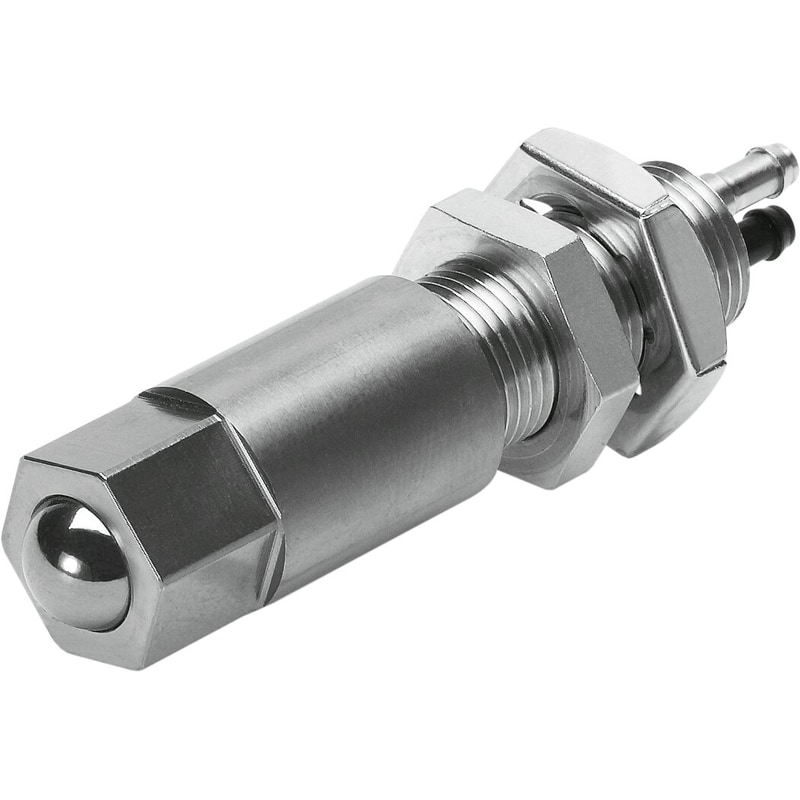

limit switch SDK-4-PK-3 With ball actuator Valve function=3/2 closed, monostable, Type of actuation=mechanical, Standard nominal flow rate=16 l/min, Operating pressure=0 – 8 bar, Design structure=Spherical seat
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | mechanical |
| Standard nominal flow rate | 16 l/min |
| Operating pressure | 0 … 8 bar |
| Design structure | Spherical seat |
| Type of reset | mechanical spring |
| Nominal size | 0.6 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Type of piloting | direct |
| Flow direction | non reversible |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
