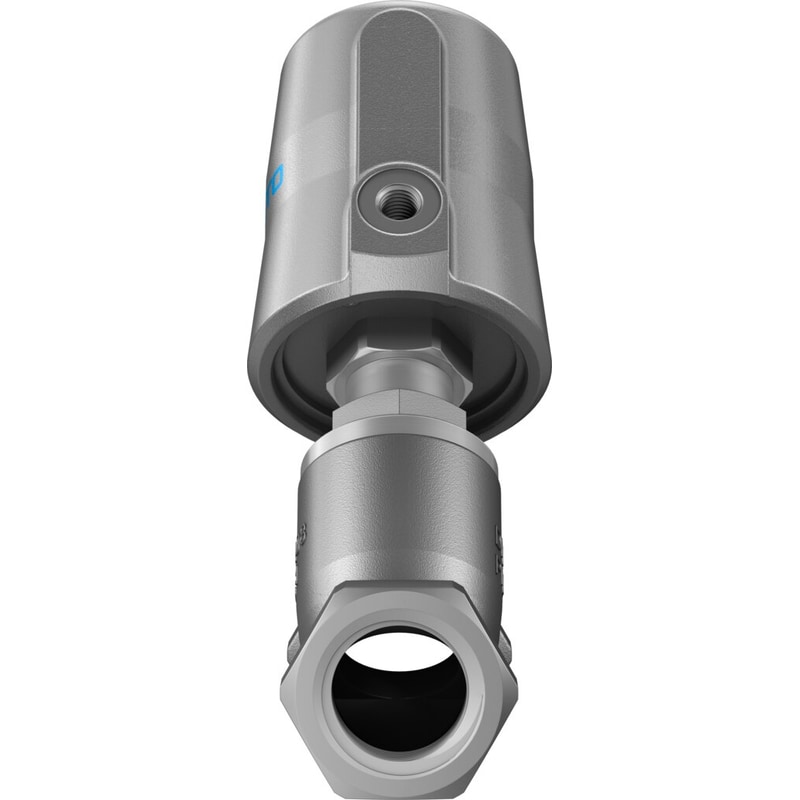

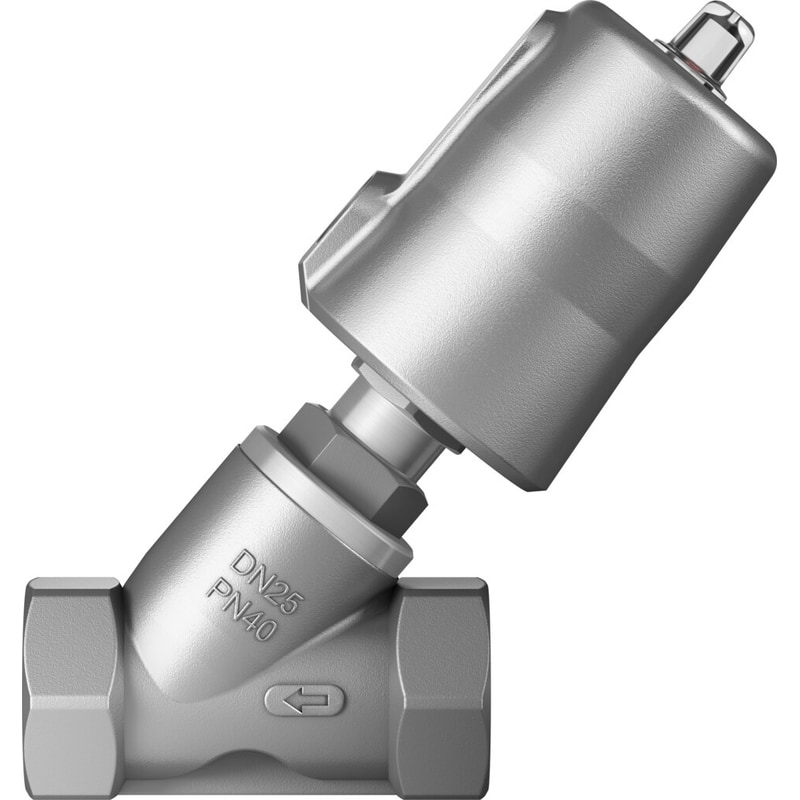

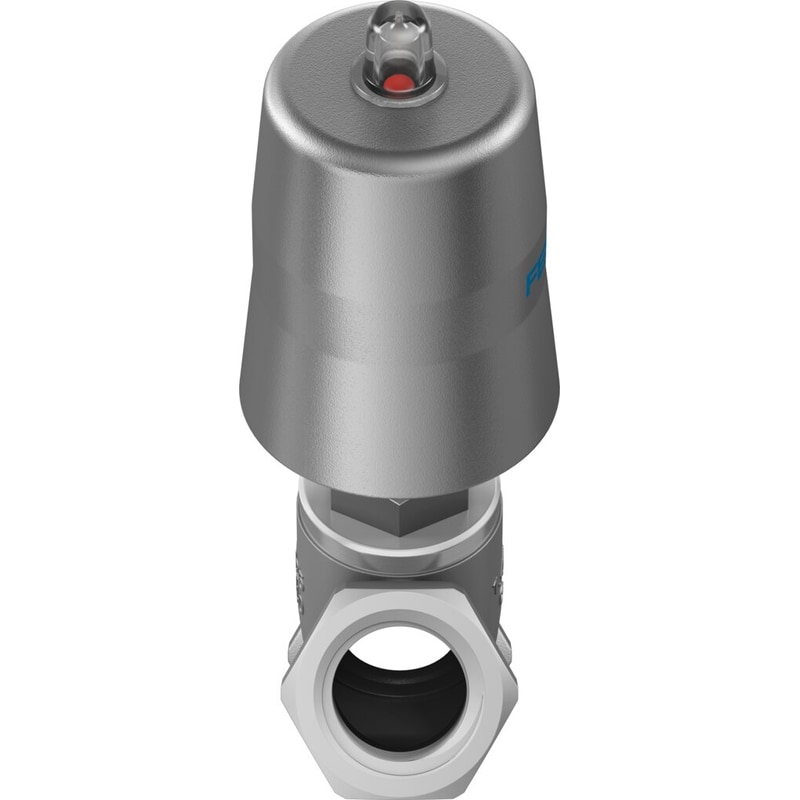

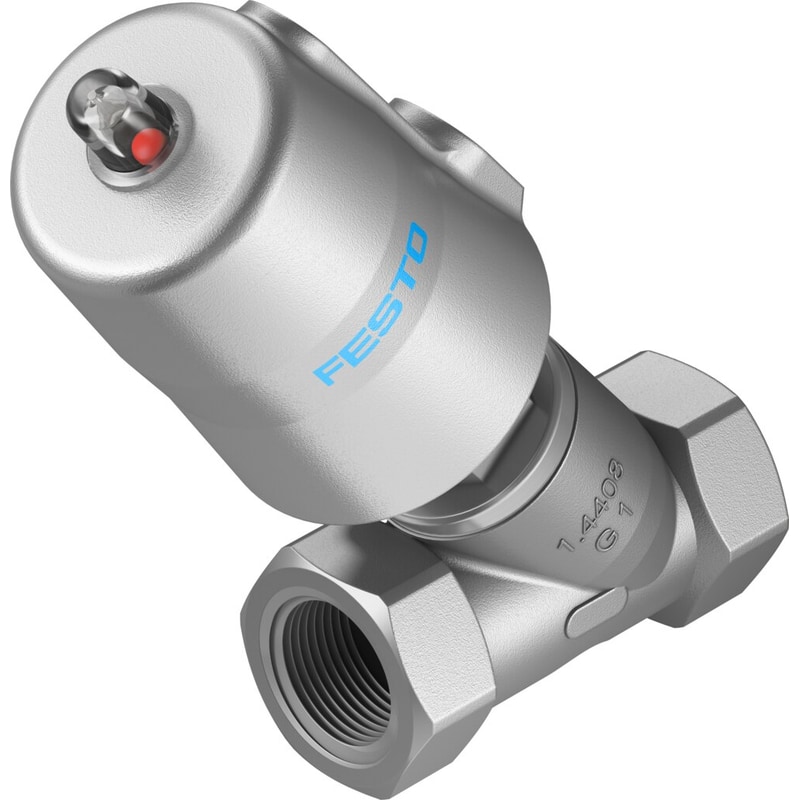

VZXF-L-M22C-M-A-G1-240-M1-V4V4T-50-16

$356.14

SKU: 1002516
UNSPSC: 40141603
GTIN: 4052568226176

SKU: 1002516 Category: Brand:

The rugged, all-purpose VZXF angle seat valve is ideal for any application requiring open-loop control of media flows—whether gaseous, liquid, or highly viscous.

Type codeVZXF
DesignPoppet valve with piston actuator
Actuation typePneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingLine installation
Cable connectionThreaded sleeve G3/4 as per DIN ISO 228
Nominal width16 mm
Valve function2/2, closed, monostable
Flow directionNon-reversible
Medium pressure0 bar … 16 bar
Nominal pressure of fitting PN16
Exhaust air functionWithout flow control option
Reset methodMechanical spring
Type of controlExternally controlled
Pneumatic connectionInternal thread G1/8
Operating pressure6 bar … 10 bar
Symbol00991367
MediumInert gasFiltered compressed air, 200 µm filter meshVapor
Flow directionAbove valve seat, for gaseous media
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity600 mm²/s
Temperature of medium-10 °C … 80 °C
Ambient temperature-10 °C … 60 °C
Flow rate Kv6.7 m³/h
Note on materialsContains paint-wetting impairment substancesRoHS-compliant
Valve housing materialRed brass
Material number, fitting housingCC499K
Spindle seal materialNBR
Seat seal materialPTFE
Product weight1300 g
Corrosion resistance class (CRC)1 – Low corrosion stress
Drive housing materialBrass
