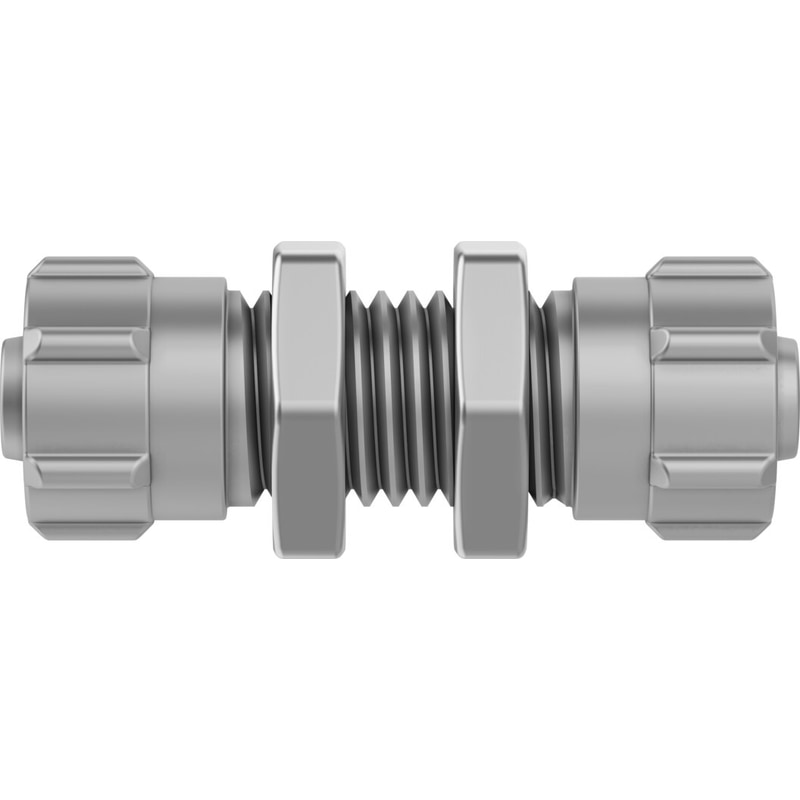

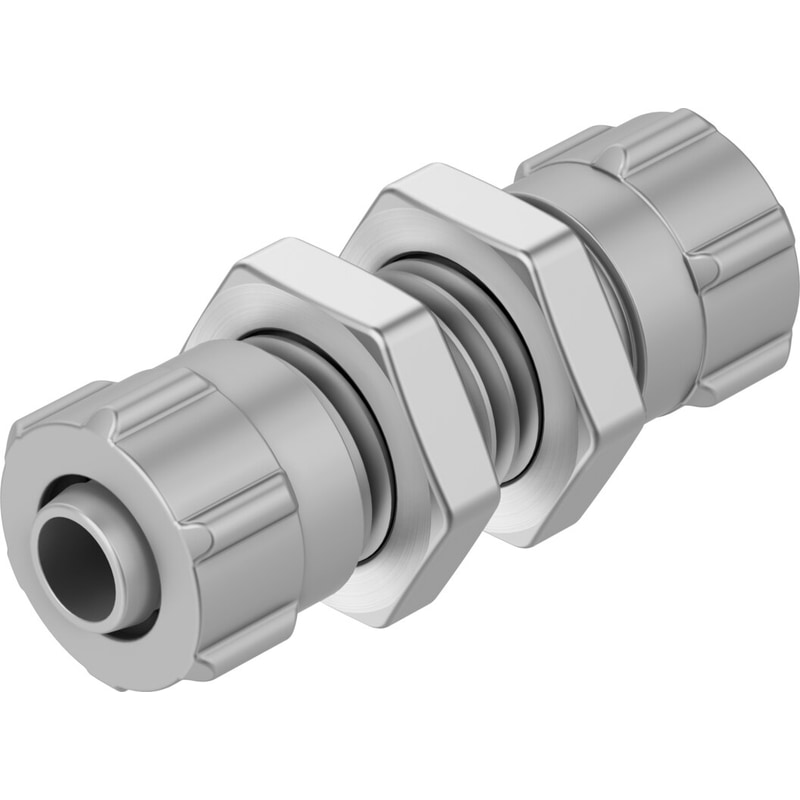

bulkhead quick connector SCK-PK-9 Metal version. Nominal size=8 mm, Assembly position=Any, Pneumatic connection, port 1=for barbed connector internal diameter 9 mm with nut, Materials note=(* Free of copper and PTFE, * Conforms to RoHS), Materials information, housing=Aluminium
| Fitting Type | n/a |
|---|---|
| Nominal size | 8 mm |
| Assembly position | Any |
| connection 1Â | for barbed connector internal diameter 9 mm with nut |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material housing | Aluminium |
| Weight | 0.096474 lbs |
|---|---|
| Dimensions | 3.228346 × 1.889764 × 0.944882 in |
| Pneumatic connection, port 1 | For barbed fitting inside diameter of 9 mm with union nut |
| Pneumatic connection, port 2 | For barbed fitting inside diameter of 9 mm with nut |
| Ambient temperature | -40?C – 150?C |
