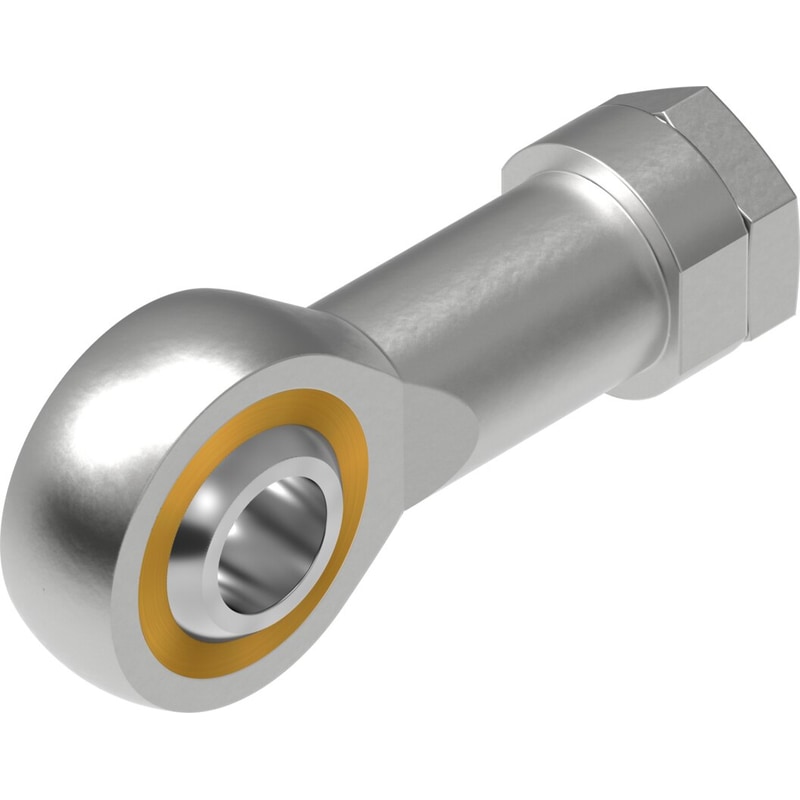

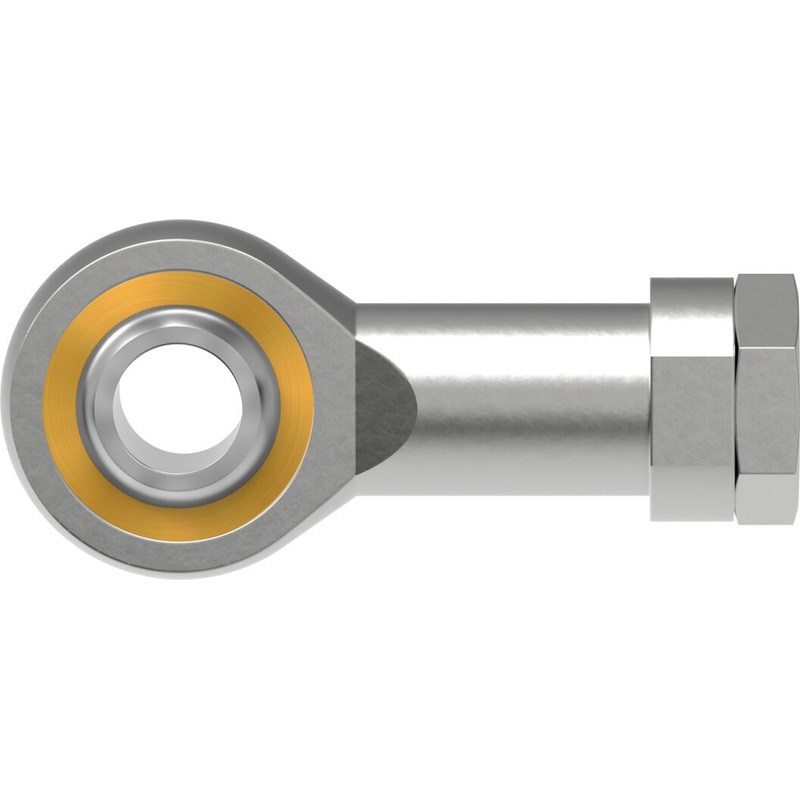

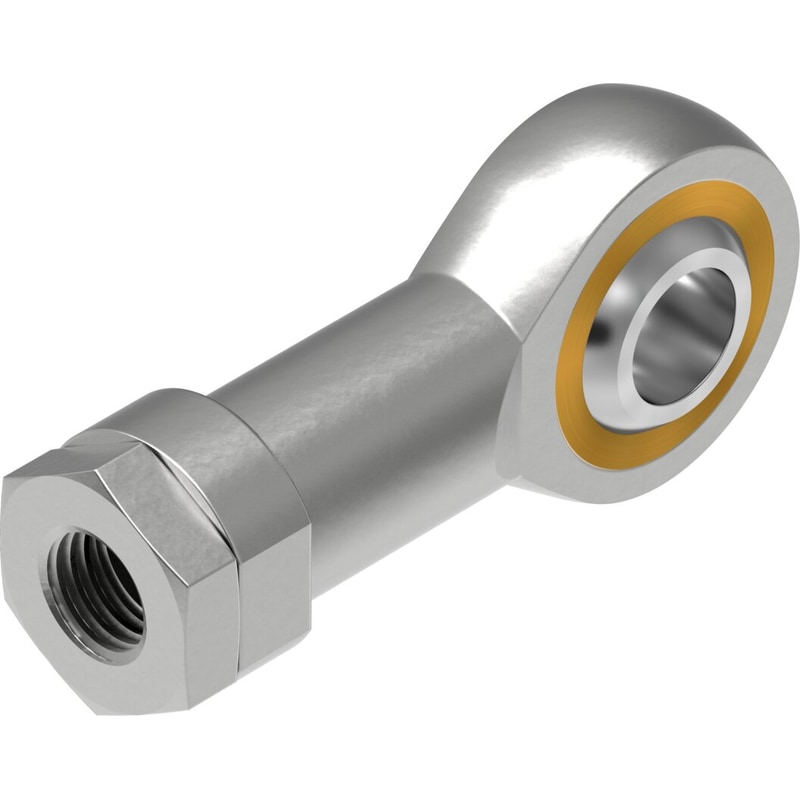

rod eye SGS-M10 With hexagonal nut, for spherical swivelling cylinder mounting (piston rod side) as per DIN ISO 8139. Size=M10, Based on the standard=ISO 12240-4, Corrosion resistance classification CRC=2 – Moderate corrosion stress, Ambient temperature=-40 – 150 °C, Product weight=88 g
| Size | M10 |
|---|---|
| Based on the standard | ISO 12240-4 |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-40 … 150 °C |
| Product weight | 88 g |
| Materials note | Conforms to RoHS |
| Material of outer ring | Brass |
| Material housing | SteelGalvanised |
| Material of inner ring | Steel |
| Material nut | SteelGalvanised |
