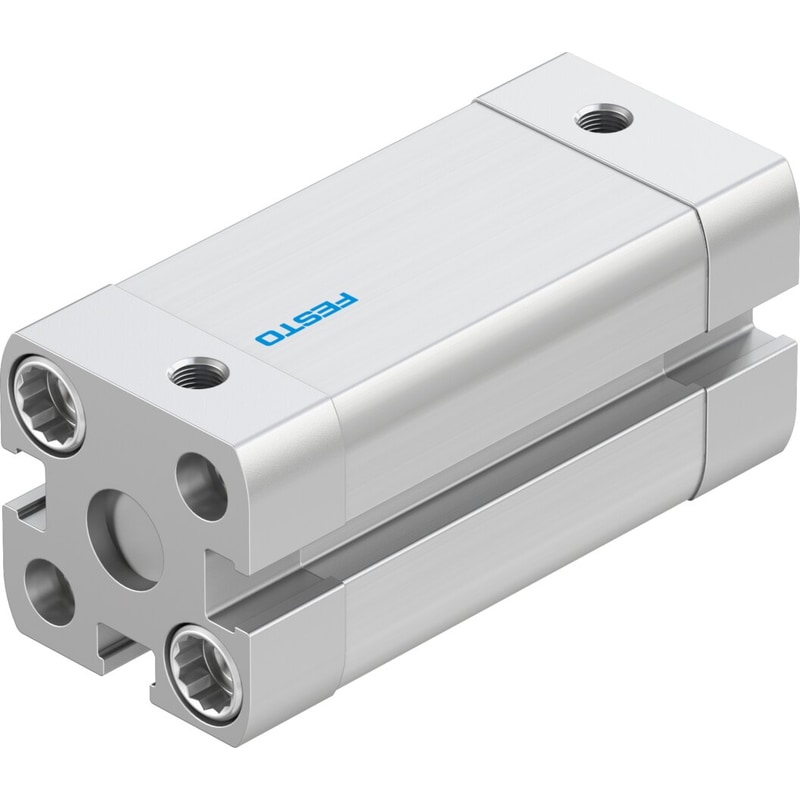

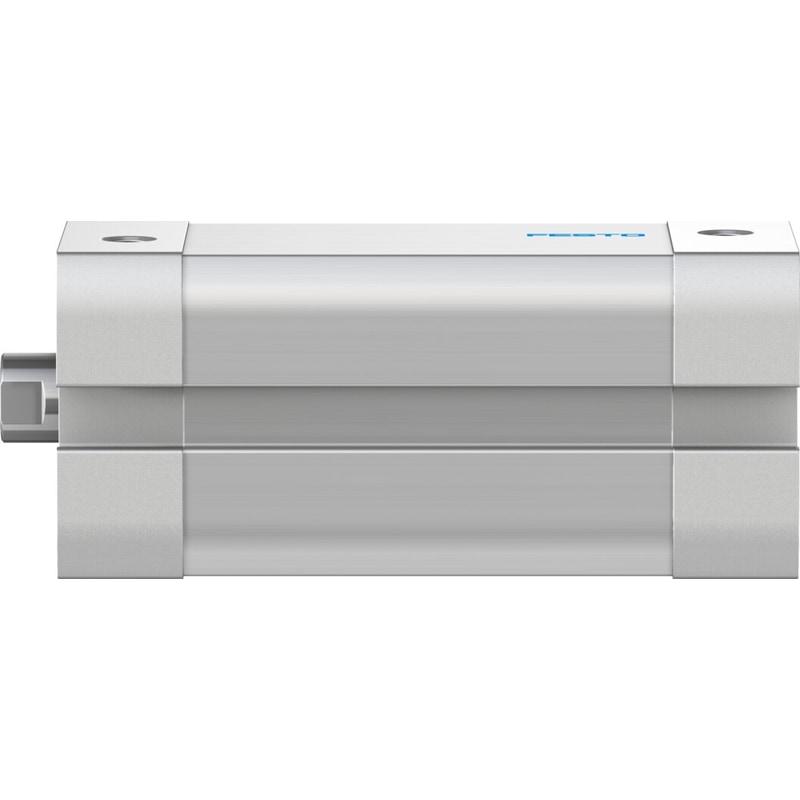

| Stroke | 35mm |
|---|---|
| Piston diameter | 16 mm |
| Piston rod thread | M4 |
| Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Piston rod end | Internal thread |
| Position sensing | For proximity sensor |
| Symbol | 00991217 |
| Variants | Piston rod at one end |
| Operating pressure | 0.1MPa |
| Operating pressure | 1bar |
| Operating pressure | 14.5psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C |
| Impact energy in the end positions | 0.15J |
| Theoretical force at 6 bar, retracting | 90N |
| Theoretical force at 6 bar, advancing | 121N |
| Moving mass at 0Â mm stroke | 15g |
| Additional moving mass per 10Â mm stroke | 4g |
| Basic weight with 0Â mm stroke | 79g |
| Additional weight per 10Â mm stroke | 14g |
| Type of mounting | Optionally: |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Weight | 0.257787 lbs |
|---|---|
| Dimensions | 2.952756 × 1.181102 × 1.181102 in |
| Mode of operation | double-acting |
| Piston diameter | 16 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 121 N |
| Stroke | 35 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
