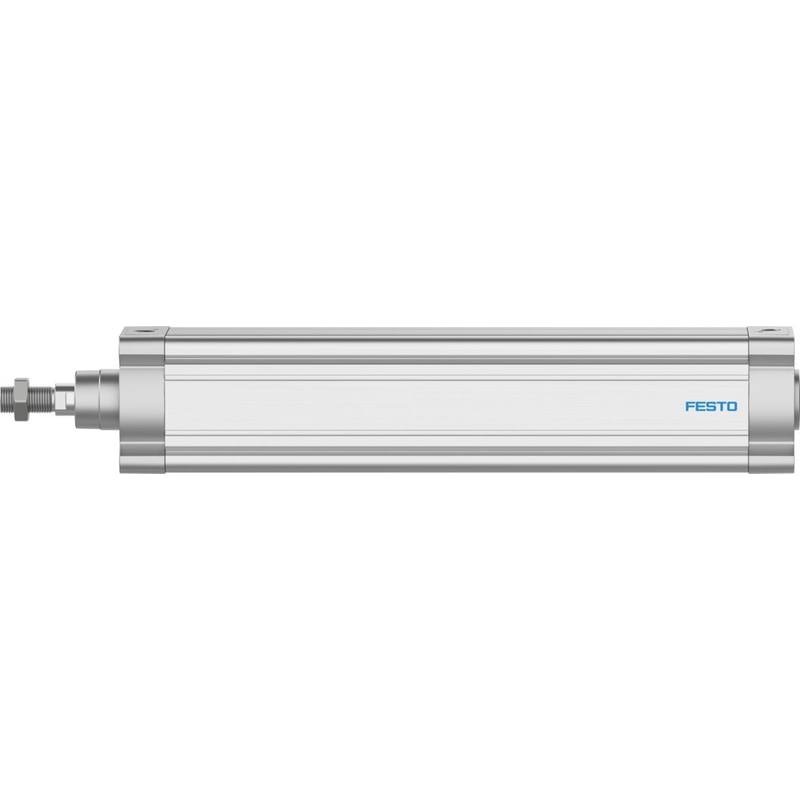

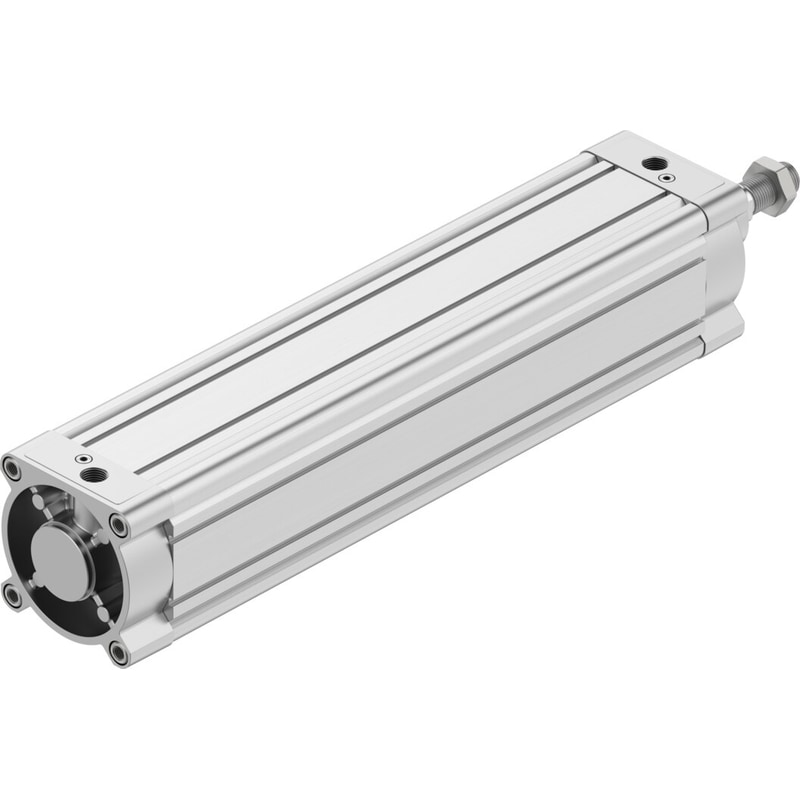

| Stroke | 500mm |
|---|---|
| Piston diameter | 125 mm |
| Piston rod thread | M27x2 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Conforms to standard | ISO 15552 |
| Piston rod end | External thread |
| Structural design | Piston |
| Position sensing | For proximity sensor |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Operating pressure | 0.02MPa |
| Operating pressure | 0.2bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C |
| Impact energy in the end positions | 3.3J |
| Cushioning length | 45mm |
| Theoretical force at 6 bar, retracting | 6881N |
| Theoretical force at 6 bar, advancing | 7363N |
| Moving mass at 0Â mm stroke | 2245g |
| Additional moving mass per 10Â mm stroke | 63g |
| Basic weight with 0Â mm stroke | 6611g |
| Additional weight per 10Â mm stroke | 151g |
| Type of mounting | Optionally: |
| Pneumatic connection | G1/2 |
| Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) |
| Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel |
| Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Nut material | Steel, galvanized |
| Material of bearing | POM |
| Flange screws material | Steel, galvanized |
| Weight | 35.273962 lbs |
|---|---|
| Dimensions | 31.299213 × 5.314961 × 5.314961 in |
| Mode of operation | double-acting |
| Piston diameter | 125 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 7363 N |
| Stroke | 500 mm |
| Cushioning | adjustable at both ends, Pneumatic cushioning |
