| Outside diameter | 16 mm |
|---|---|
| Bending radius relevant for flow rate | 88 mm |
| Inside diameter | 11 mm |
| Min. bending radius | 38 mm |
| Application note | Tubing without printing TPE-U Ether based |
| Symbol | 00997424 |
| Tubing characteristics | suitability for energy chains |
| Operating pressure for entire temperature range | -0.095 MPa … 0.6 MPa |
| Operating pressure for entire temperature range | -0.95 bar … 6 bar |
| Operating pressure for entire temperature range | -13.775 psi … 87 psi |
| Temperature-dependent operating pressure | -0.095 MPa … 1 MPa |
| Temperature-dependent operating pressure | -0.95 bar … 10 bar |
| Temperature-dependent operating pressure | -13.775 psi … 145 psi |
| Information on operating pressure | Water: max. 0.65 MPa at 20°C, max. 0.45 MPa at 40°C, max. 0.3 MPa at 60°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Wasser (flüssig, eisfrei) |
| Material fire test | UL94 HB |
| LABS conformity | VDMA24364-B2-L |
| For use in the food industry | See declaration of conformity |
| Ambient temperature | -35 °C … 60 °C |
| Product weight by length | 0.122 kg/m |
| Pneumatic connection | For plug connection outside diameter 16 mm |

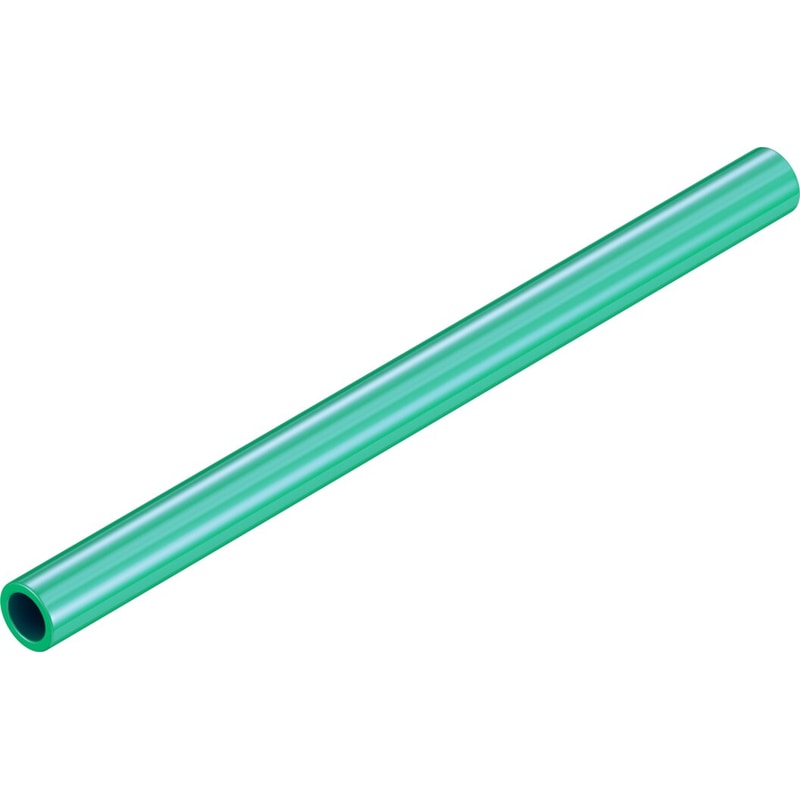

| Color | Green |
| Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant |
| Material of pneumatic tubing | TPE-U(PU) |
| Weight | 0.294229 lbs |
|---|---|
| Dimensions | 20.07874 × 20.07874 × 6.299213 in |
| Outside diameter | 16 mm |
| Inside diameter | 11 mm |
| Temperature-dependent operating pressure | -0.95 bar – 10 bar |
| Ambient temperature | -35?C – 60?C |
