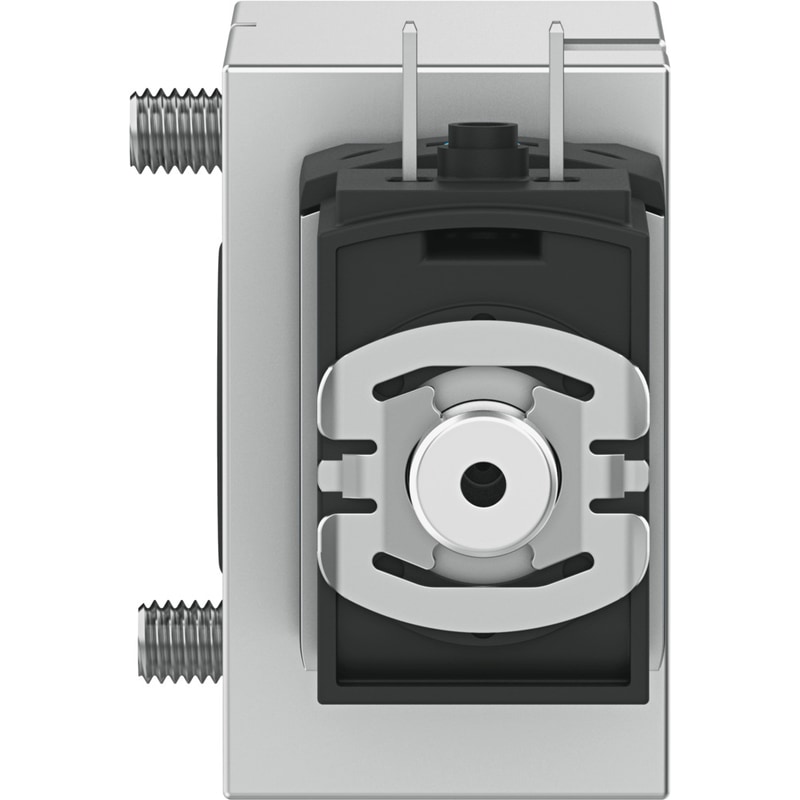

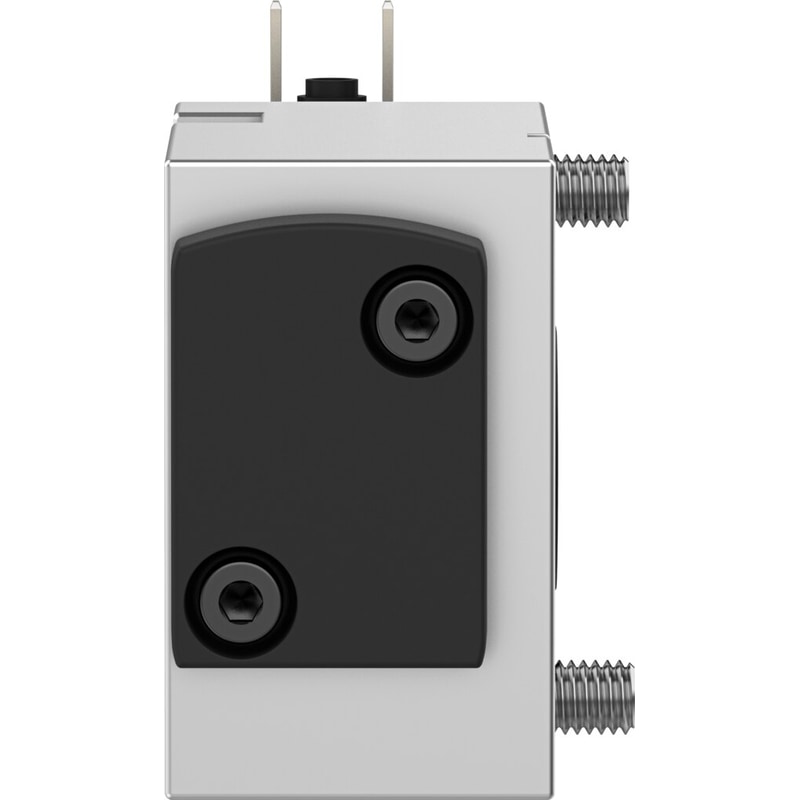

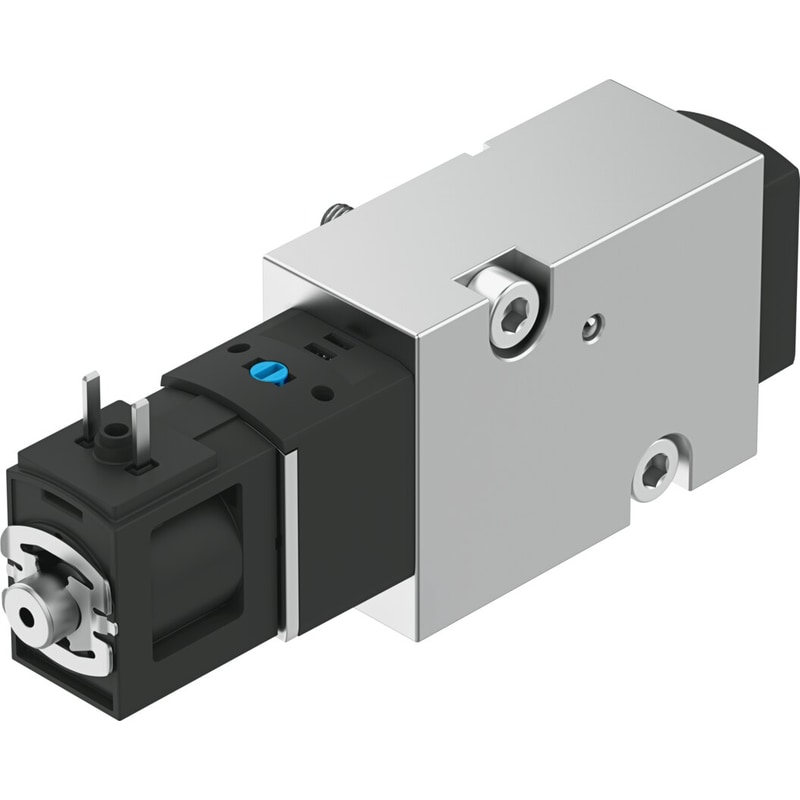

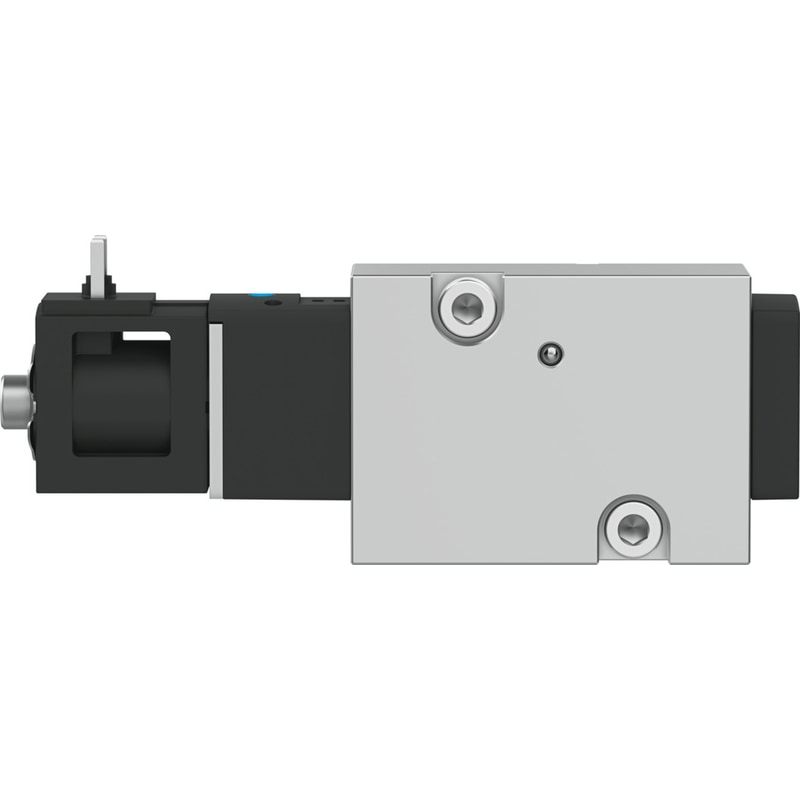

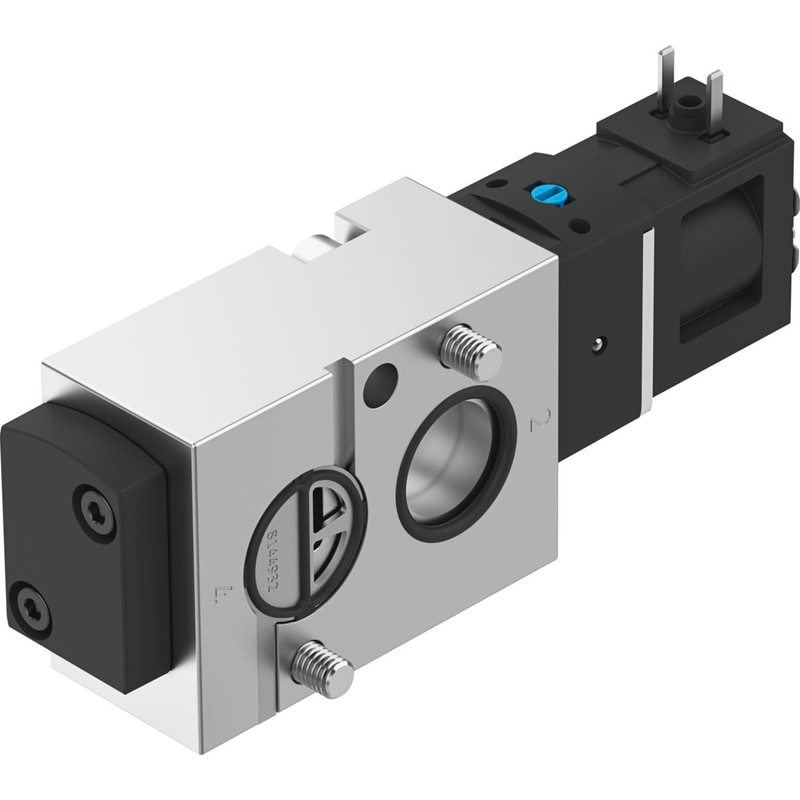

| Valve function | 5/2, monostable |
|---|---|
| Actuation type | Electrical |
| Width | 25.5mm |
| Standard nominal flow rate | 400l/min |
| Pneumatic working port | NAMUR connection diagram |
| Operating voltage | 24V DC |
| Operating pressure | 0.25MPa |
| Operating pressure | 2.5bar |
| Structural design | Piston slide with sealing ring |
| Reset method | Mechanical spring |
| Degree of protection | IP65 |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | Detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |
| Symbol | 00997386 |
| Lap | Overlap |
| b-value | 0.3 |
| C value | 2.1l/sbar |
| Standard nominal flow rate, exhaust air return 4->3 | 100l/min |
| Switching time off | 50ms |
| On switching time | 50ms |
| Duty cycle | 100% |
| Coil characteristics | 24 V DC: 2.4 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C |
| Temperature of medium | -20°C |
| Ambient temperature | -20°C |
| Product weight | 220g |
| Electrical connection | Form C |
| Type of mounting | With through-hole |
| Venting hole connection | Not ducted |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | NAMUR connection diagram |
| Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | NAMUR connection diagram |
| Pneumatic connection 5 | G1/8 |
| Note on materials | RoHS-compliant |
| Cover material | PA-reinforced |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy |
| Manual override material | PA-reinforced |
| Material of piston | Wrought aluminum alloy |
| Material of screws | High-alloy stainless steel |
| Weight | 0.521702 lbs |
|---|---|
| Dimensions | 4.724409 × 2.362205 × 1.181102 in |
