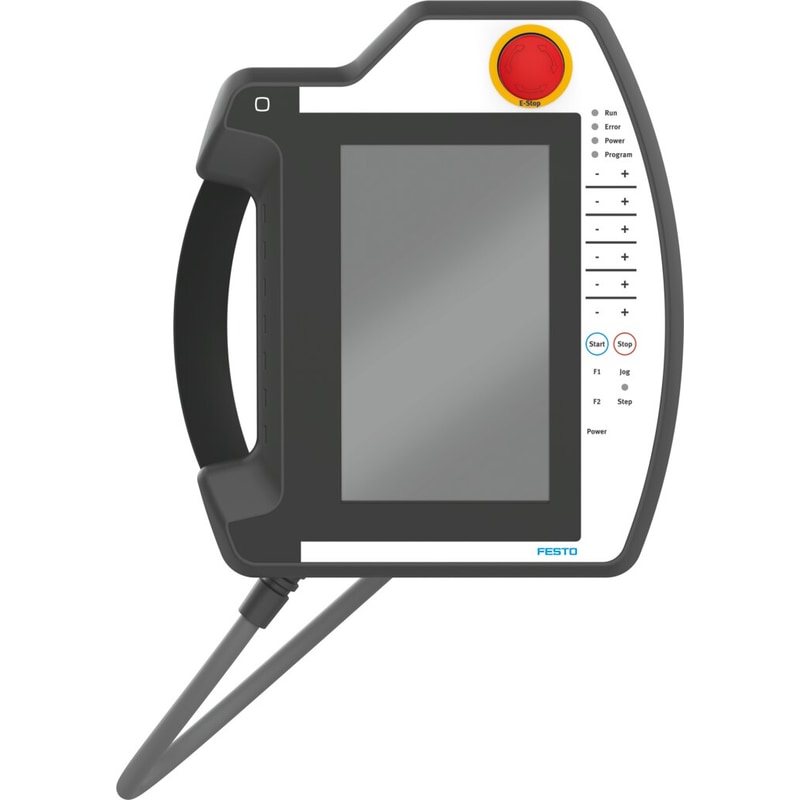

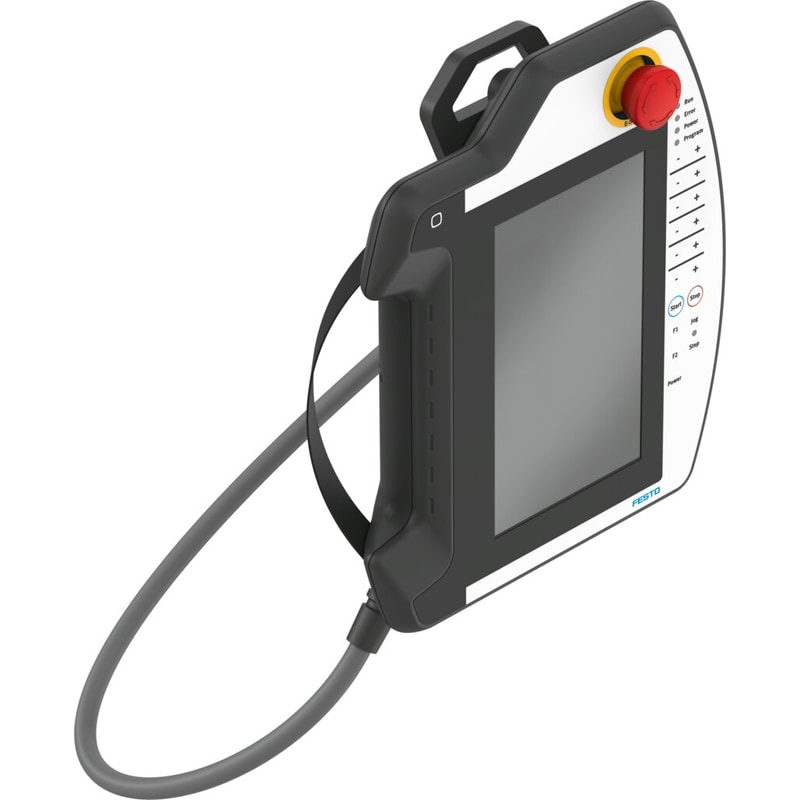

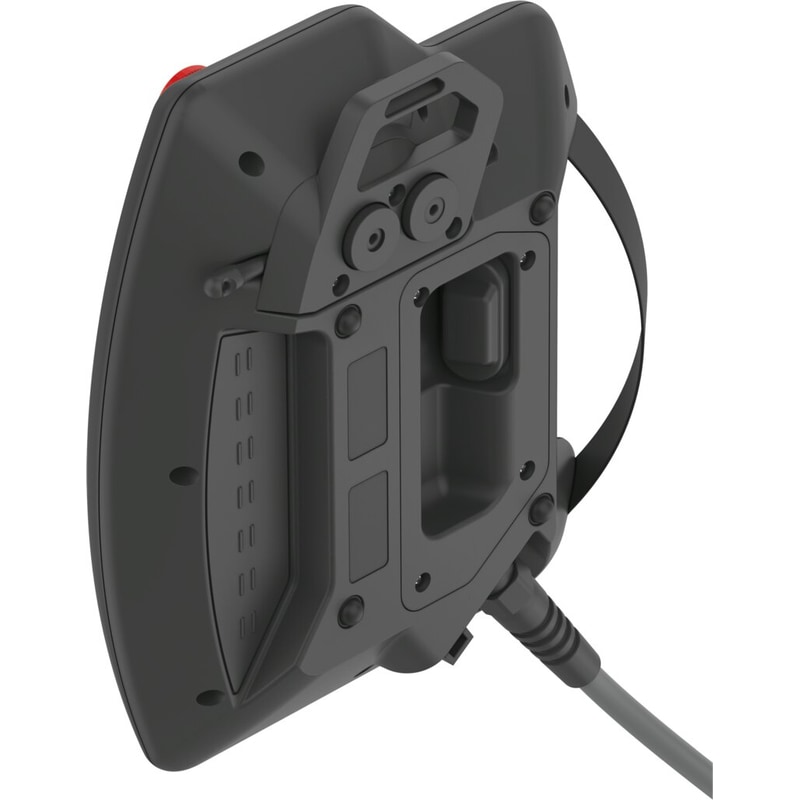

| No. of function keys | 20 |
|---|---|
| Number of system LEDs | 5 |
| Display | LCD display With backlighting |
| Display properties | Touchscreen |
| Display size | 7″ |
| Control elements | Touch sensitive keyboard Release control unit Emergency stop button |
| Input current | <= 5.6 A |
| DC operating voltage range | 19.2 V … 30 V |
| Display resolution | WSVGA, 600 x 1024 pixels |
| Certification | CCC RCM compliance mark c UL us – Listed (OL) |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
| Certificate issuing authority | UL E239998 |
| Storage temperature | -20 °C … 70 °C |
| Relative air humidity | 5 – 95 % |
| Degree of protection | IP65 |
| Note on degree of protection | When USB cover flap is closed In mounted state |
| Protection class | III |
| Ambient temperature | 0 °C … 40 °C |
| Product weight | 950 g |
| Electrical power consumption | 12 W |
| IP address allocation | FCT DHCP |
| Nominal operating voltage DC | 24 V |
| Power failure buffering | 10 ms |
| Nominal altitude of use above sea level | <= 2000 m NHN |
| Power supply, function | Release control Emergency stop Power supply |
| Power supply, type of connection | Socket strip |
| Power supply, connection technology | Socket strip, 12 pins, 2 rows |
| Power supply, number of pins/wires | 12 |
| Power supply, assigned pins/wires | 6 |
| USB interface | USB 2.0, type A |
| USB interface, plug pattern | 00995868 |
| Ethernet interface, protocol | TCP/IP |
| Ethernet interface, function | Diagnostics Network connection to PLC Parameterization |
| Ethernet interface, connection type | Socket |
| Ethernet interface, connection technology | RJ45 |
| Ethernet interface, number of poles/wires | 8 |
| Ethernet interface, transmission rate | 100 Mbit/s |
| Ethernet interface, connection pattern | 00995789 |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Housing material | ABS |
| Dimensions W x L x H | 212 mm x 251 mm x 73 mm |
| Note on acceptable current load at 40°C | 10 – 1000 mA at each contact for emergency stop < 500 mA for release control unit |
| Utilization category | DC-13, emergency stop |
| Subcomponent, service-life value B10d | 0,25 Mio SP, emergency stop 1 mill. switch cycles, release control unit |
| Weight | 3.007105 lbs |
|---|---|
| Dimensions | 12.204724 × 12.204724 × 6.299213 in |
