| Application note | The product is suitable for industrial purposes only. Radio interference suppression measures may be required in residential areas. |
|---|---|

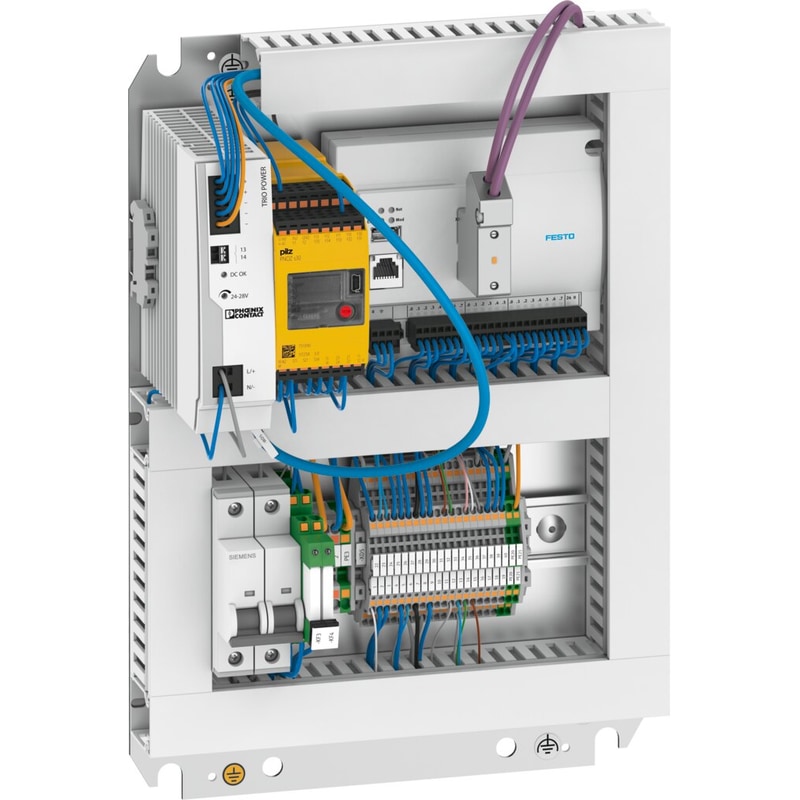

| Structural design | Mounting plate Integrated safety relay unit |
| Performance Level (PL) | Category 3, performance level d |
| Dimensions W x L x H | 135 mm x 254 mm x 375 mm |
| Fuse protection (short circuit) | Internal electronic fuse |
| Max. current consumption | 1100 mA |
| Current consumption of the secondary circuit | 5 A |
| Max. power supply | 6 A |
| Nominal operating voltage AC | 230 V |
| Mains types | TT TN IT |
| Mains frequency | 50 Hz … 60 Hz |
| Contamination level | 2 |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Storage temperature | -20 °C … 60 °C |
| Relative air humidity | Max. 50 % at 40 °C |
| Protection against direct and indirect contact | PELV Grounding of all exposed conductive parts |
| Degree of protection | IP20 |
| Ambient conditions | Interior |
| Ambient temperature | 5 °C … 40 °C |
| Nominal altitude of use above sea level | 1000 m NN |
| Product weight | 4500 g |
| Electrical connection | Spring-loaded terminal Push-in |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Weight | 17.151964 lbs |
|---|---|
| Dimensions | 24.80315 × 8.858268 × 12.992126 in |
