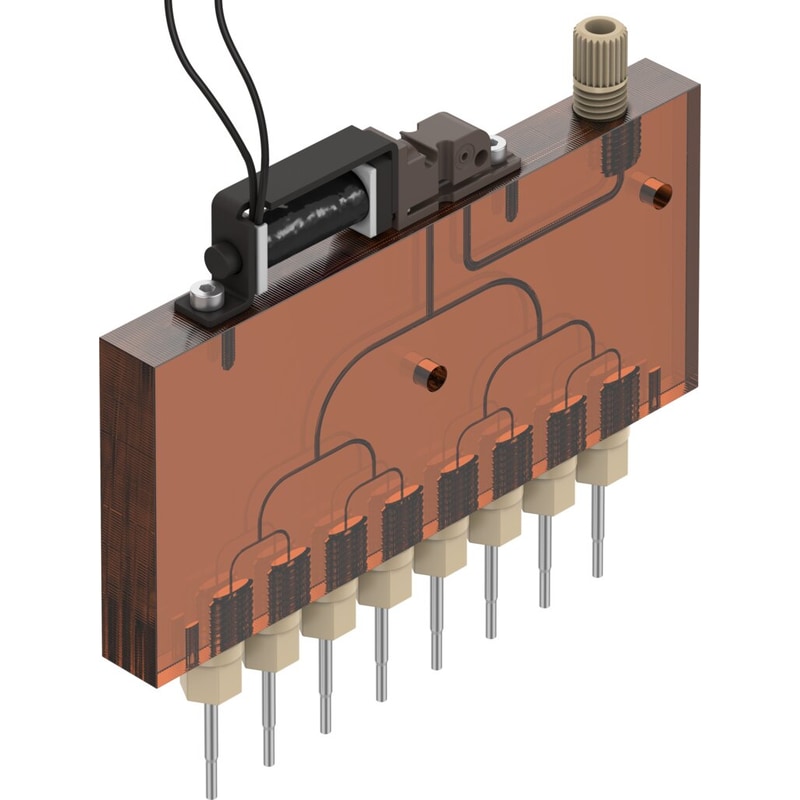

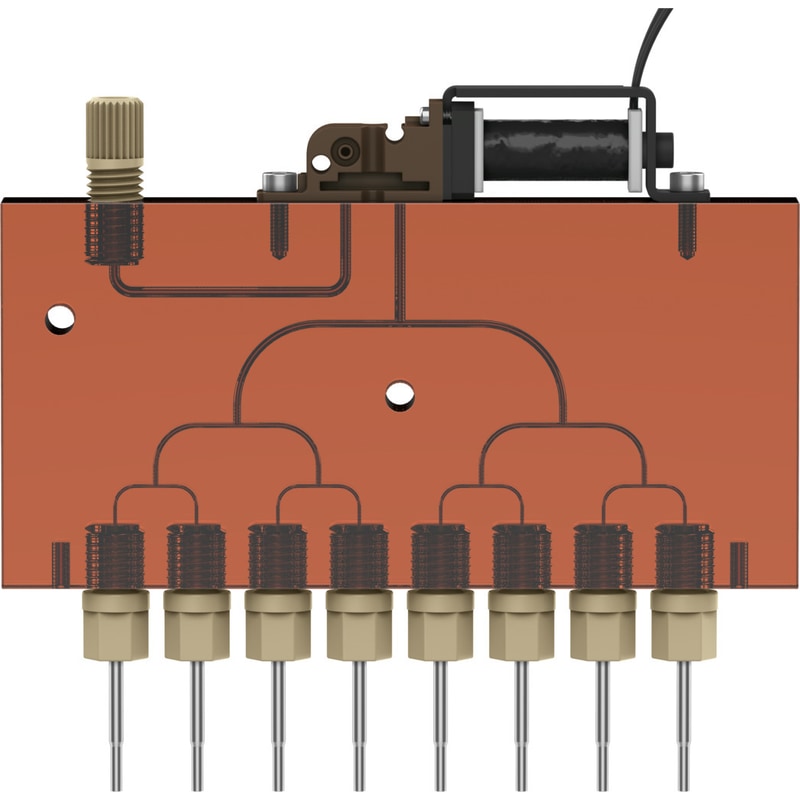

| Valve function | 2/2, closed, monostable |
|---|---|
| Operating pressure | 0MPa |
| Operating pressure | 0bar |
| Operating pressure | 0psi |
| Internal volume | 10 µl fluid space valve |
| Nominal width | 0.8mm |
| Nominal width of dosing needle | 0.3mm |
| Length of dosing needle | 30mm |
| Width dimension | 9mm |
| Sealing principle | Soft |
| Mounting position | Vertical |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Suitability for vacuum | no |
| Min. dosing volume | 1µl |
| Note on dosing volume | Depending on the configuration, environment and application |
| Typical dosing precision | ≤ 5 % tip-to-tip CV |
| Note on dosing precision | Depending on the configuration, environment and application |
| Max. switching frequency | 4Hz |
| Note on switching frequency | Dependent on the ambient temperature and installation state |
| On switching time | 7ms |
| Note on switching time on | Depending on the configuration, environment and application |
| Switching time off | 2ms |
| Note on switching time off | Depending on the configuration, environment and application |
| Duty cycle | 100% |
| Electrical power consumption | 1.8W |
| Nominal operating voltage DC | 24V |
| Permissible voltage fluctuations | +/- 10 % |
| Medium | Liquid media |
| Information on medium | Maximum particle size 20 µm |
| Application note | See application note (available on the support portal at festo.com) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | 5°C |
| Temperature of medium | 5°C |
| Degree of protection | IP30 |
| Note on degree of protection | In mounted state |
| Ambient temperature | 5°C |
| Product weight | 52g |
| Electrical connection | 2-wire |
| Cable length | 0.15m |
| Wire ends | Stripped |
| Nominal conductor cross section | AWG28 |
| Type of mounting | With through-hole for M3 screw |
| Fluid connector | Internal thread 1/4-28 UNF-2B |
| Note on fluid connector | Fitting enclosed for pneumatic tubing with 3 mm outside diameter |
| Material of dosing needle | High-alloy stainless steel |
| Material number for dosing needle | 1.4404 |
| Note on materials | RoHS-compliant |
| Materials in contact with the media | ETFE |
| Actuation type | Electrical |
| Nominal altitude of use above sea level | <= 2000 m NHN |
| Relative air humidity | 0 – 95 % |
| Weight | 0.298241 lbs |
|---|---|
| Dimensions | 8.661417 × 4.92126 × 0.984252 in |
