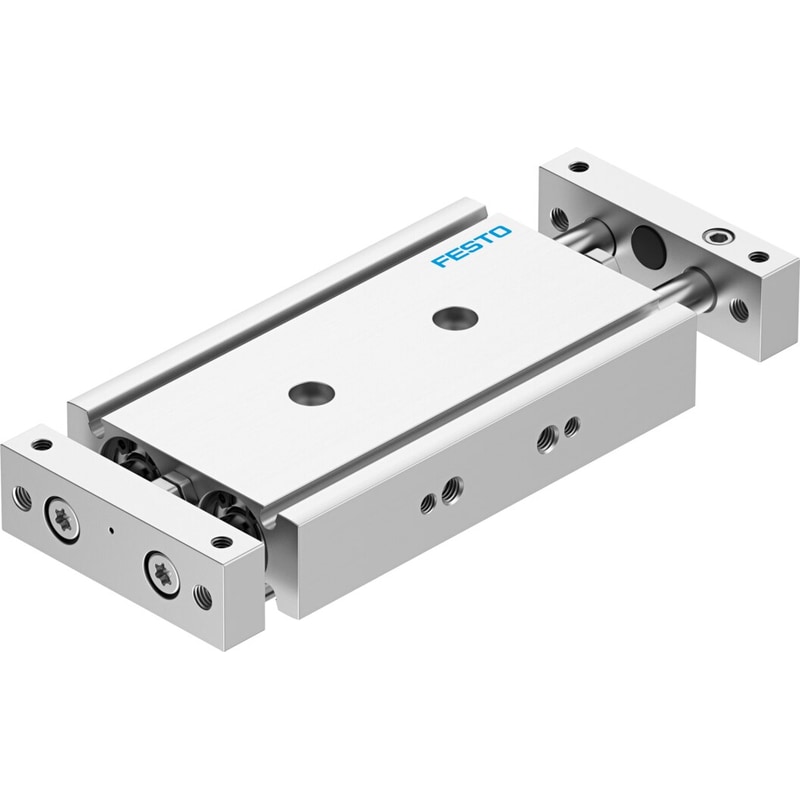

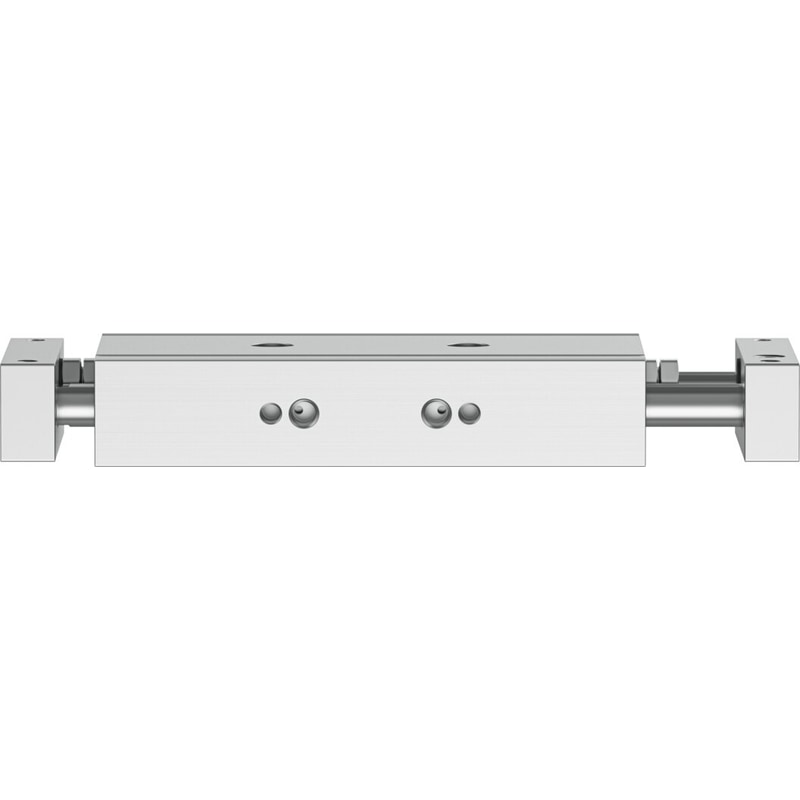

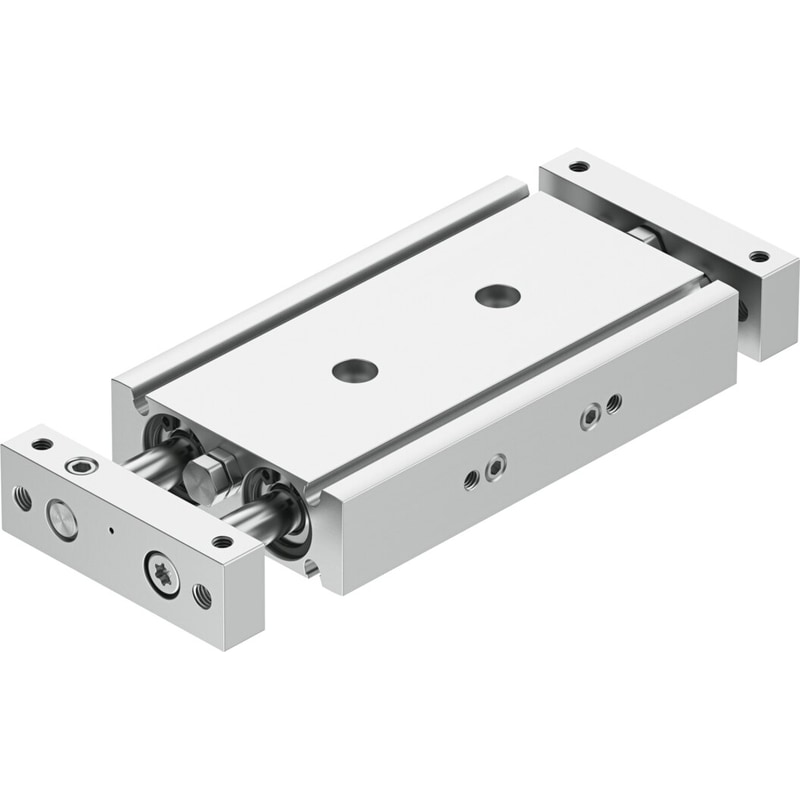

| Stroke | 10 mm |
|---|---|
| Adjustable end position range/length | 10 mm |
| Piston diameter | 16 mm |
| Drive unit operating mode | Two yokes |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Guide | Sliding guide |
| Structural design | Guide |
| Position sensing | For proximity sensor |

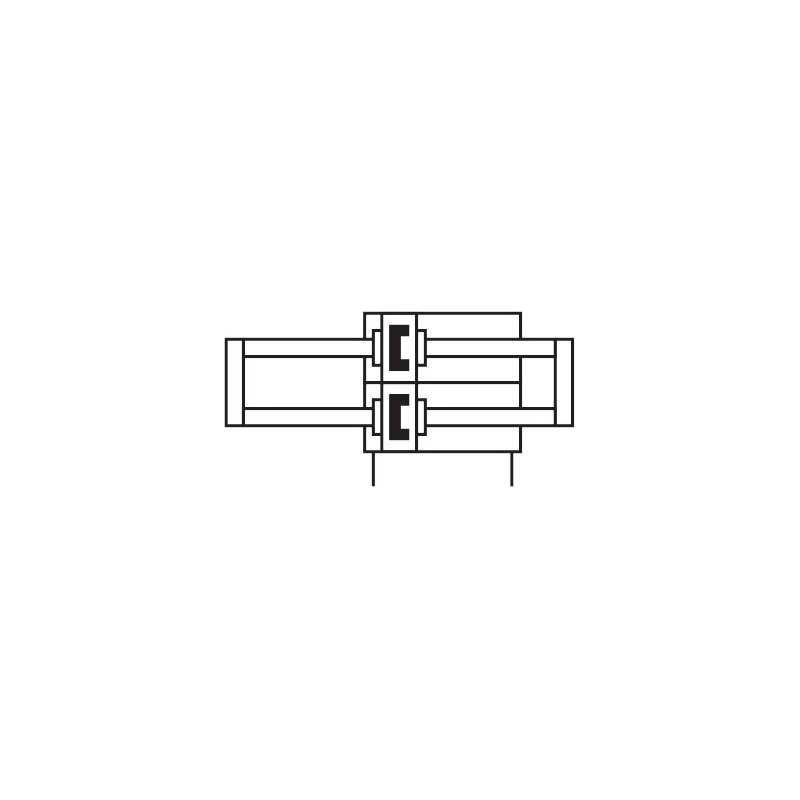

| Symbol | 00991243 |
| Operating pressure | 0.12 MPa … 0.8 MPa |
| Operating pressure | 1.2 bar … 8 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS conformity | VDMA24364 zone III |
| Ambient temperature | -10 °C … 80 °C |
| Impact energy in the end positions | 0.15 J |
| Max. payload as a function of the stroke at defined distance xs | 13.6 N |
| Theoretical force at 6 bar, retracting | 181 N |
| Theoretical force at 6 bar, advancing | 181 N |
| Moving mass | 149 g |
| Product weight | 405 g |
| Pneumatic connection | M5 |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel |
| Weight | 0.899486 lbs |
|---|---|
| Dimensions | 5.708661 × 2.362205 × 0.787402 in |
| Piston diameter | 16 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 181 N |
| Stroke | 10 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Position detection | Via proximity switch |
