| Stroke | 30 mm |
|---|---|
| Piston diameter | 50 mm |
| Type code | DFST |
| Cushioning | Elastic cushioning rings/pads at both endsPneumatic shock absorber, adjustable, at front |
| Mounting position | Vertical |
| Mode of operation | Double-actingPulling |
| Design | Piston rod with toggle lever |
| Position sensing | For proximity sensor |
| Toggle lever position query | For inductive proximity sensors |
| Symbol | 991204 |
| Protection against torsion/guide | Guide rod |
| Operating pressure | 2 bar … 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Ambient temperature | 5 °C … 60 °C |
| Cushioning length | 15 mm |
| Permissible impact force on the advanced piston rod | 3000 N |
| Product weight | 1900 g |
| Type of mounting | With through-hole |
| Pneumatic connection | G1/8 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover material | Die-cast aluminum |
| Seals material | NBR |
| Piston rod material | High-alloy stainless steel |
| Roller material | Steel |
DFST

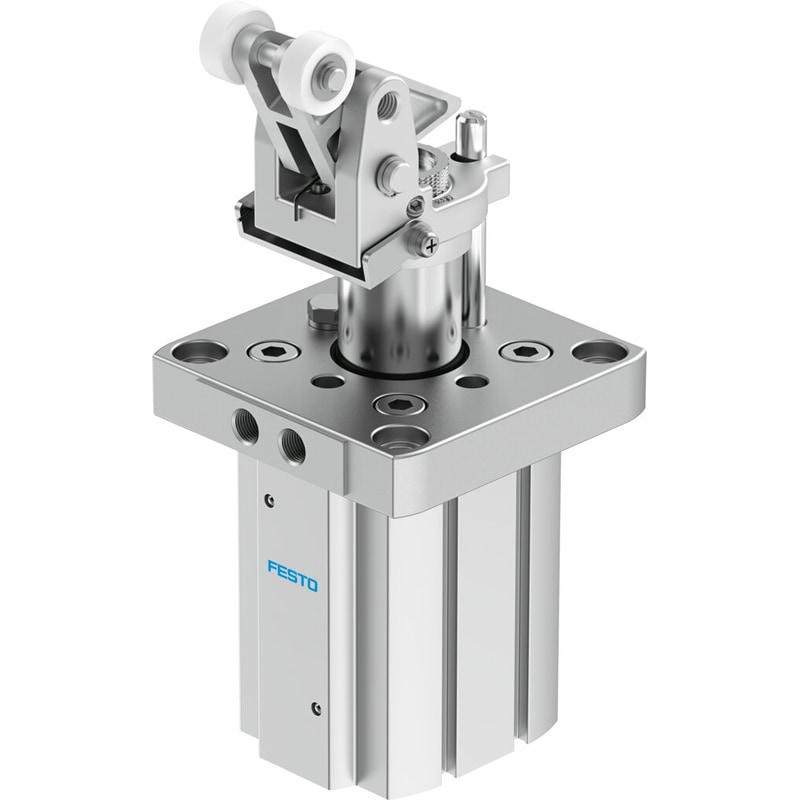

DFST-50-30-L-Y4-A-S-G2
$740.32
The stopper cylinder DFST enables you to stop workpieces gently without vibrations or noise, thanks to its cushioned rocker lever mechanism. The adjustable working direction makes the DFST highly versatile, while its sturdy design allows it to handle impact loads of up to 800Â kg.
| Weight | 4.655502 lbs |
|---|---|
| Dimensions | 8.661417 × 4.133858 × 4.133858 in |
| Piston diameter | 50 mm |
| Impact force | 3000 N |
| Stroke | 30 mm |
| Position detection | Via proximity switch |
