| Guide material | POMHigh-alloy steelTPE-E |
|---|---|
| Stroke | 150 mm |
| Adjustable end-position range/front length | 15.9 mm |
| Adjustable end-position range/rear length | 16.2 mm |
| Piston diameter | 16 mm |
| Type code | DGST |
| Drive unit operating mode | Yoke |
| Cushioning | External hydraulic cushioning |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Scotch yoke system |
| Position sensing | For proximity sensor |
| Symbol | 991249 |
| Operating pressure | 1 bar … 8 bar |
| Max. speed | 0.5 m/s |
| Repetition accuracy | <= 0.02 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Ambient temperature | -10 °C … 60 °C |
| Impact energy in the end positions | 0.85 J |
| Cushioning length | 5 mm |
| Max. force Fz | 960 N |
| Max. torque Mx | 14 Nm |
| Max. torque My | 16 Nm |
| Max. torque Mz | 16 Nm |
| Theoretical force at 6 bar, retracting | 207 N |
| Theoretical force at 6 bar, advancing | 241 N |
| Moving mass | 693 g |
| Product weight | 1468 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M5 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | HNBR |
| Housing material | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel |
DGST

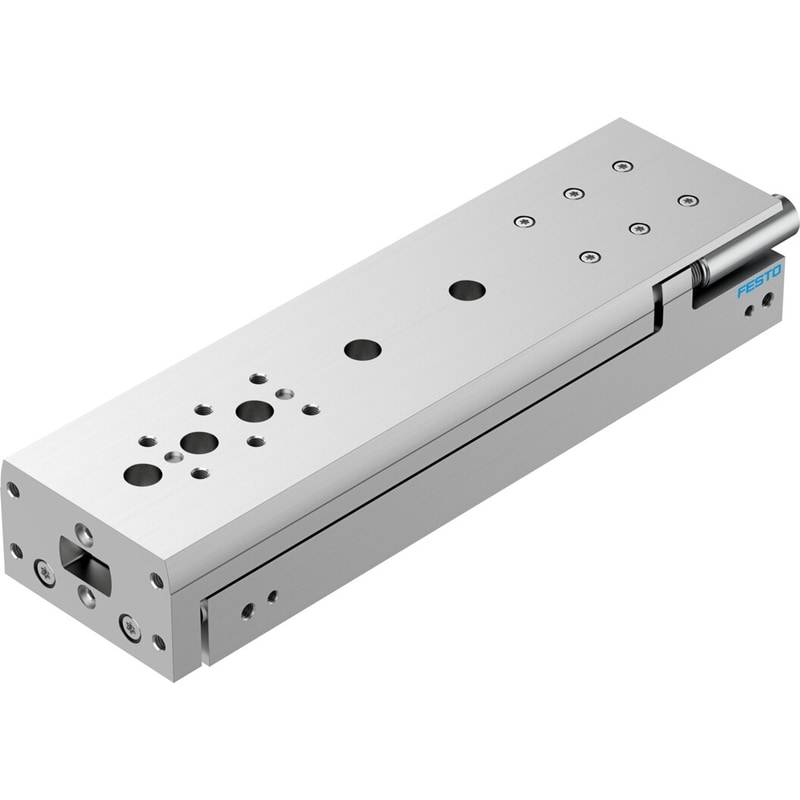

DGST-16-150-Y12A
$939.64
The most compact slide actuator on the market. Integrated pneumatic shock absorber and sensor holders, integrated base cushioning. And best of all – slide and yoke comprise one single part – torsion-resistant with unrivalled precision.
| Weight | 3.862499 lbs |
|---|---|
| Dimensions | 9.448819 × 2.559055 × 1.968504 in |
| Piston diameter | 16 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 241 N |
| Stroke | 150 mm |
| Cushioning | External hydraulic cushioning |
| Position detection | Via proximity switch |
