mini slide

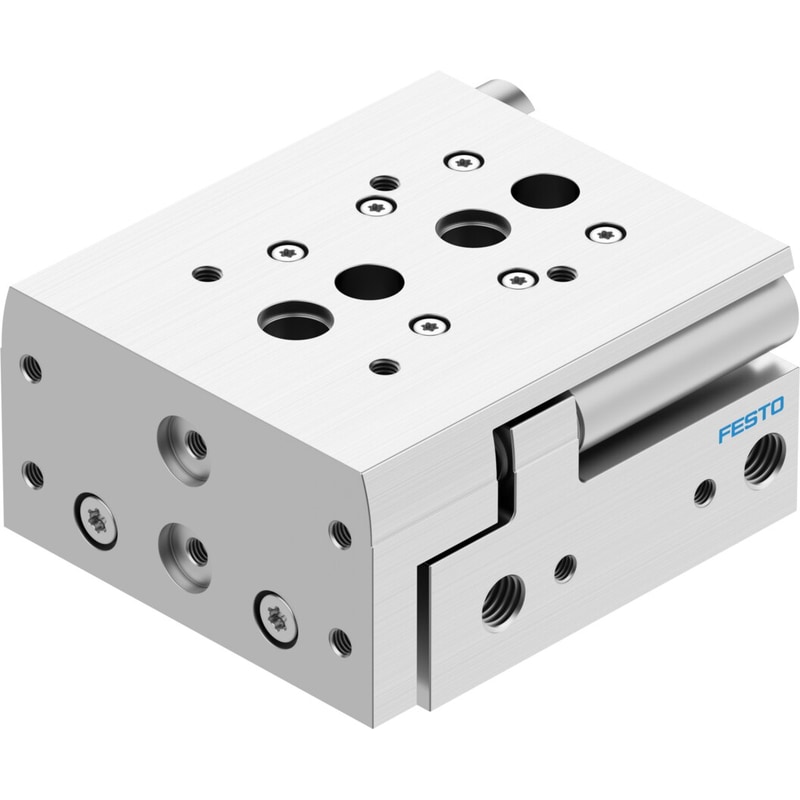

DGST-20-10-PA
Part number:Â 8085139
New
| Stroke | 10 mm |
|---|---|
| Adjustable endposition range/front length | 32 mm |
| Adjustable endposition range/rear length | 31.5 mm |
| Piston diameter | 20 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | For proximity sensor |
| Operating pressure | 1 … 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | <= 0,3 mm |
| Weight | 2.552093 lbs |
|---|---|
| Dimensions | 7.086614 × 5.511811 × 3.346457 in |
| Stroke | 10 mm |
| Adjustable end-position range/front length | 10.1 mm |
| Adjustable end-position range/rear length | 10.1 mm |
| Piston diameter | 20 mm |
| Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Guide | Ball bearing cage guide |
| Structural design | Twin piston, Yoke, Piston rod, Slide |
| Position sensing | For proximity sensor |
| Symbol | 00991249 |
| Operating pressure | 14.5 psi … 116 psi |
| Max. speed | 0.8 m/s |
| Repetition accuracy | <= 0.3 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10 °C … 60 °C |
| Impact energy in the end positions | 0.35 J |
| Cushioning length | 1.2 mm |
| Max. force Fy | 1600 N |
| Max. force Fz | 1600 N |
| Max. torque Mx | 16 Nm |
| Max. torque My | 18 Nm |
| Max. torque Mz | 18 Nm |
| Theoretical force at 6 bar, retracting | 317 N |
| Theoretical force at 6 bar, advancing | 377 N |
| Moving mass | 512.5 g |
| Product weight | 1123 g |
| Type of mounting | With through-hole |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | HNBR |
| Guide material | POM, TPE-E, High-alloy steel |
| Housing material | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel |
