| Guide material | POMHigh-alloy steelTPE-E |
|---|---|
| Stroke | 50 mm |
| Adjustable end-position range/front length | 12.1 mm |
| Adjustable end-position range/rear length | 12.1 mm |
| Piston diameter | 6 mm |
| Type code | DGST |
| Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Scotch yoke system |
| Position sensing | For proximity sensor |
| Symbol | 991249 |
| Operating pressure | 1.5 bar … 8 bar |
| Max. speed | 0.5 m/s |
| Repetition accuracy | <= 0.3 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Ambient temperature | -10 °C … 60 °C |
| Impact energy in the end positions | 0.018 J |
| Cushioning length | 0.9 mm |
| Max. force Fz | 280 N |
| Max. torque Mx | 1.4 Nm |
| Max. torque My | 1.2 Nm |
| Max. torque Mz | 1.2 Nm |
| Theoretical force at 6 bar, retracting | 25 N |
| Theoretical force at 6 bar, advancing | 34 N |
| Moving mass | 93 g |
| Product weight | 182 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M3 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | HNBR |
| Housing material | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel |
DGST

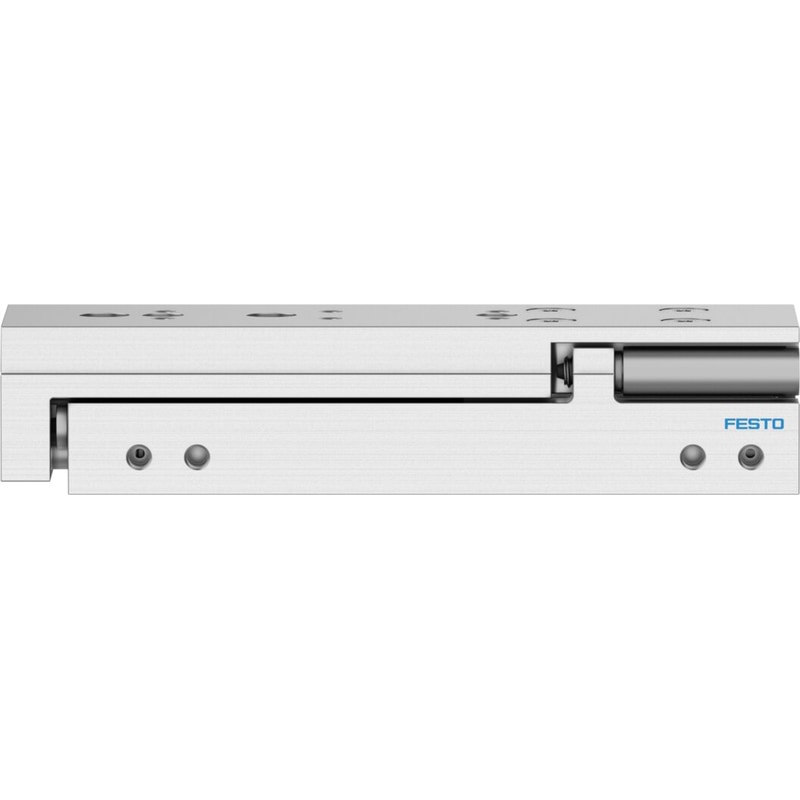

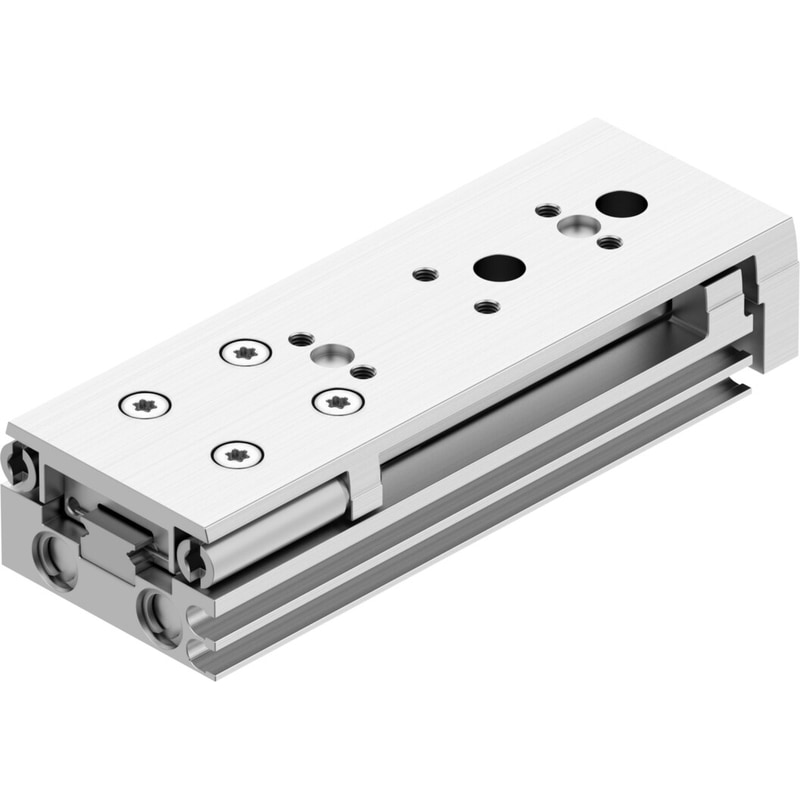

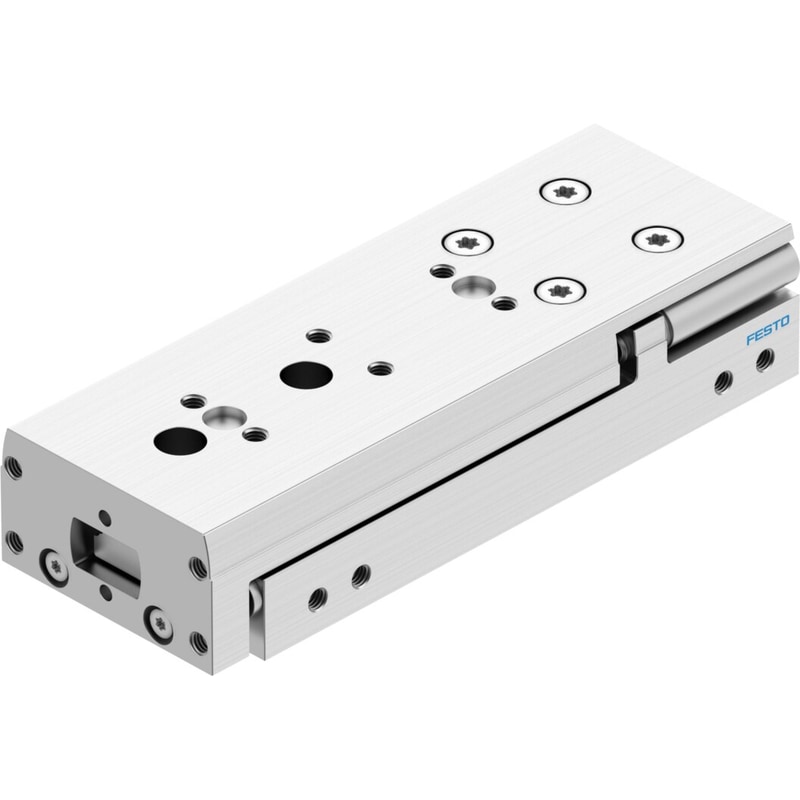

DGST-6-50-PA
$430.51
The most compact slide actuator on the market. Integrated pneumatic shock absorber and sensor holders, integrated base cushioning. And best of all – slide and yoke comprise one single part – torsion-resistant with unrivalled precision.
| Weight | 0.401241 lbs |
|---|---|
| Dimensions | 3.937008 × 3.149606 × 1.181102 in |
| Piston diameter | 6 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 34 N |
| Stroke | 50 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Position detection | Via proximity switch |
