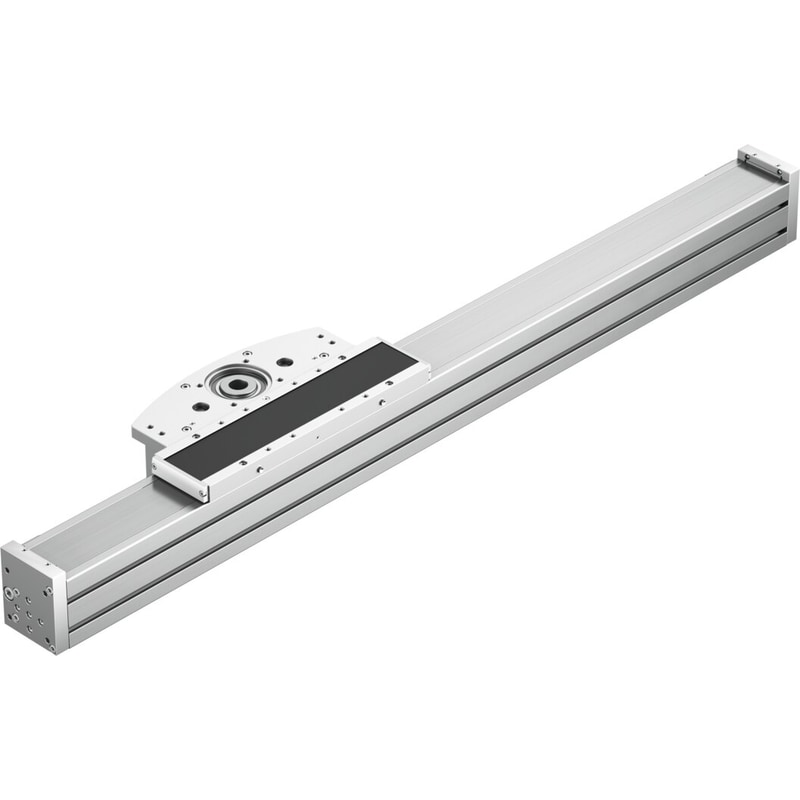

ELCC-TB-KF-90-500-0H-P0-CR

$4,170.58

SKU: 8082401 Category: Tag:
Festo

cantilever axis
ELCC-TB-KF-90-500-0H-P0-CR
Part number: 8082401

New

Effective diameter of drive pinion  50.93 mm
Working stroke  500 mm
Size  90
Stroke reserve  0 mm
Toothed-belt pitch  5 mm
Assembly position  Any
Guide  Recirculating ball bearing guide
Design structure  Electromechanical Cantilever axis
Max. acceleration  30 m/s2
Max. speed  5 m/s
Repetition accuracy  ±0,05 mm
Corrosion resistance classification CRC  0 – No corrosion stress
Protection class  IP20
Effective diameter of drive pinion

50.93 mm

Working stroke

500 mm

Size

90

Stroke reserve

0 mm

Toothed-belt pitch

5 mm

Assembly position

Any

Guide

Recirculating ball bearing guide

Design structure

Electromechanical Cantilever axis

Max. acceleration

30 m/s2

Max. speed

5 m/s

Repetition accuracy

±0,05 mm

Corrosion resistance classification CRC

0 – No corrosion stress

Protection class

IP20
