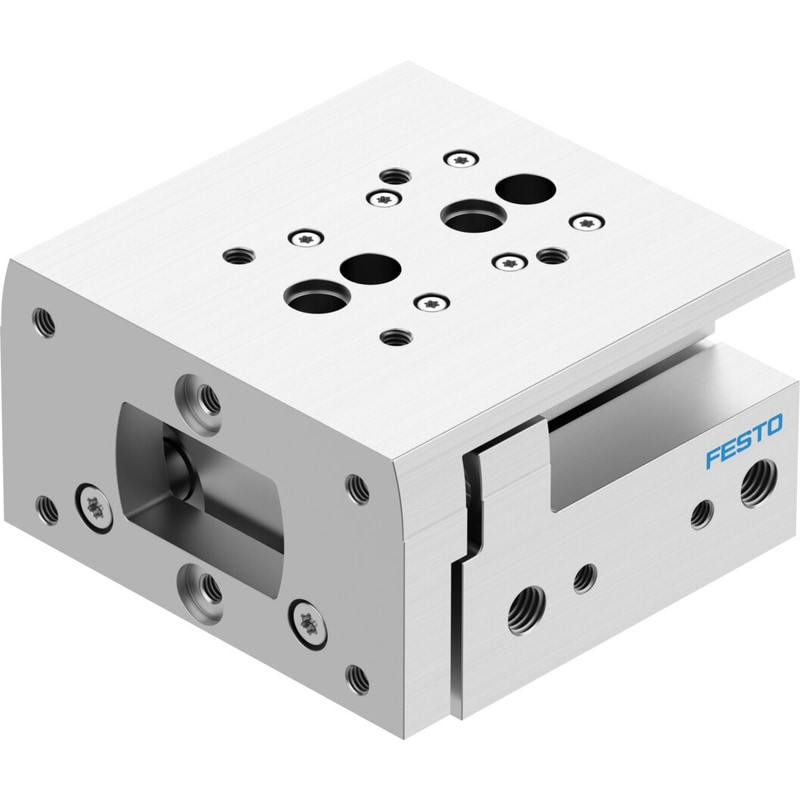

Name: Mini slide DGST-25-10-E1A
Brand: Festo
SKU: 8078872
Availability: InStock

mini slide
DGST-25-10-E1A
Part number: 8078872

New

Stroke	10 mm
Piston diameter	25 mm
Operating mode of drive unit	Yoke
Cushioning	Elastomer cushioning, at both ends, stroke not adjustable
Assembly position	Any
Guide	Ball bearing cage guide
Design structure	Yoke kinematics
Position detection	For proximity sensor
Operating pressure	1 … 8 bar
Max. speed	0.5 m/s
Repetition accuracy	<= 0,3 mm
Mode of operation	double-acting
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Weight	3.368663 lbs
Dimensions	7.086614 × 5.511811 × 3.149606 in
Stroke	10 mm
Piston diameter	25 mm
Drive unit operating mode	Yoke
Cushioning	at both ends, Elastomer cushioning, stroke not adjustable
Mounting position	Any
Guide	Ball bearing cage guide
Structural design	Twin piston, Yoke, Piston rod, Slide
Position sensing	For proximity sensor
Symbol	00991249
Operating pressure	14.5 psi … 116 psi
Max. speed	0.5 m/s
Repetition accuracy	<= 0.3 mm
Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 – Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14	Class 6 according to ISO 14644-1
Ambient temperature	-10 °C … 60 °C
Impact energy in the end positions	0.3 J
Cushioning length	1.2 mm
Max. force Fy	1840 N
Max. force Fz	1840 N
Max. torque Mx	19 Nm
Max. torque My	21 Nm
Max. torque Mz	21 Nm
Theoretical force at 6 bar, retracting	495 N
Theoretical force at 6 bar, advancing	589 N
Moving mass	714 g
Product weight	1463 g
Type of mounting	With through-hole
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy
Seals material	HNBR
Guide material	POM, TPE-E, High-alloy steel
Housing material	Wrought aluminum alloy
Piston rod material	High-alloy stainless steel
