Guide material | POMHigh-alloy steelTPE-E |
---|---|
Stroke | 80 mm |
Piston diameter | 10 mm |
Type code | DGST |
Drive unit operating mode | Yoke |
Cushioning | Elastomer cushioning, at both ends, stroke not adjustable |
Mounting position | Any |
Guide | Recirculating ball bearing guide |
Design | Scotch yoke system |
Position sensing | For proximity sensor |
Symbol | 991249 |
Operating pressure | 1 bar … 8 bar |
Max. speed | 0.5 m/s |
Repetition accuracy | <= 0.3 mm |
Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 – Low corrosion stress |
Ambient temperature | -10 °C … 60 °C |
Impact energy in the end positions | 0.05 J |
Cushioning length | 1.6 mm |
Max. force Fy | 520 N |
Max. force Fz | 520 N |
Max. torque My | 5 Nm |
Max. torque Mz | 5 Nm |
Theoretical force at 6 bar, retracting | 79 N |
Theoretical force at 6 bar, advancing | 94 N |
Moving mass | 240 g |
Product weight | 496 g |
Type of mounting | With through-hole |
Pneumatic connection | M5 |
Note on materials | RoHS-compliantFree of copper and PTFE |
Cover material | Wrought aluminum alloy |
Seals material | HNBR |
Housing material | Wrought aluminum alloy |
Piston rod material | High-alloy stainless steel |

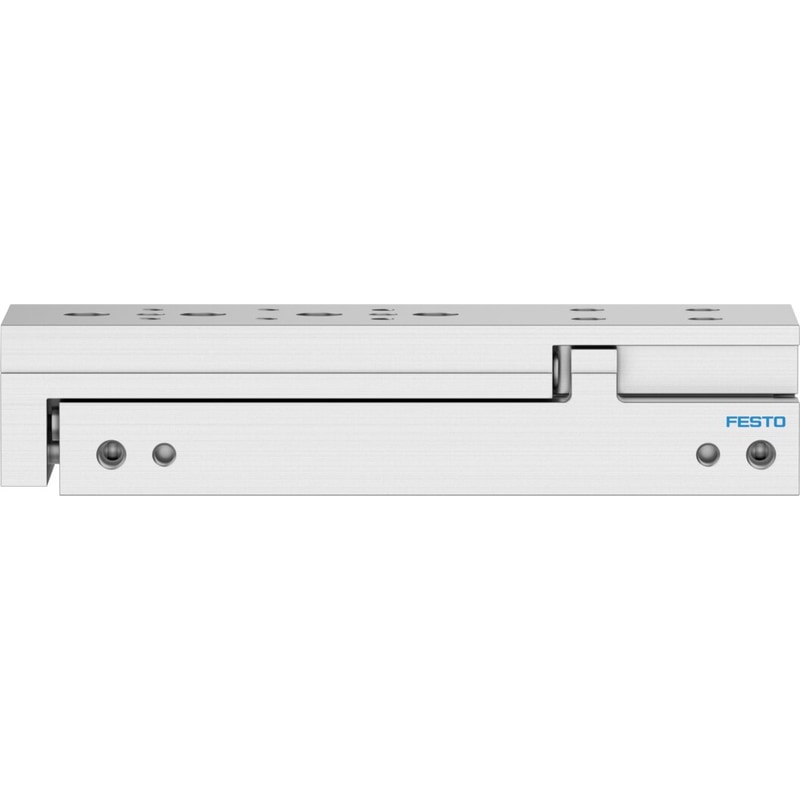

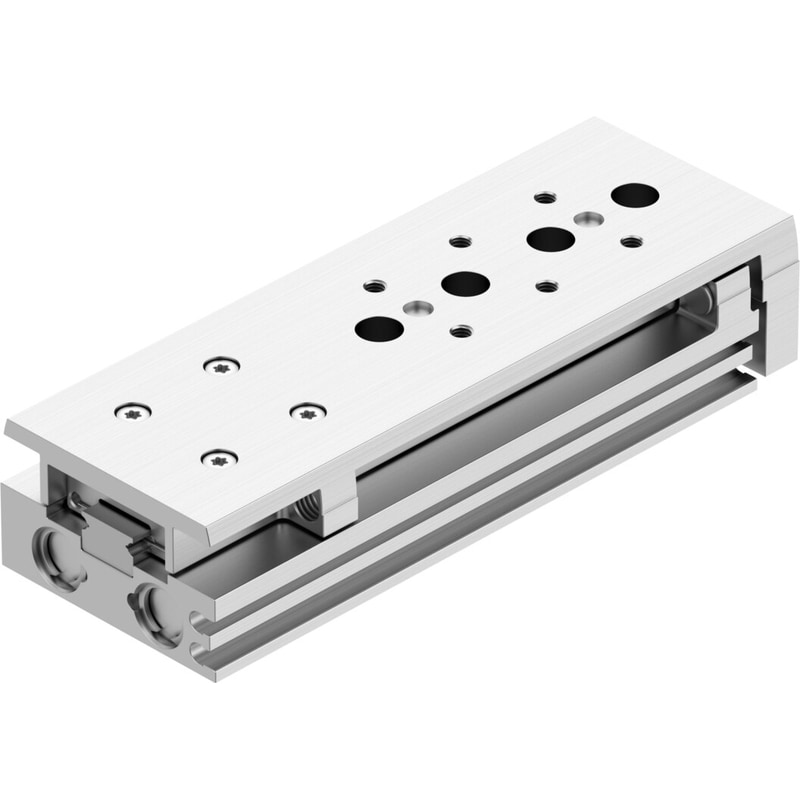

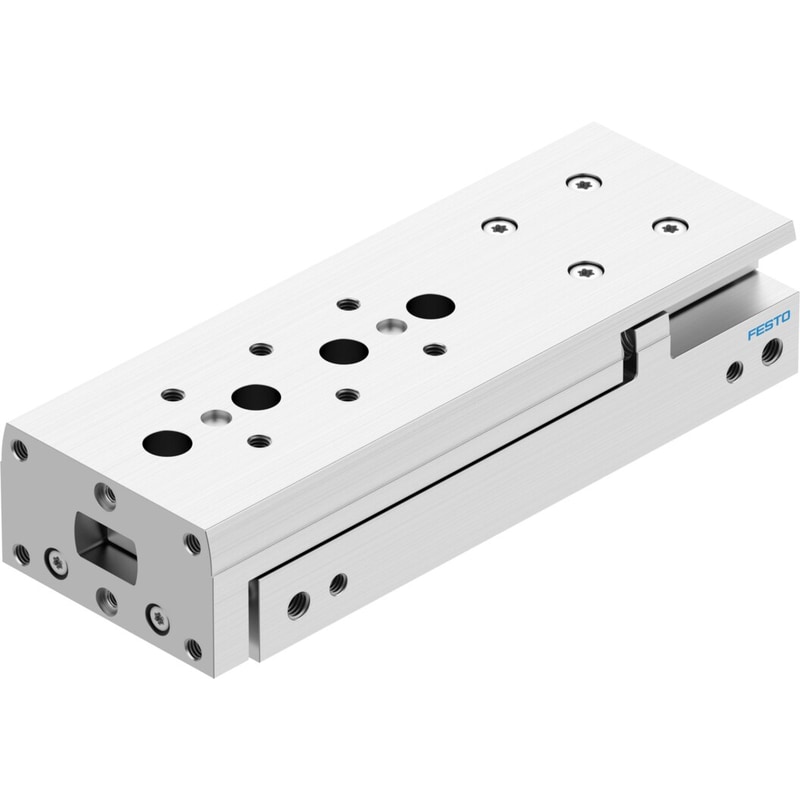

DGST-10-80-E1A
$447.04
The most compact slide actuator on the market. Integrated pneumatic shock absorber and sensor holders, integrated base cushioning. And best of all – slide and yoke comprise one single part – torsion-resistant with unrivalled precision.
