| Valve function | 5/2 or 3/2 switchable |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Width | 32 mm |
| Standard nominal flow rate | 1250 l/min |
| Pneumatic working port | NAMUR connection diagram |
| Operating voltage | 230V AC |
| Operating pressure | 2.5 bar … 8 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | IP65IP67as per IEC 60529With plug socket |
| Type code | VSNC |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | DetentingNon-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |

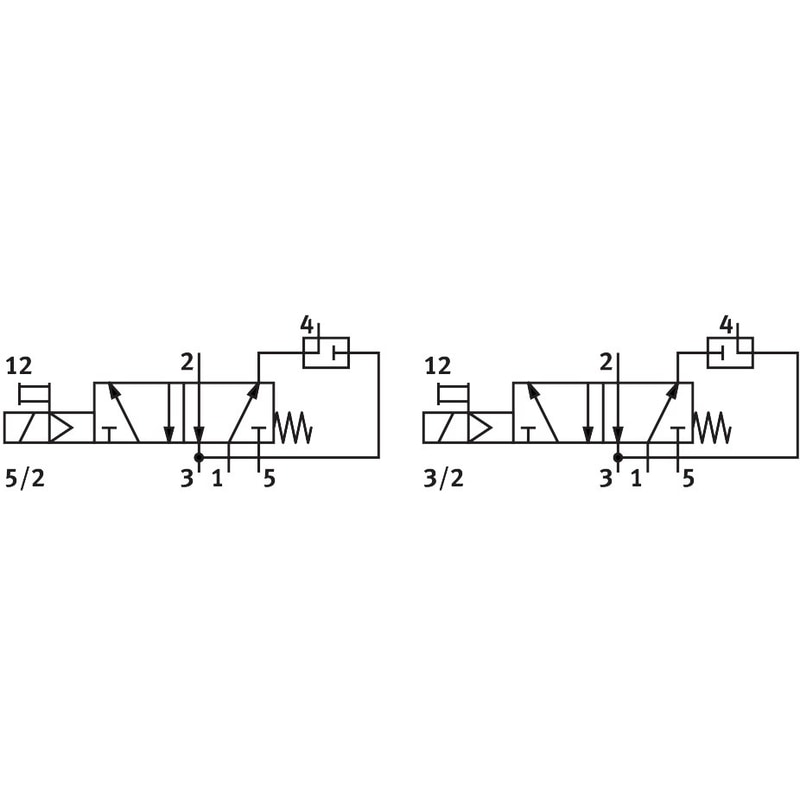

| Symbol | 991831 |
| Signal status display | With accessories |
| b-value | 0.4 |
| Standard nominal flow rate, exhaust air return 4->3 | 110 l/min |
| Switching time off | 92 ms |
| On switching time | 35 ms |
| Duty cycle | 1 |
| Coil characteristics | 230 V AC: 50/60 Hz, initial power 6.2 VA, holding power 3.7 VA |
| Permissible voltage fluctuations | +/- 10 % |
| Certificate issuing authority | DNVGL-TAA000011J |
| Explosion prevention and protection | Zone 22 (ATEX)Zone 2 (ATEX)Zone 1 (ATEX)Zone 21 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | -20 °C … 60 °C |
| Ambient temperature | -20 °C … 60 °C |
| Product weight | 415 g |
| Electrical connection | Form Aas per EN 175301-803 |
| Type of mounting | With through-hole |
| Venting hole connection | Not ducted |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | NAMUR connection diagram |
| Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | NAMUR connection diagram |
| Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy |
| Material of screws | High-alloy stainless steel |
VSNC

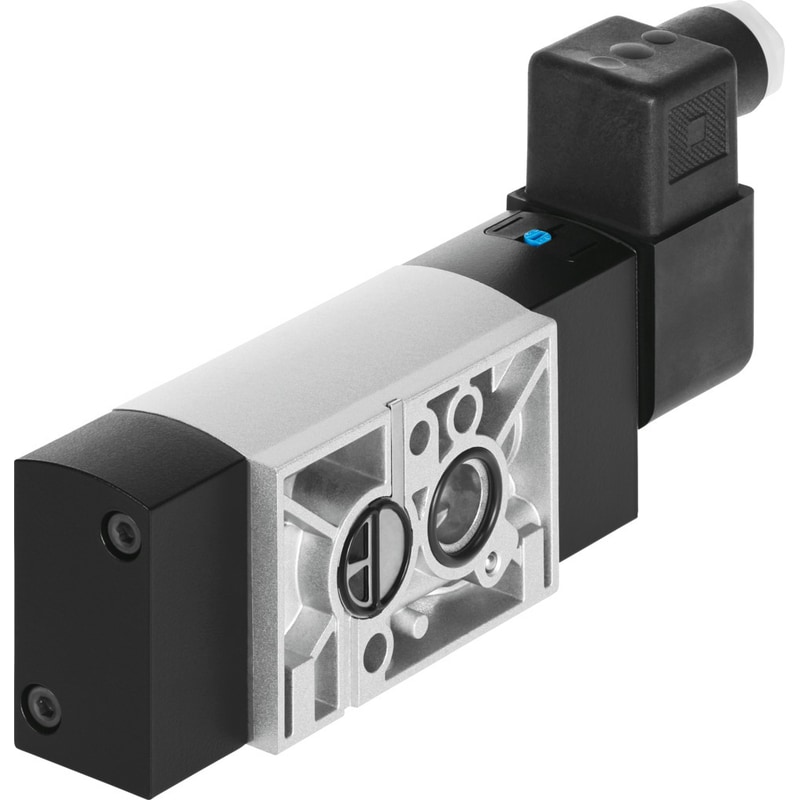

VSNC-FC-M52-MD-G14-FN-3AA1+G
$157.69
The standard NAMUR pneumatic valve VSNC is certified in accordance with the most common explosion stands the world over. A sturdy unit, it combines great value for money with a modern design.
| Weight | 1.12535 lbs |
|---|---|
| Dimensions | 6.692913 × 3.937008 × 2.204724 in |
