| Type code | SOOD |
|---|---|
| Electrical connection 1, type of mounting | Screw-type lock |
| Certificate issuing authority | UL E232949 |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection for input 1, connection pattern | 991155 |
| Detection method | Reflection light sensor with HGA |
| Electrical connection 1, number of pins/wires | 3 |
| Max. black-white difference | 0.2 |
| Design | Block design |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 995959 |
| Certification | RCM compliance markc UL us – Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Measuring principle | Optoelectronic |
| Type of light | LEDRed |
| Max. light spot | 5 mm for scan width of 80 mm |
| Minimum object diameter | 5 mm |
| Working range | 15 mm … 80 mm |
| Ambient temperature | -25 °C … 60 °C |
| Reference material | Standard white 90%, 100×100 mm |
| Switching output | Push-pull |
| Hysteresis | 2.4 mm |
| Max. switching frequency | 800 Hz |
| Max. output current | 50 mA |
| Voltage drop | 0 V … 1.5 V |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V … 30 V |
| Residual ripple | 0.1 |
| Idle current | 10 mA |
| Reverse polarity protection | for all electrical connections |
| Material of pin contacts | Brass, gold-plated |
| Cable length | 0.15 m |
| Cable characteristic | Standard |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | With through-hole |
| Tightening torque | 0.5 Nm |
| Mounting position | Any |
| Product weight | 10 g |
| Housing material | ABSPCTPE-U(PU) |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Degree of protection | IP65IP67 |
| Insulation voltage | 500 V |
| Surge resistance | 1 kV |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Contamination level | 3 |
SOOD

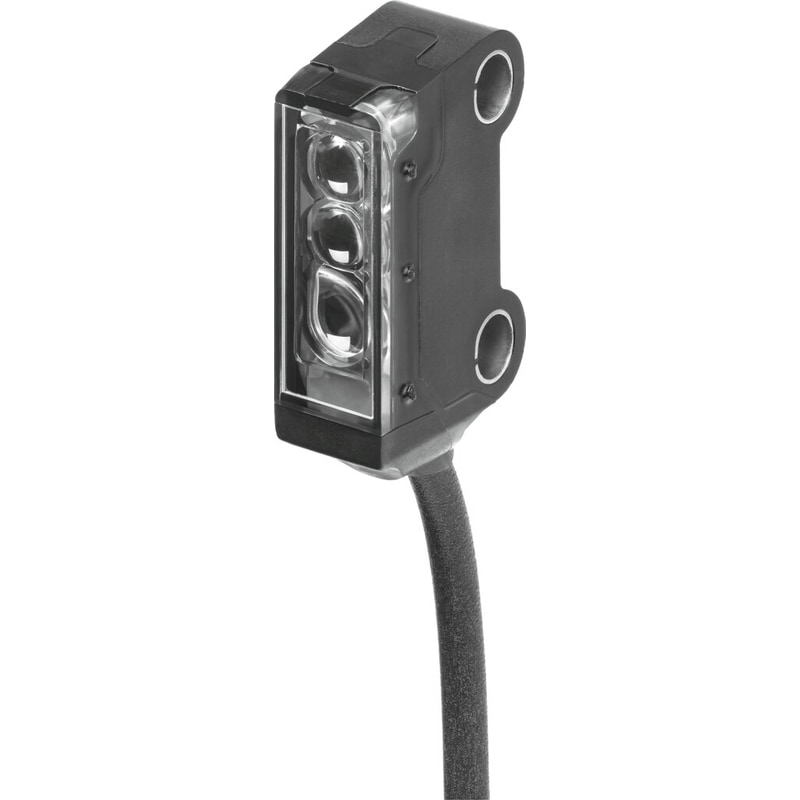

SOOD-BS-R-PN-80
$213.00
With the optoelectronics sensors SOOD, you can perform object detection tasks perfectly—even in very confined application environments. Faster and more affordable than ever, thanks to the consistent use of uniform sensor functions and reusable mounting.
| Weight | 0.045062 lbs |
|---|---|
| Dimensions | 3.740157 × 2.559055 × 0.984252 in |
| No-load supply current | 10 mA |
| Type of light | Red – LED |
| Operating distance | 15 mm – 80 mm |
| Degree of protection | IP65 – IP67 |
| Ambient temperature | -25?C – 60?C |
