| Size | 20 |
|---|---|
| Max. tightening torque | 5 Nm |
| Stroke | 8 mm |
| Type code | DYSS |
| Cushioning | Self-adjusting |
| Mounting position | Any |
| Position sensing | None |

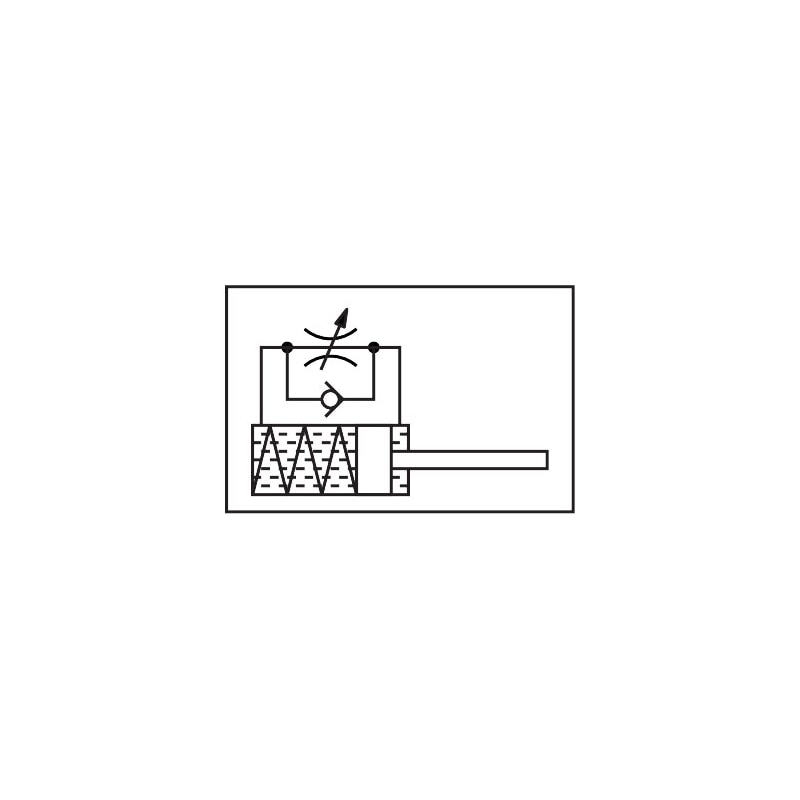

| Symbol | 991495 |
| Max. impact velocity | 1.5 m/s |
| Reset time at room temperature | 0.2 s |
| Reset time at min. ambient temperature | 1 s |
| Mode of operation | Single-actingPushing |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -10 °C … 80 °C |
| Cushioning length | 8 mm |
| Max. stop force | 500 N |
| Max. energy absorption per stroke | 3 J |
| Max. energy absorption per hour | 18000 J |
| Max. residual energy | 0.02 J |
| Resetting force | 2.5 N |
| Product weight | 30 g |
| Type of mounting | With lock nut |
| Note on materials | RoHS-compliant |
| Housing material | High-alloy steel |
| Piston rod material | High-alloy steel |
DYSS

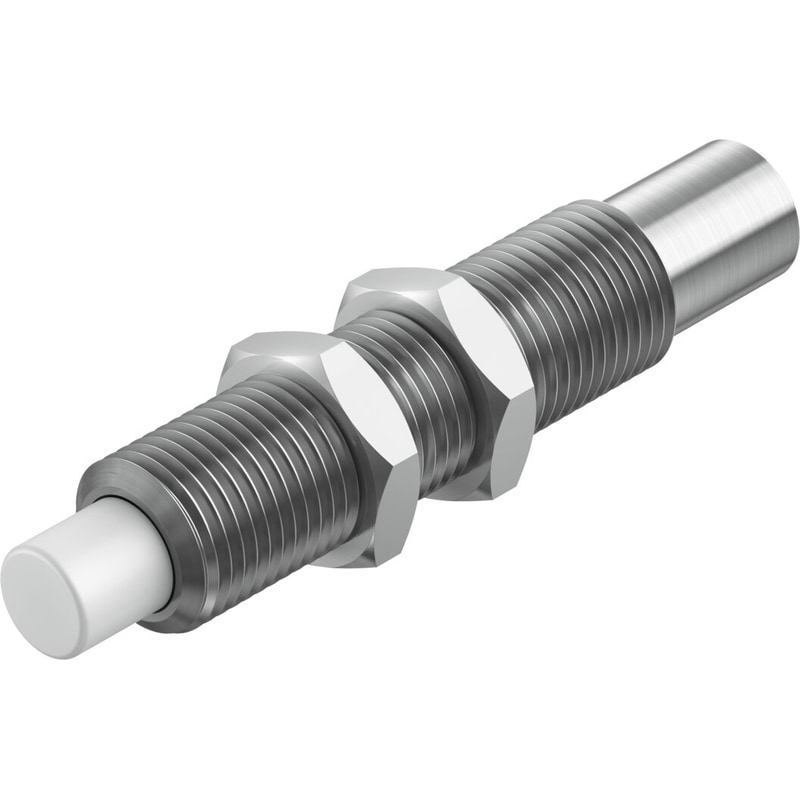

DYSS-8-8-Y1F
$73.66
End-to-end screw-in hydraulic shock absorber with rapidly rising cushioning force curve due to path-controlled flow control function for DGST miniature slide.
| Weight | 0.086553 lbs |
|---|---|
| Dimensions | 7.480315 × 5.905512 × 0.590551 in |
| Stroke | 8 mm |
| Max. energy consumption per stroke | 3 J |
| Cushioning | Self-adjusting |
