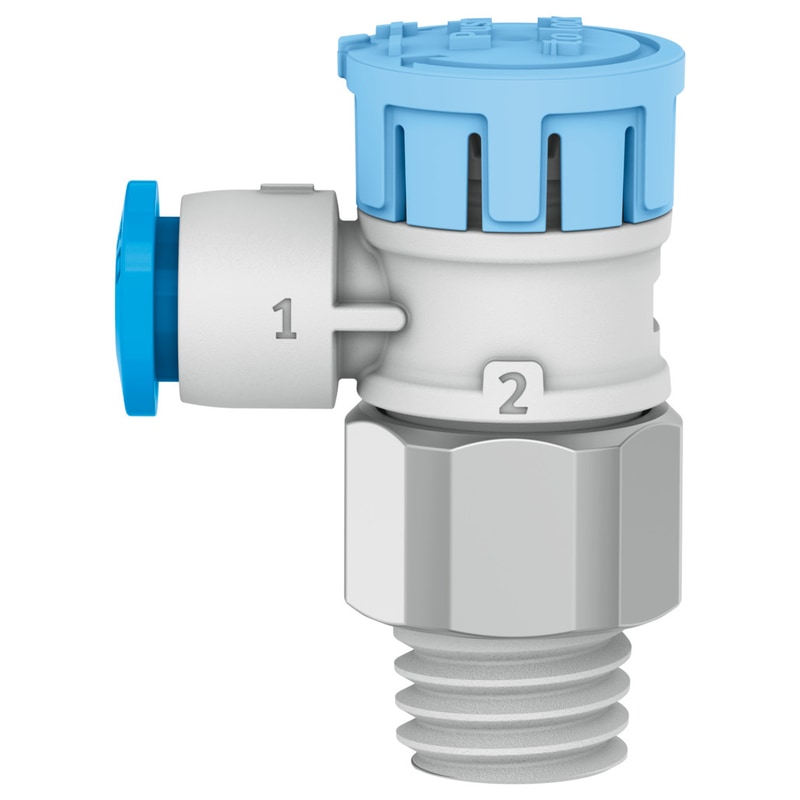

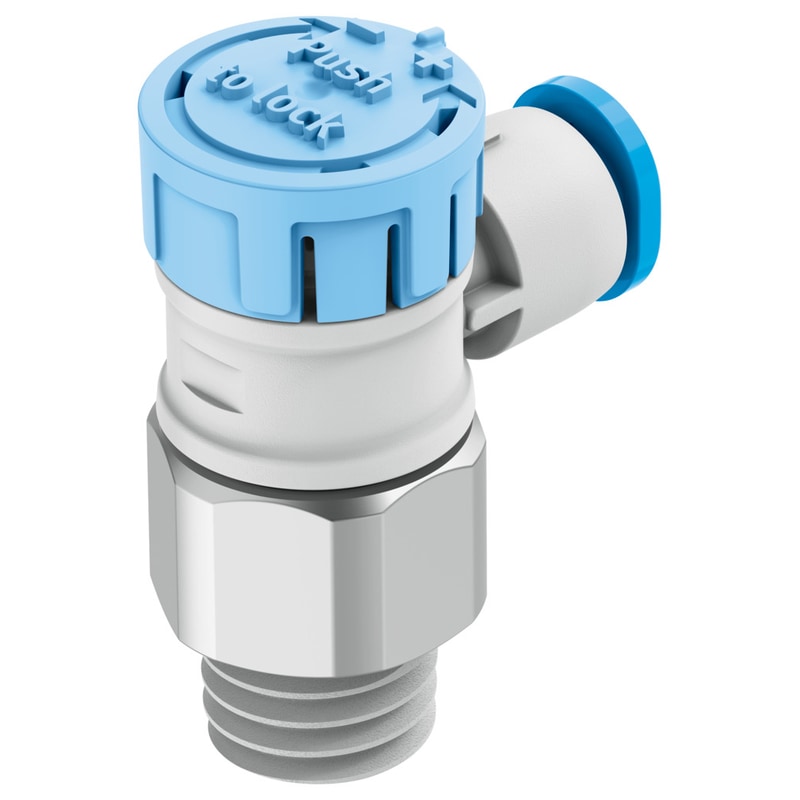

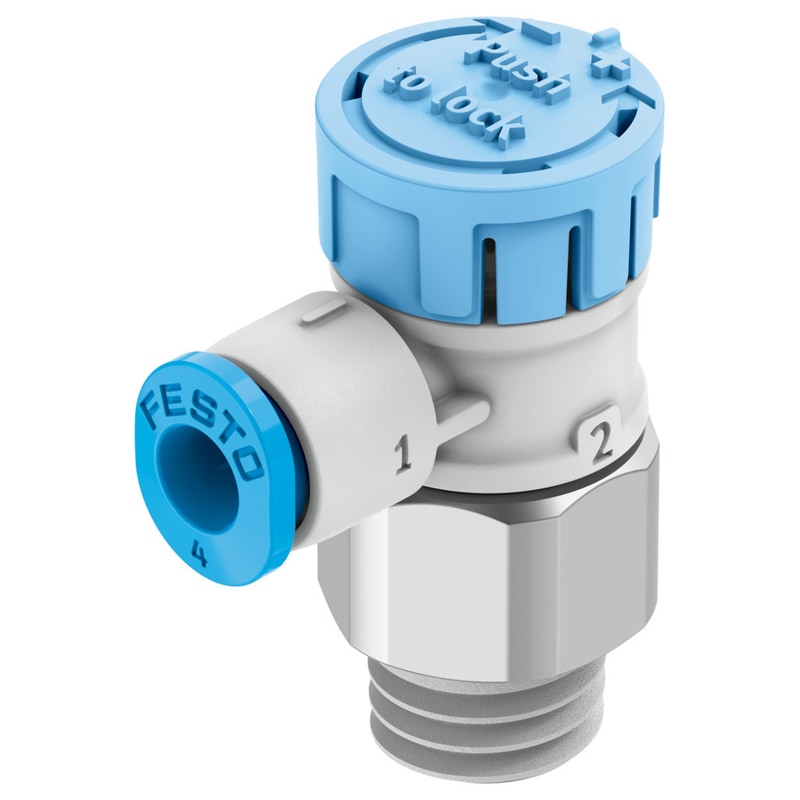

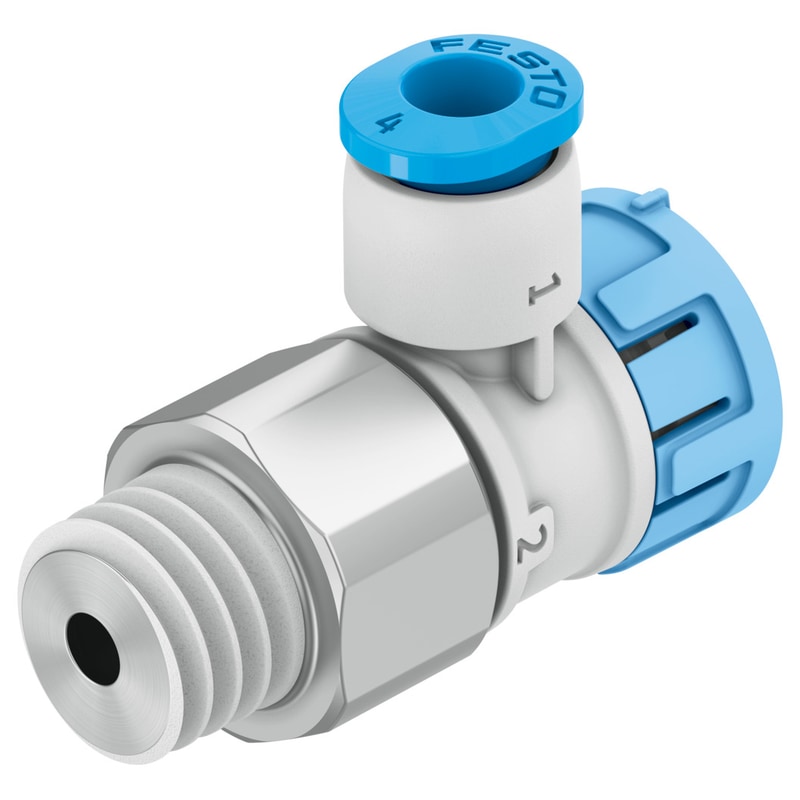

| Valve function | Supply air flow control non-return function |
|---|---|
| Pneumatic connection 1 | QS-4 |
| Pneumatic connection 2 | R1/8 |
| Actuation type | Manual |
| Adjusting element | Rotary knob with detent |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 165 l/min |
| Standard nominal flow rate in non-return direction | 90 l/min … 165 l/min |
| Ambient temperature | -10 °C … 60 °C |
| Housing material | PBT |
| Mounting position | Any |
| Symbol | 00991453 |
| Width across flats | 13 mm |
| Rotatability | 360 deg/continuous swiveling not permissible |
| Operating pressure for entire temperature range | 0.02 MPa … 1 MPa |
| Operating pressure for entire temperature range | 0.2 bar … 10 bar |
| Operating pressure for entire temperature range | 2.9 psi … 145 psi |
| Standard flow rate in flow control direction 6 -> 0 bar | 260 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 240 l/min … 300 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS conformity | VDMA24364 zone III |
| Temperature of medium | -10 °C … 60 °C |
| Product weight | 9.5 g |
| Note on materials | RoHS-compliant |
| Cover material | PBT |
| Material of dynamic seals | HNBR |
| Threaded bolt material | Steel, galvanized |
| Releasing ring material | PBT |
| Static seal material | NBR |
| Weight | 0.026455 lbs |
|---|---|
| Dimensions | 1.574803 × 1.377953 × 0.787402 in |
| Valve Function | Supply air one-way flow control function |
| Standard nominal flow rate in flow control direction | 165 l/min |
| Width across flats | 13 mm |
| Pneumatic connection, port 1 | QS-4 |
| Adjustment component | Rotary knob with detent |
