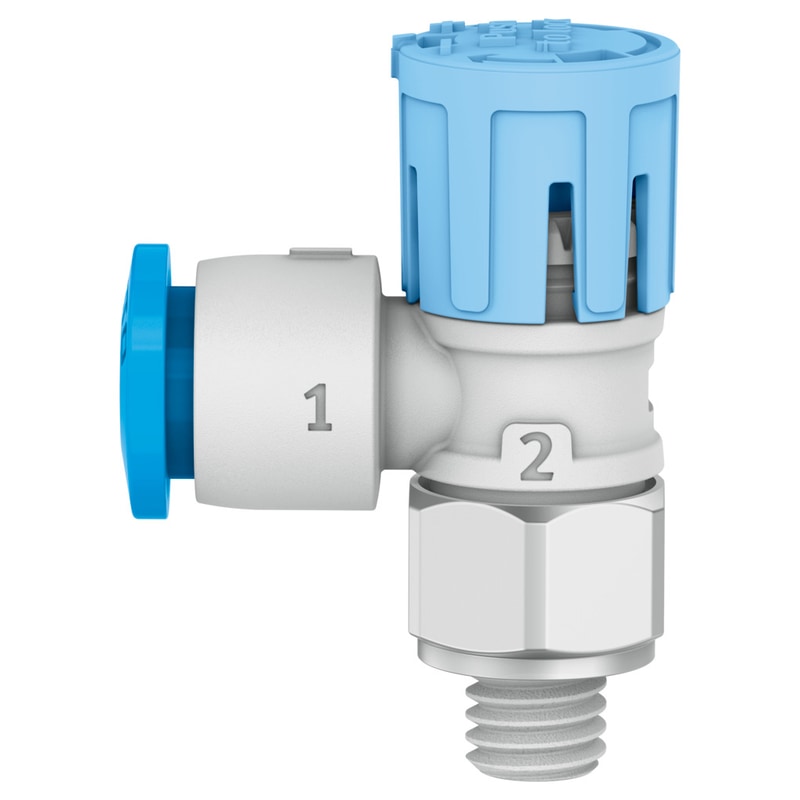

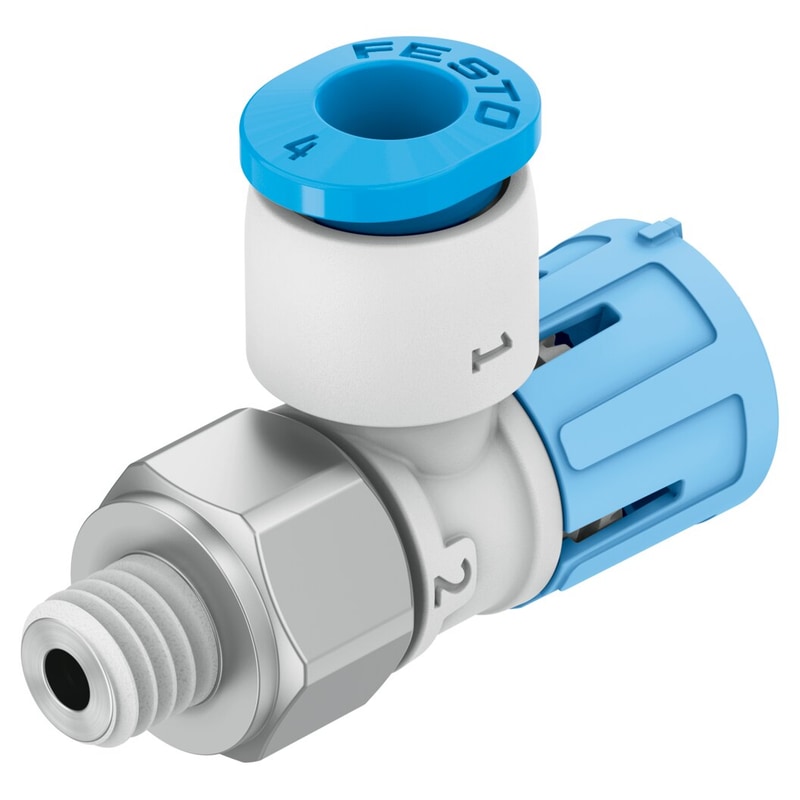

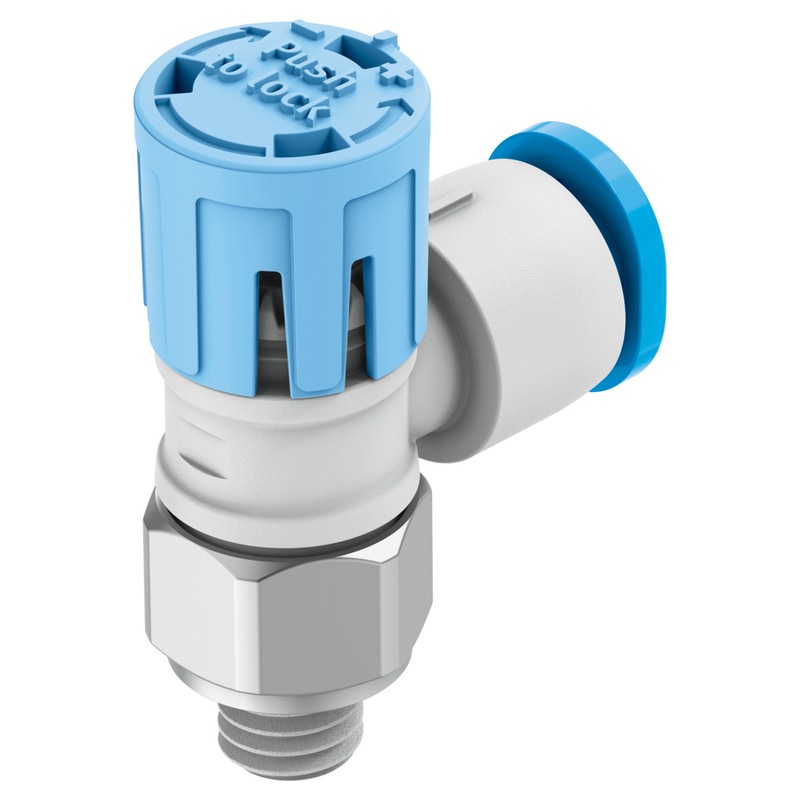

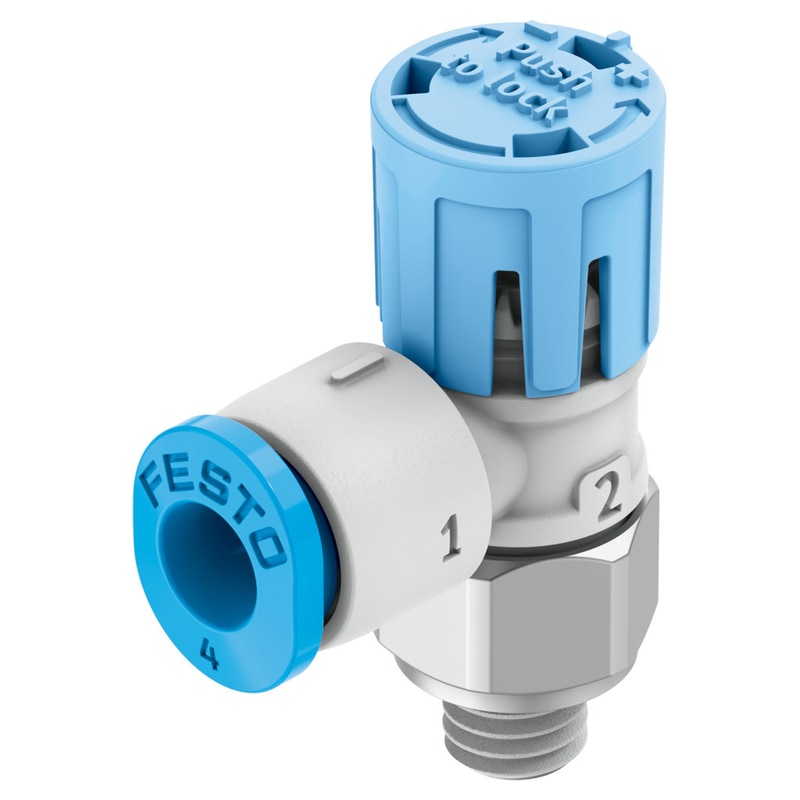

| Valve function | Supply air flow control non-return function |
|---|---|
| Pneumatic connection 1 | QS-4 |
| Pneumatic connection 2 | M5 |
| Actuation type | Manual |
| Adjusting element | Rotary knob with detent |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 85 l/min |
| Standard nominal flow rate in non-return direction | 50 l/min … 90 l/min |
| Ambient temperature | -10 °C … 60 °C |
| Housing material | PBT |
| Mounting position | Any |
| Symbol | 00991453 |
| Width across flats | 9 mm |
| Rotatability | 360 deg/continuous swiveling not permissible |
| Operating pressure for entire temperature range | 0.02 MPa … 1 MPa |
| Operating pressure for entire temperature range | 0.2 bar … 10 bar |
| Operating pressure for entire temperature range | 2.9 psi … 145 psi |
| Standard flow rate in flow control direction 6 -> 0 bar | 135 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 130 l/min … 160 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS conformity | VDMA24364 zone III |
| Temperature of medium | -10 °C … 60 °C |
| Max. tightening torque | 2.4 Nm |
| Nominal tightening torque | 2 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 3.3 g |
| Note on materials | RoHS-compliant |
| Cover material | PBT |
| Material of dynamic seals | HNBR |
| Threaded bolt material | Steel, galvanized |
| Releasing ring material | PBT |
| Static seal material | NBR |
| Weight | 0.013404 lbs |
|---|---|
| Dimensions | 0.984252 × 0.984252 × 0.393701 in |
| Valve Function | Supply air one-way flow control function |
| Standard nominal flow rate in flow control direction | 85 l/min |
| Width across flats | 9 mm |
| Pneumatic connection, port 1 | QS-4 |
| Adjustment component | Rotary knob with detent |
