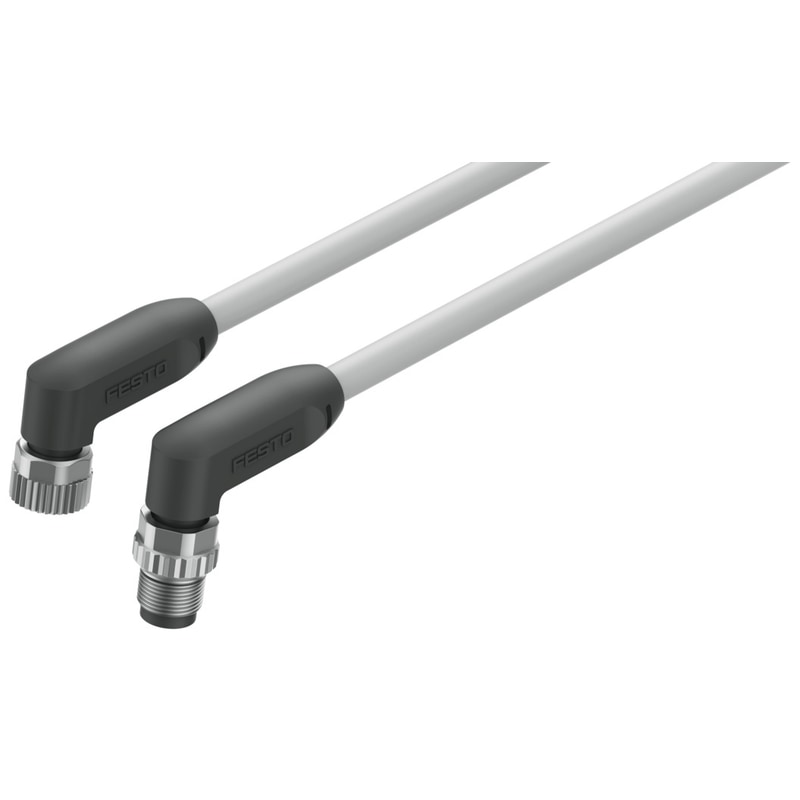

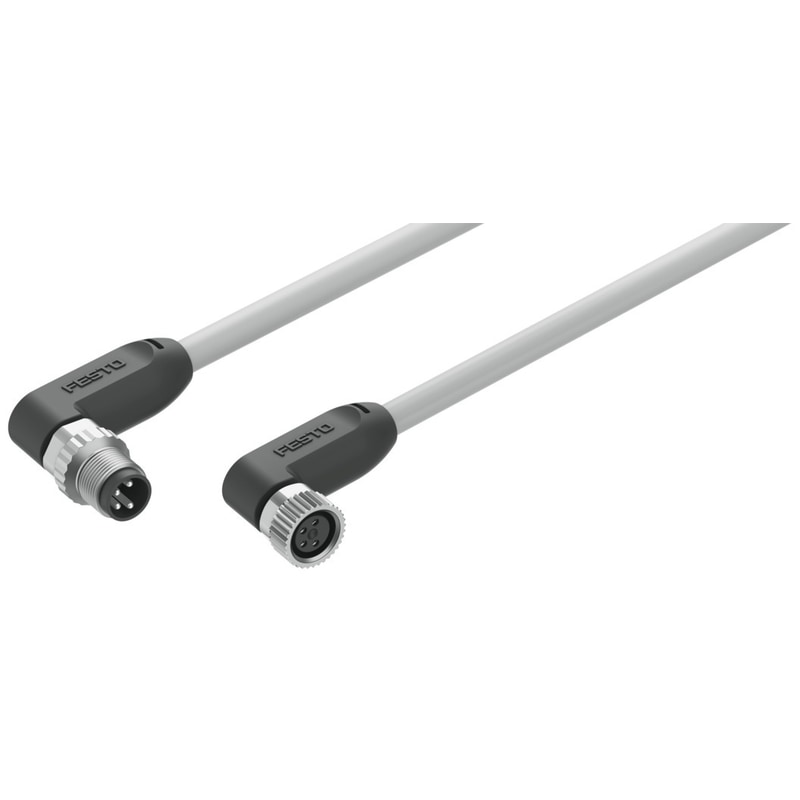

| Conforms to standard | EN 61076-2-104 |
|---|---|
| Explosion prevention and protection | The information in the certificate must be observed! Zone 2 (ATEX) Zone 22 (ATEX) |
| Cable designation | Without label holder |
| Product weight | 84 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | Screw-type lock with hexagon AF 9 and longitudinal knurl |
| Electrical connection for input 1, connection pattern | 00991872 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Angled |
| Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 2, number of pins/wires | 4 |
| Electrical connection 2, occupied pins/wires | 4 |
| Electrical connection 2, type of mounting | Screw-type lock with hexagon AF 9 and longitudinal knurl |
| Electrical connection 2, connection pattern | 00991171 |
| DC operating voltage range | 0 V … 30 V |
| Nominal operating voltage DC | 24 V |
| Operating voltage range AC | 0 V … 30 V |
| Nominal operating voltage AC | 24 V |
| Current rating at 40°C | 5.6 A |
| Note on acceptable current load at 40°C | 5.3 A at 60°C |
| Surge resistance | 0.8 kV |
| Protective earth connection | Not available |
| Shield | no |
| Cable length | 2 m |
| Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 15 mm |
| Bending radius, flexible cable installation | ≥ 50 mm |
| Cable diameter | 4.8 mm |
| Cable diameter tolerance | ± 0.15 mm |
| Cable design | 4 x 0.5 mm² |
| Nominal conductor cross section | 0.5 mm² |
| Degree of protection | IP65 IP67 IP69K |
| Note on degree of protection | In mounted state |
| Special features | Oil-resistant |
| Ambient temperature | -40 °C … 85 °C |
| Ambient temperature with flexible cable installation | -20 °C … 85 °C |
| Storage temperature | -40 °C … 85 °C |
| Note on materials | RoHS-compliant Halogen-free |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Black |
| Housing material | TPE-U(PUR) |
| Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated |
| Seals material | FPM |
| Material of pin contacts | Copper alloy, gold-plated |
| Insulating sheath material | PP |
| Weight | 0.194227 lbs |
|---|---|
| Dimensions | 7.086614 × 0.787402 × 0.787402 in |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connector system | A-coded, M8x1, to EN?61076-2-104 |
| Electrical connection 2, connection type | Plugs |
| Electrical connection 2, connector system | A-coded to EN 61076-2-104, M8x1 |
| Cable length | 2 m |
