| Valve function | 2/2, closed, monostable |
|---|---|
| Fluid connector | 8x UNF1/4-28 |
| Type of mounting | With through-hole for M3 screwOptionally:With internal thread and centering sleeve |
| Materials in contact with the media | ETFEPEEKHigh-alloy stainless steelFFPM |
| Mounting position | Any |
| Note on fluid connector | Fitting enclosed for pneumatic tubing with 3 mm outside diameter |
| Duty cycle | 1 |
| Note on power consumption | Specification per pneumatic valve |
| Material of dosing needle | High-alloy stainless steel |
| Material number for dosing needle | 1.4301 |
| Electrical connection | Sub-DPlug9-pin |
| Max. electrical power consumption | 1.8 W |
| Width dimension | 9 mm |
| Nominal width of dosing needle | 1 mm |
| Storage temperature | 5 °C … 40 °C |
| Product weight | 220 g |
| Operating pressure | 0 bar … 0.5 bar |
| Nominal width | 0.8 mm |
| Type code | VTOE |
| Sealing principle | Soft |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Nominal operating voltage DC | 24 V |
| Operating medium | Gaseous mediaLiquid media |
| Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Temperature of medium | 5 °C … 50 °C |
| Degree of protection | IP30 |
| Ambient temperature | 5 °C … 40 °C |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Actuation type | Electrical |

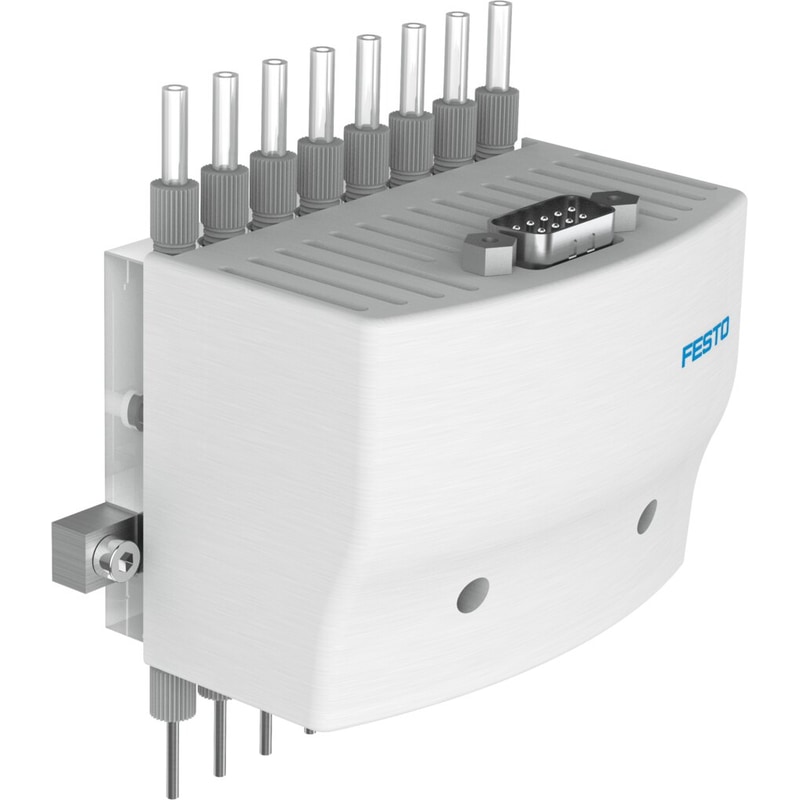

VTOE
VTOE-8-D9-T3-M22C-08-F-P-P-M
$3,098.06
Non-contact dispensing of the smallest of quantities: The high-precision dispense head VTOE is a complete modular solution consisting of a manifold duct plate, dosing valves, and nozzles. Media-separated valves prevent cross-contamination and ensure optimal flushing.
| Weight | 0.74406 lbs |
|---|---|
| Dimensions | 5.905512 × 5.511811 × 3.543307 in |
