| Electrical connection output, function | Sensor |
|---|---|
| Electrical connection for input, connection pattern | 995626 |
| Electrical connection input, function | Vacuum generatorEjector pulse |
| Electrical connection input, connection type | 2x plugs |
| Electrical connection output, connection type | Cable |
| Electrical connection output, connection technology | Open end |
| Electrical input connection, mounting type | Snap-locking |
| Material of cable sheath | PVC |
| Cable characteristic | Suitable for energy chains |
| Electrical input connection, connection technology | Connection diagram H |
| Method of measurement | Piezoresistive pressure sensor with display |
| Color cable sheath | Gray |
| Cable diameter tolerance | ± 0.1 mm |
| Electrical connection, input, number of pins/wires | 2 |
| Electrical output connection, number of pins/wires | 3 |
| Nominal width of Laval nozzle | 0.7 mm |
| Nominal conductor cross section | 0.14 mm² |
| Cable diameter | 2.9 mm |
| Cable length | 2.5 m |
| DC sensor operating voltage range | 18 V … 30 V |
| Width dimension | 15 mm |
| Type code | OVEL |
| Muffler construction type | Open |
| Ejector characteristics | StandardHigh vacuum |
| Grade of filtration | 40 µm |
| Manual override | Non-detenting |
| Integrated function | Electric ejector pulseFlow controlPressure sensorCompressed air filterShut off valve, electricPneumatic muffler open |
| Design | T-shape |
| Switching element function | SwitchableN/O contactN/C contact |
| Switching function | Freely programmable |

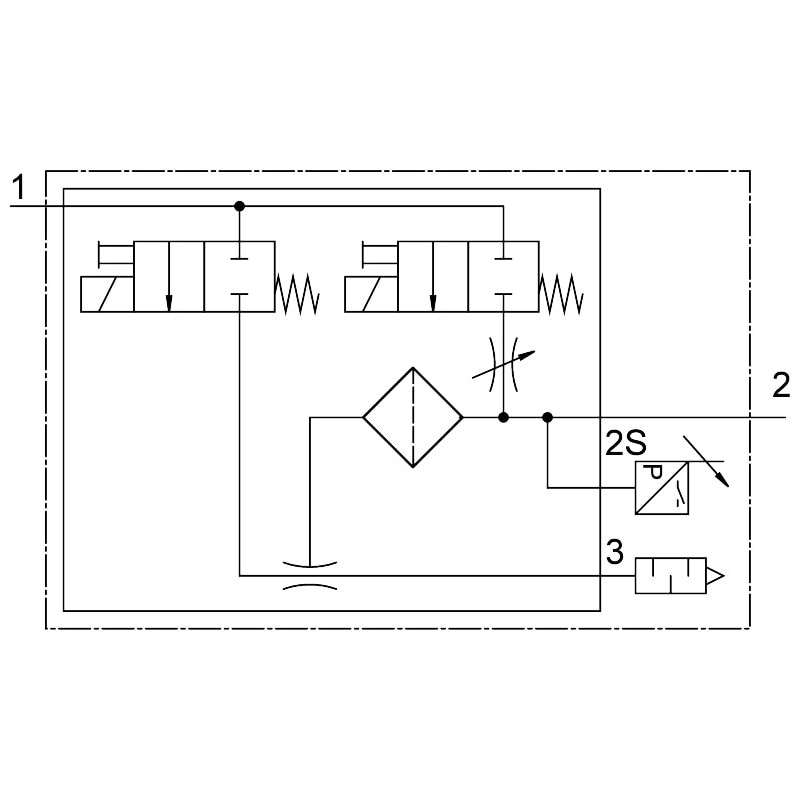

| Symbol | 995804 |
| Valve function | Closed |
| Display type | 2-digitLED display |
| Setting options | IO-Link®Teach-inVia display and pushbuttons |
| Operating pressure for max. suction rate | 4 bar |
| Operating pressure | 2 bar … 7 bar |
| Operating pressure for max. vacuum | 4.5 bar |
| Max. vacuum | 0.92 |
| Nominal operating pressure | 4 bar |
| Max. suction rate with respect to atmosphere | 17 l/min |
| Air supply time at nominal operating pressure | 1.2 s |
| DC operating voltage range | 21.6 V … 26.4 V |
| Duty cycle | 1 |
| Switching output | PNP/NPN switchable |
| Coil characteristics | 24 V DC: 1.0 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | 0 °C … 50 °C |
| Noise level at nominal operating pressure | 61 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C … 50 °C |
| Product weight | 91 g |
| Pressure measuring range | -1 bar … 1 bar |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm |
| Pneumatic connection 3 | Pneumatic muffler open |
| Vacuum connection | For pneumatic tubing outside diameter 4 mm |
| Material of connecting thread | POM |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Female nozzle material | POM |
| Compressed air filter material | POM |
| Housing material | PA-reinforced |
| Material of adjusting screw | Steel |
| Muffler material | PE |
| Material of screws | Steel |
| Material of jet nozzle | Wrought aluminum alloy |
OVEL

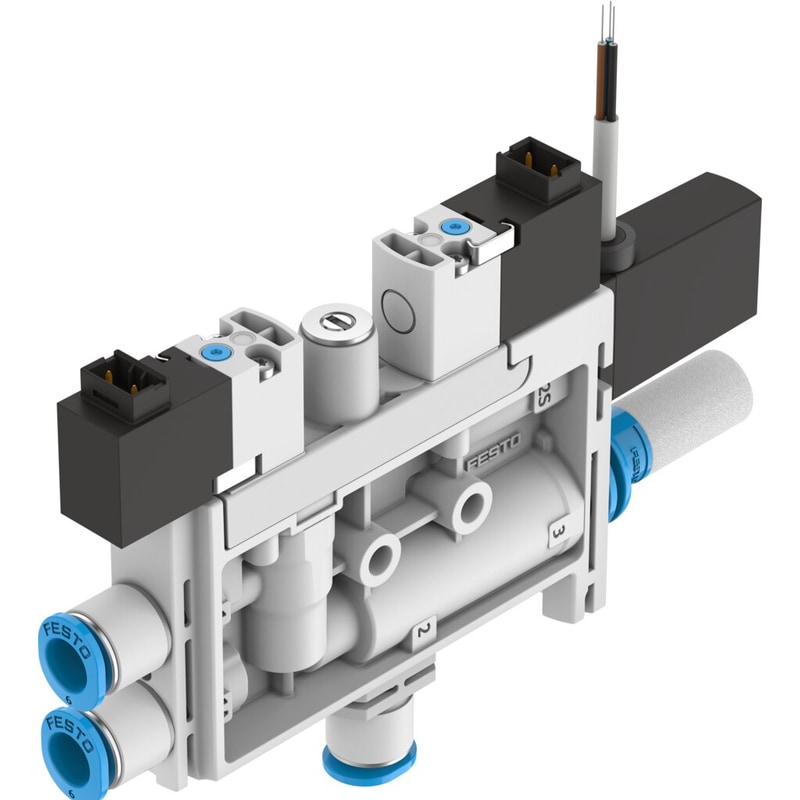

OVEL-7-H-15-PQ-VQ4-UA-C-A-V1PNLK-H3
$379.89
Perfect for your highly dynamic, local handling applications in the electronics industry: the small, lightweight OVEL. With IO-Link® for simple commissioning and parameterization.
| Weight | 0.308647 lbs |
|---|---|
| Dimensions | 5.984252 × 2.952756 × 1.771654 in |
| Nominal size, Laval nozzle | 0.7 mm |
| Max. vacuum | 0.92 |
| Max. suction flow rate against atmosphere | 17 l/min |
