Valve function | 3/2, monostable |
---|---|
Lap | Zero overlap |
Operating pressure | -0.095 MPa … 1 MPa |
Actuation type | Mechanical |
Width | 20 mm |
Standard nominal flow rate | 870 l/min |
Pneumatic working port | 1/4 NPT |
Operating pressure | -0.95 bar … 10 bar |

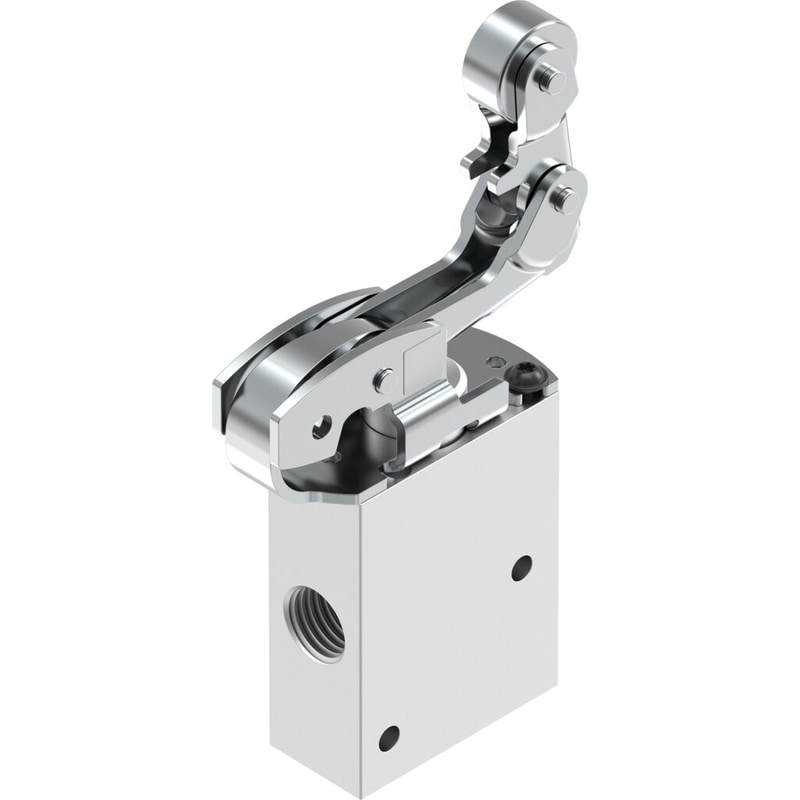

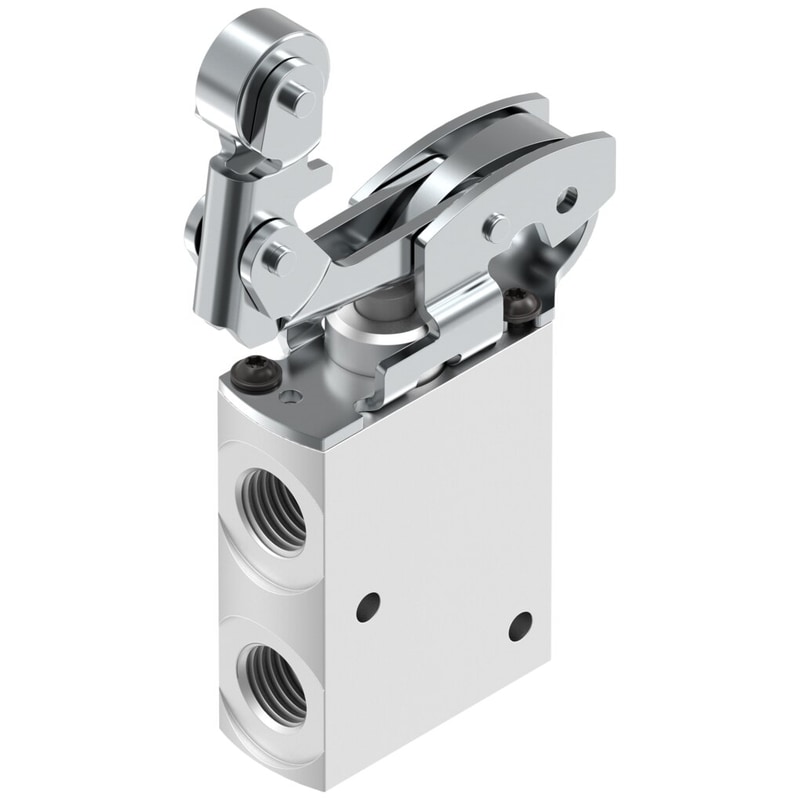

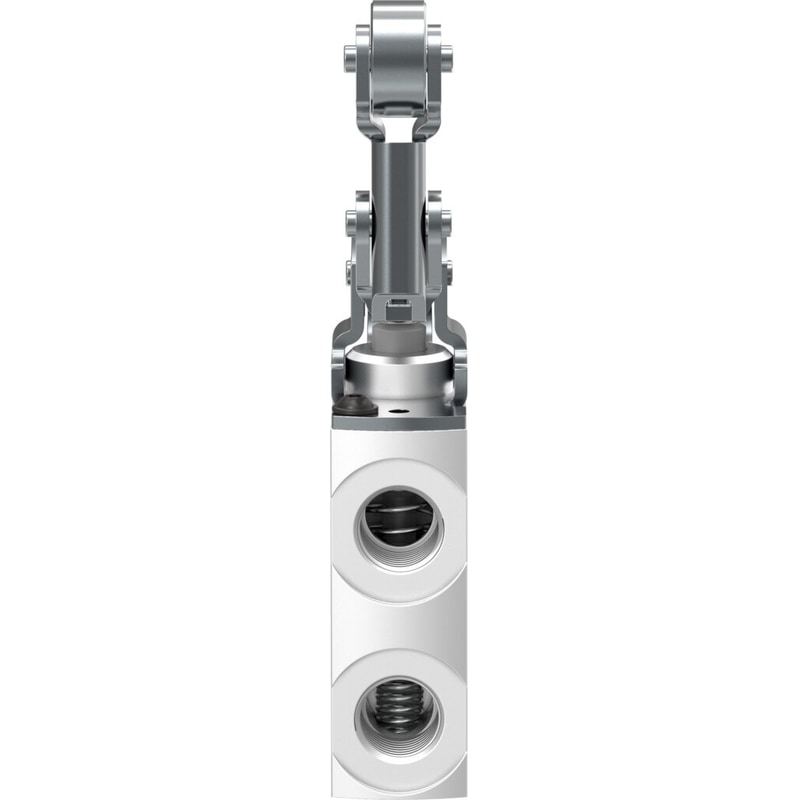

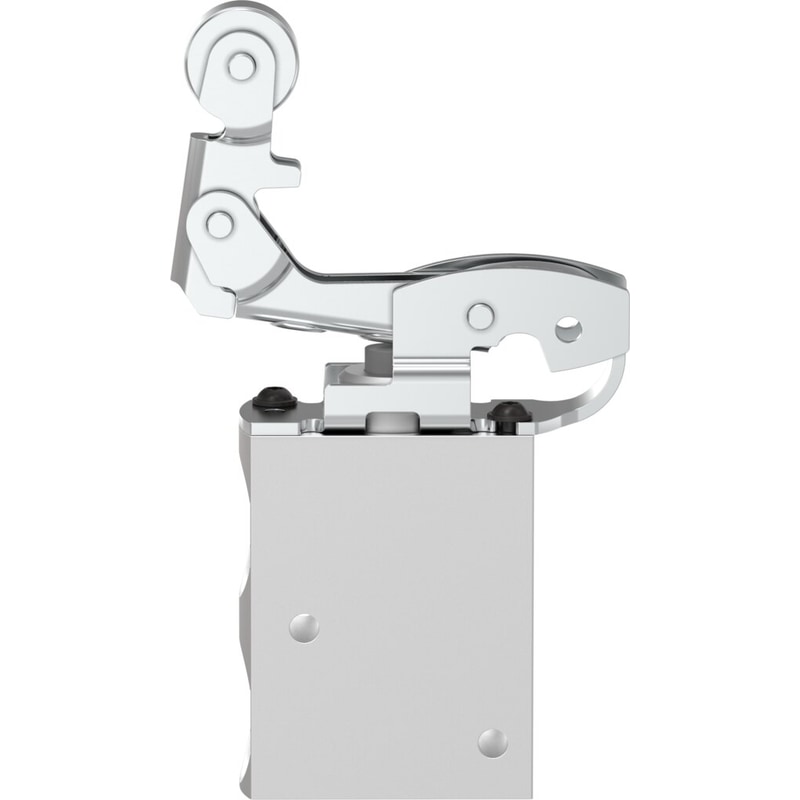

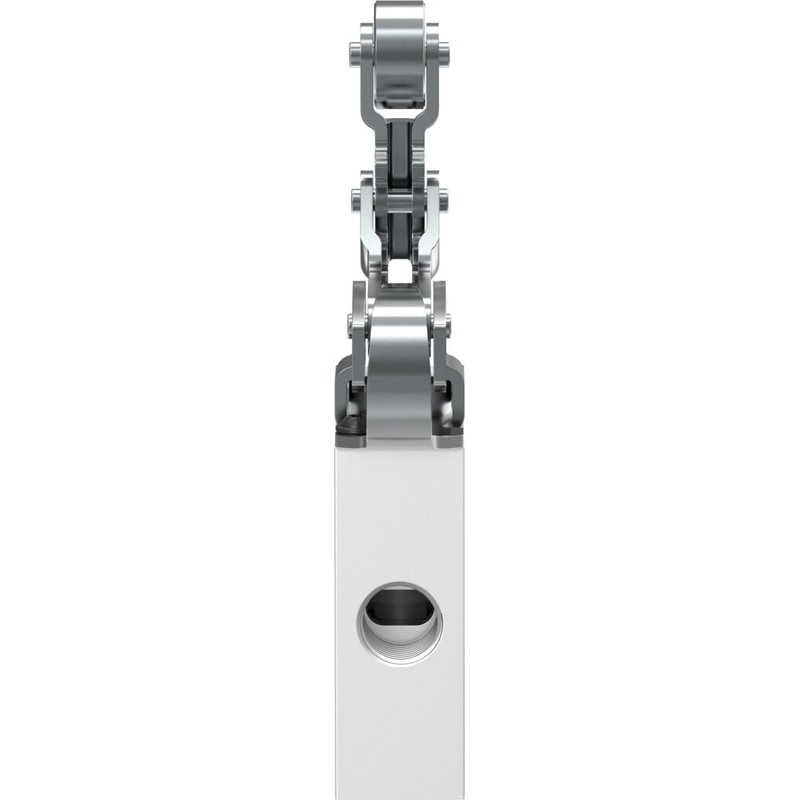

Design | One-way roller leverPlate seat |
Reset method | Mechanical spring |
Max. stroke limit (hard) | 11 mm |
Nominal width | 6 mm |
Type code | VMEF |
Application note | Risk of pinching |
Sealing principle | Soft |
Mounting position | Any |
Type of control | Direct |
Flow direction | Reversible |
Symbol | 00991348 |
Max. actuating speed with lateral actuation | 0.7 m/s |
Max. switching frequency | 3 Hz |
Cam angle | 30 deg |
Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 – Low corrosion stress |
Temperature of medium | -10 °C … 60 °C |
Ambient temperature | -10 °C … 60 °C |
Note on ambient temperature | Influence of heat on wear |
Actuating force | 32.7 N |
Product weight | 218 g |
Type of mounting | With through-hole |
Pneumatic connection 1 | 1/4 NPT |
Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | 1/4 NPT |
Note on materials | RoHS-compliant |
Actuator attachments material | Steel, galvanized |
Seals material | NBR |
Housing material | Wrought aluminum alloy, anodized |
