| Drive pinion effective diameter | 39.79 mm |
|---|---|
| Working stroke | 800 mm |
| Size | 80 |
| Stroke reserve | 0 mm |
| Toothed belt elongation | 0.00168 |
| Toothed belt pitch | 5 mm |
| Type code | ELGA |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Electromechanical linear axiswith toothed belt |
| Motor type | Servo motorStepper motor |
| Measuring principle of linear potentiometer | Incremental |
| Max. acceleration | 50 m/s² |
| Max. speed | 5 m/s |
| Repetition accuracy | ±0.08 mm |
| Duty cycle | 1 |
| Degree of protection | IP40 |
| Ambient temperature | -10 °C … 60 °C |
| 2nd moment of area Iy | 257180 mmâ´ |
| 2nd moment of area Iz | 913660 mmâ´ |
| Max. driving torque | 15.92 Nm |
| Max. force Fy | 2500 N |
| Max. force Fz | 3050 N |
| Max. torque Mx | 36 Nm |
| Max. torque My | 228 Nm |
| Max. torque Mz | 228 Nm |
| Max. feed force Fx | 800 N |
| No-load driving torque | 1 Nm |
| Torsion moment of inertia It | 159250 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 0.93 kgcm² |
| Mass moment of inertia JL per kg of payload | 3.96 kgcm² |
| Mass moment of inertia JO | 9.82 kgcm² |
| Mass moment of inertia JW for additional slide | 7.61 kgcm² |
| Feed constant | 125 mm/U |
| Lubrication interval, distance dependent | 1000 km |
| Slide weight | 1900 g |
| Additional slide weight | 1530 g |
| Additional weight per 10Â mm stroke | 51 g |
| Basic weight with 0Â mm stroke | 4700 g |
| Profile material | AnodizedWrought aluminum alloy |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover strip material | Stainless steel strip |
| Drive cover material | Wrought aluminum alloyAnodized |
| Slide carriage material | Stainless steel |
| Guide rail material | Stainless steel |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloyAnodized |
| Toothed belt clamping component material | Cast stainless steel |
| Toothed belt material | Polychloroprene with glass cord and nylon coating |
ELGA-TB-KF
ELGA-TB-KF-80-800-0H
$3,237.40

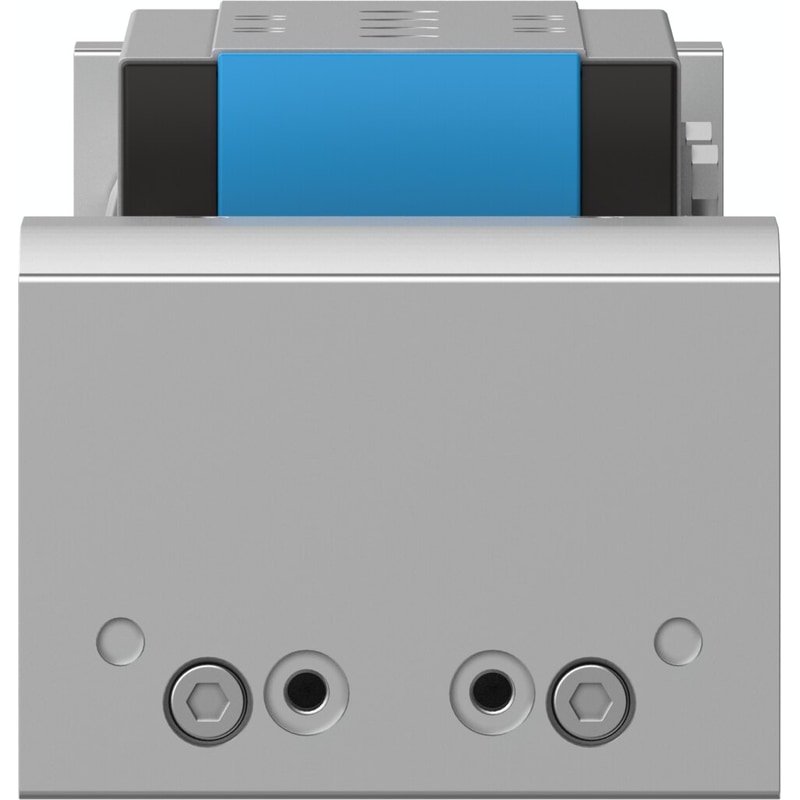

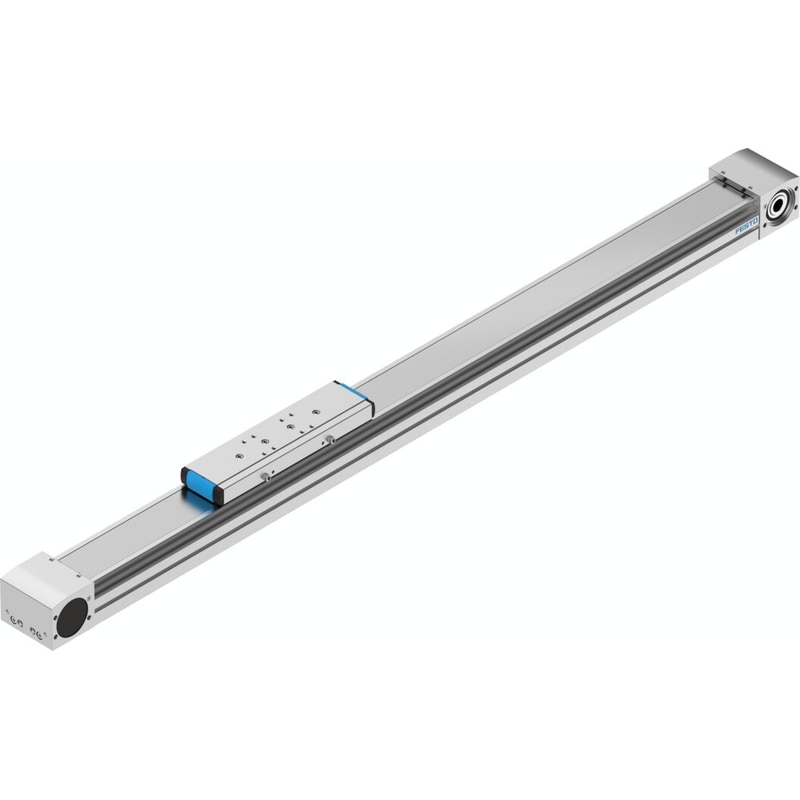

Sturdy and very fast: The belt driven linear actuator ELGA-TB will master your tasks without breaking a sweat. Its internal guides (recirculating ball bearing, roller and sliding guides) and sturdy cover strip make it the perfect choice to handle even your toughest application.
| Weight | 20.723453 lbs |
|---|---|
| Size | 80 |
| Max. feed force Fx | 800 N |
| Repetition accuracy | ?0.08?mm |
| Working stroke | 800 mm |
