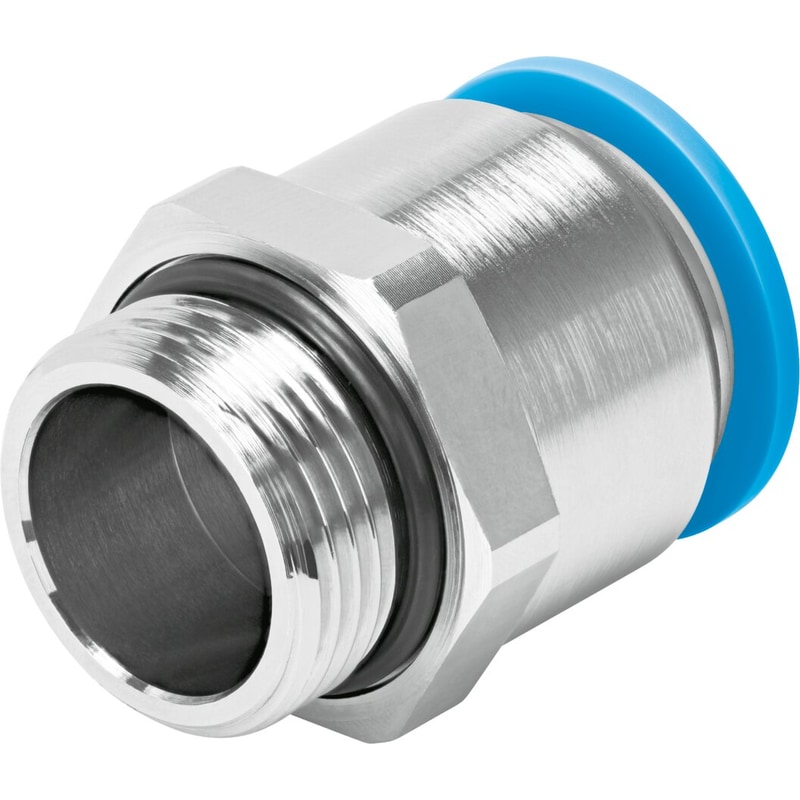

QS-G3/4-22

$11.66

SKU: 8040613
UNSPSC: 27131613
GTIN: 4052568286118

SKU: 8040613 Category: Tag:
Festo

push-in fitting QS-G3/4-22 Size=Standard, Nominal size=20 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1

Fitting Type Male Straight
Size  Standard
Nominal size  20 mm
Type of seal on screw-in stud  Sealing ring
Assembly position  Any
Container size  1
Design structure  Push/pull principle
Operating pressure complete temperature range  ‘-0.95 … 14 bar
Temperature dependent operating pressure  ‘-0.95 … 14 bar
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com
Note on operating and pilot medium  Lubricated operation possible
Corrosion resistance classification CRC  1 – Low corrosion stress
Ambient temperature  ‘-20 … 80 °C
Nominal tightening torque  20 Nm
Tolerance for nominal tightening torque  ± 20 %
Product weight  93.2 g
connection 1  Male thread G3/4
connection 2  22mm outside diameter, for tubing
Colour of release ring  blue
Materials note  Conforms to RoHS
Fitting Type

Male Straight

Size

Standard

Nominal size

20 mm

Type of seal on screw-in stud

Sealing ring

Assembly position

Any

Container size

1

Design structure

Push/pull principle

Operating pressure complete temperature range

-0.95 … 14 bar

Temperature dependent operating pressure

-0.95 … 14 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at http://www.festo.com

Note on operating and pilot medium

Lubricated operation possible

Corrosion resistance classification CRC

1 – Low corrosion stress

Ambient temperature

-20 … 80 °C

Nominal tightening torque

20 Nm

Tolerance for nominal tightening torque

± 20 %

Product weight

93.2 g

connection 1

Male thread G3/4

connection 2

22mm outside diameter, for tubing

Colour of release ring

blue

Materials note

Conforms to RoHS
