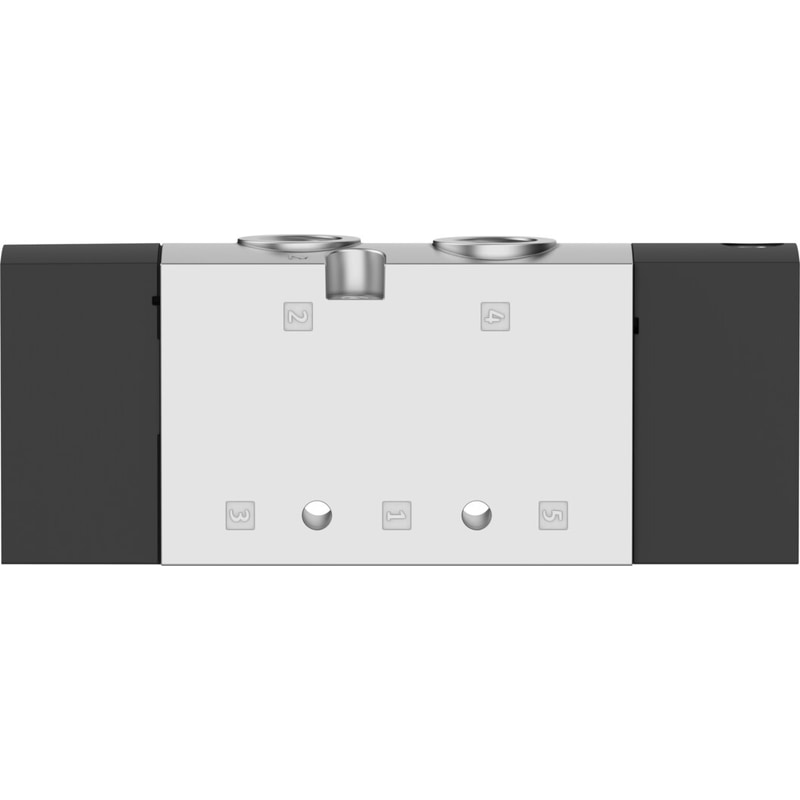

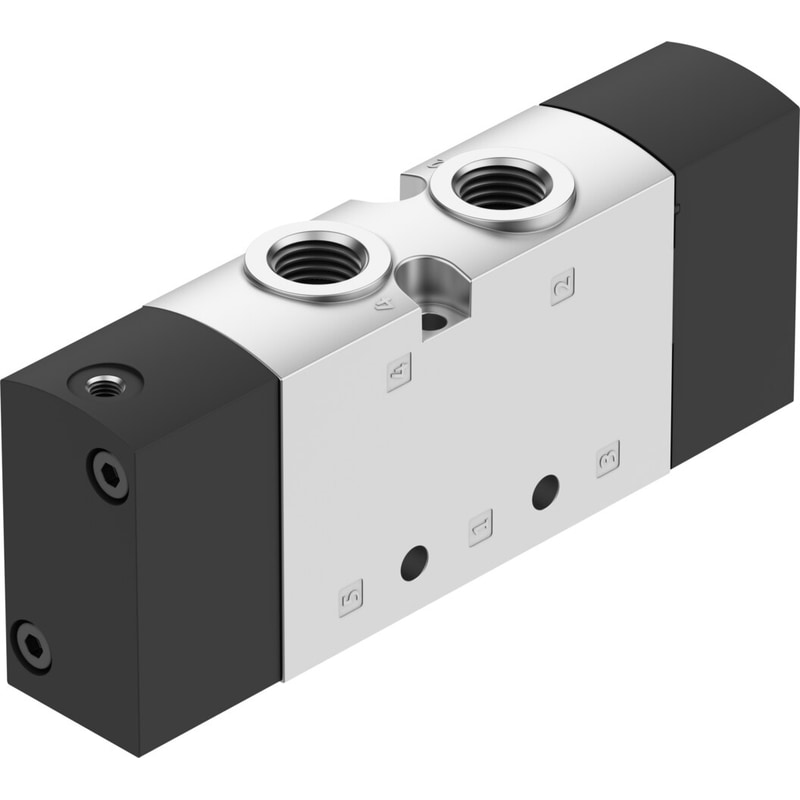

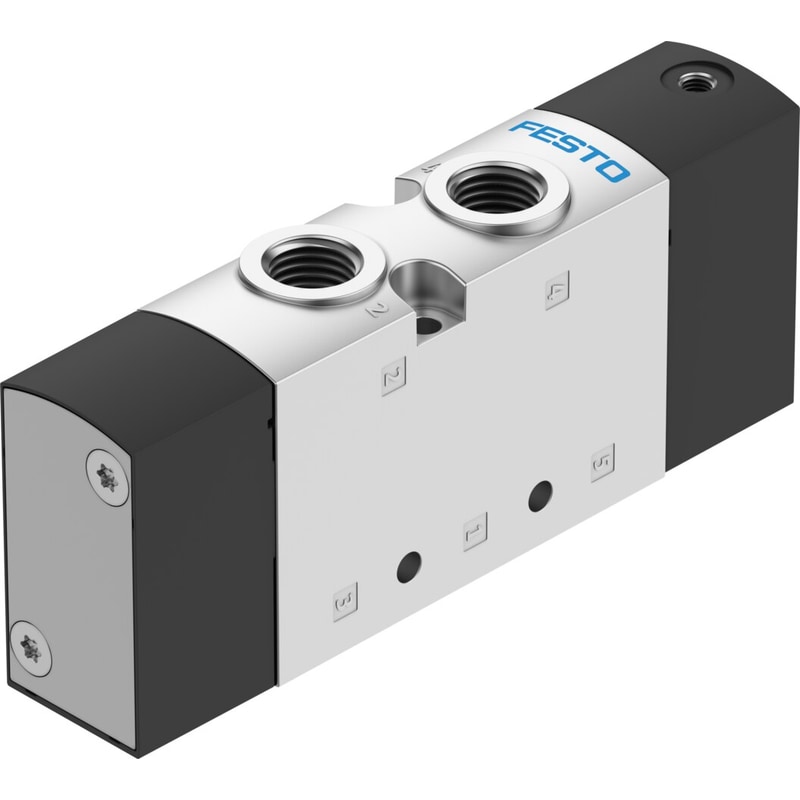

| Valve function | 5/2, monostable |
|---|---|
| Actuation type | Pneumatic |
| Valve size | 26.5mm |
| Standard nominal flow rate | 1000l/min |
| Pneumatic working port | G1/4 |
| Operating pressure | 0.25MPa |
| Operating pressure | 2.5bar |
| Structural design | Plate seat |
| Reset method | Mechanical spring |
| Certification | c UL us – Recognized (OL) |
| Nominal width | 6.6mm |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | None |
| Type of control | Direct |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |
| Symbol | 00991001 |
| Lap | Underlap |
| Pilot pressure MPa | 0.25MPa |
| Pilot pressure | 2.5bar |
| Switching time off | 23ms |
| On switching time | 8ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C |
| Product weight | 317g |
| Type of mounting | Optionally: |
| Venting hole connection | Not ducted |
| Pilot air port 14 | M5 |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Seals material | HNBR |
| Housing material | Die-cast aluminum |
| Material of screws | Steel, galvanized |
| Weight | 0.740312 lbs |
|---|---|
| Dimensions | 5.15748 × 2.362205 × 1.338583 in |
