| Valve function | 5/2, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Width | 26 mm |
| Standard nominal flow rate | 1100 l/min |
| Pneumatic working port | G1/4Sub-base, size 26 mm as per ISO 15407-1Size 01 sub-base as per VDMA 24563 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar … 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | IP65NEMA 4 |
| Certification | CSA (OL)c UL us – Recognized (OL) |
| Type code | VSVA |
| Exhaust air function | Via throttle plateVia individual sub-baseWith flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Non-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | ExternalInternal |
| Flow direction | Any |
| Symbol | 991190 |
| Signal status display | LED |
| Pilot pressure | 3 bar … 10 bar |
| Flow rate of pneumatic valve on individual sub-base | 1200 l/min |
| Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 1350 l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1100 l/min |
| Switching time off | 65 ms |
| On switching time | 20 ms |
| Duty cycle | 1 |
| Max. positive test pulse with 0 signal | 1200 µs |
| Max. negative test pulse on 1 signal | 1100 µs |
| Nominal operating voltage DC | 24 V |
| Coil characteristics | 24 V DC: 1.6 W |
| Surge resistance | 2.5 kV |
| Contamination level | 3 |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Relative air humidity | 0 – 90 % |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 293 g |
| Electrical connection | as per ISO 15407-2Plug-in |
| Type of mounting | On sub-base |
| Pilot air port 12/14 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pilot exhaust air port 82/84 | Not ducted as per standardOptionally:Ducted |
| Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-2 |
| Note on materials | RoHS-compliant |
| Seals material | NBRFPMHNBR |
| Housing material | Die-cast aluminumPA |
| Material of screws | Steel, galvanized |
VSVA

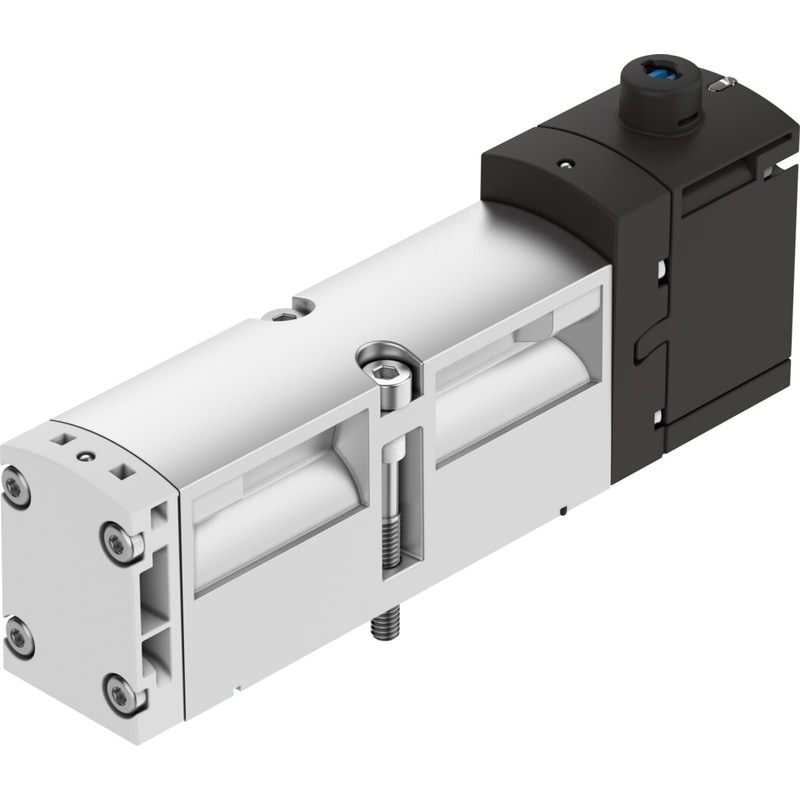

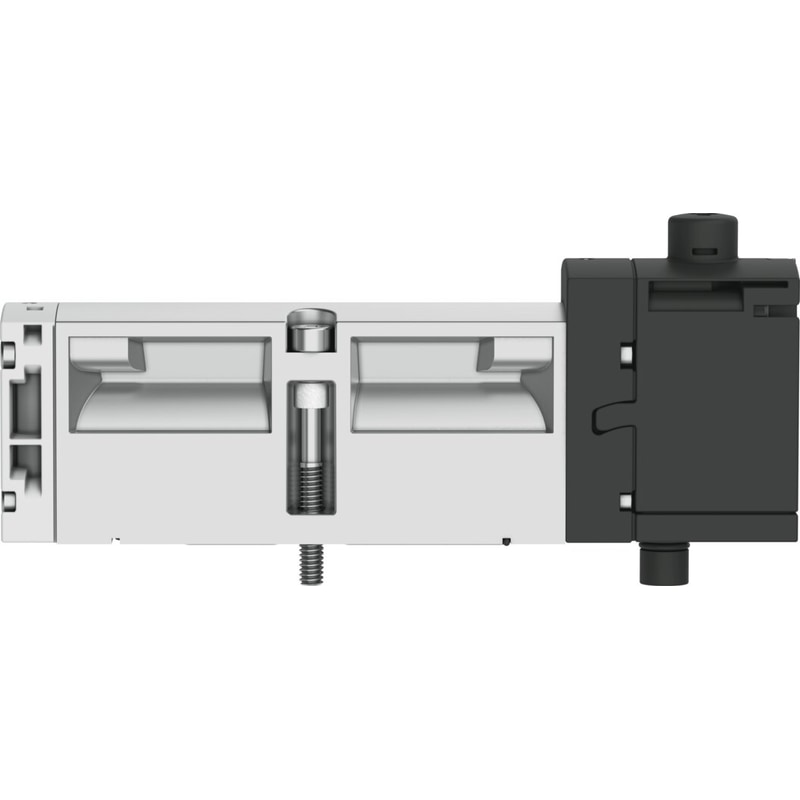

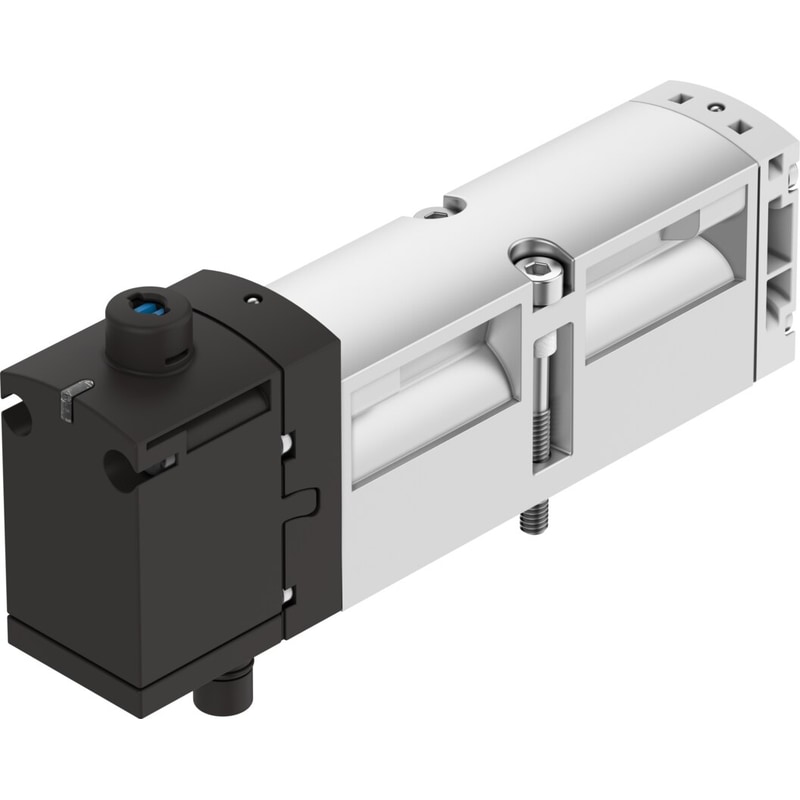

VSVA-B-M52-MZH-A1-1T1L
$153.89
Standard valve ISO 15407-1 with electric central power supply and common ground.
| Weight | 0.617294 lbs |
|---|---|
| Dimensions | 6.102362 × 3.346457 × 1.181102 in |
