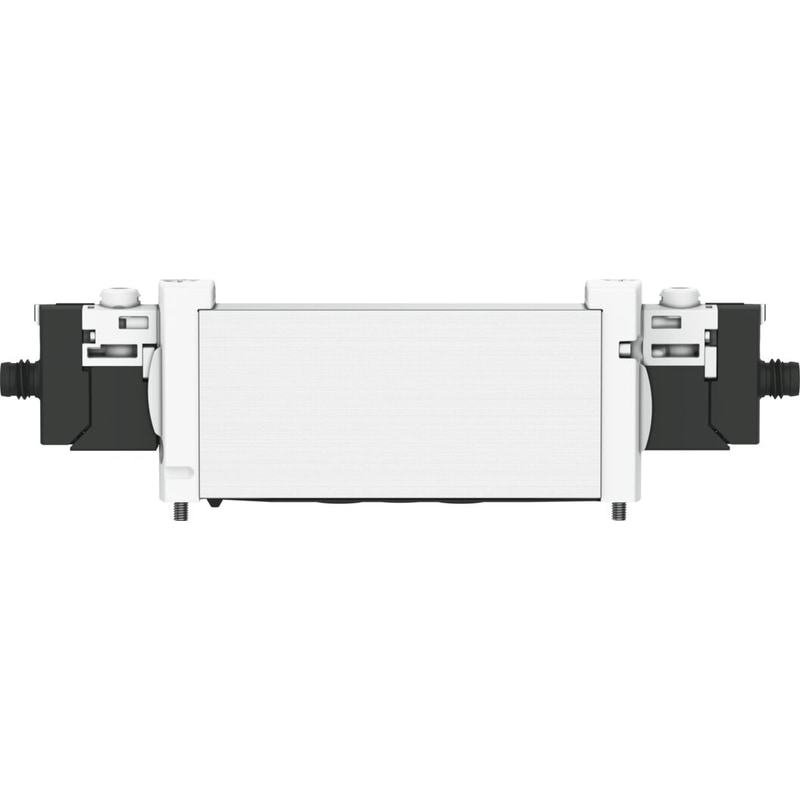

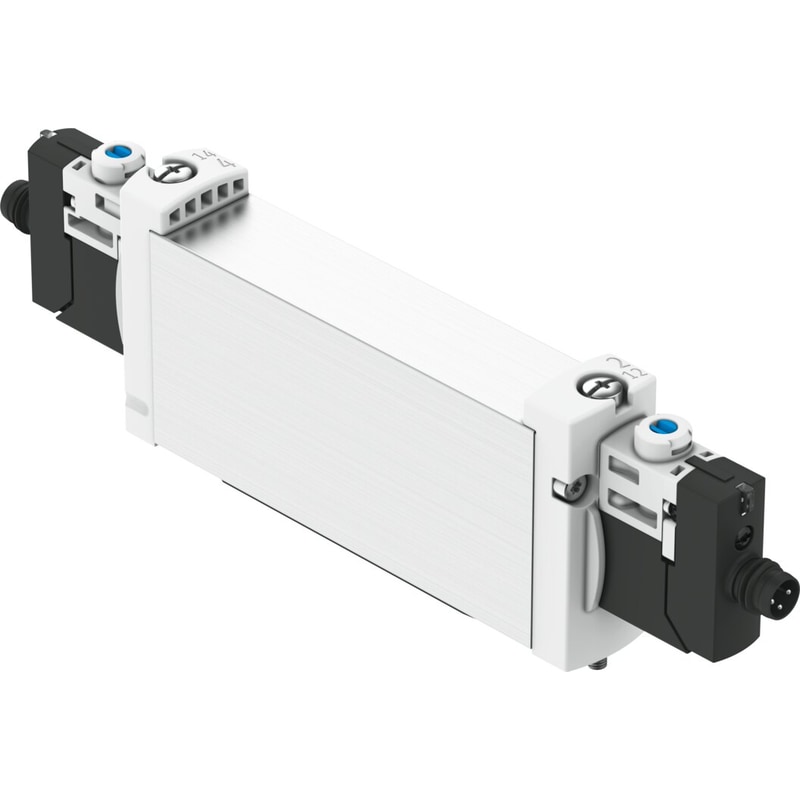

The interior of this universal valve has a new design that is an outstanding combination of flow intensity and compact design. Both as an individual valve or as a valve manifold, the entire VUVG family is designed to cater precisely for all requirements.
Valve function | 5/3, pressurized |
---|---|
Lap | Indefinite overlap |
Actuation type | Electrical |
Valve size | 18 mm |
Standard nominal flow rate | 950 l/min |
Pneumatic working port | Flange |
Operating voltage | 24V DC |
Operating pressure | -0.9 bar … 10 bar |
Design | Piston gate valve |
Reset method | Mechanical spring |
Degree of protection | IP65With plug socket |
Certification | RCM compliance markc UL us – Recognized (OL)c CSA us (OL) |
Nominal width | 6.3 mm |
Type code | VUVG |
Exhaust air function | With flow control option |
Sealing principle | Soft |
Mounting position | Any |
Manual override | CoveredNon-detentingDetenting |
Type of control | Pilot-controlled |
Pilot air supply port | External |

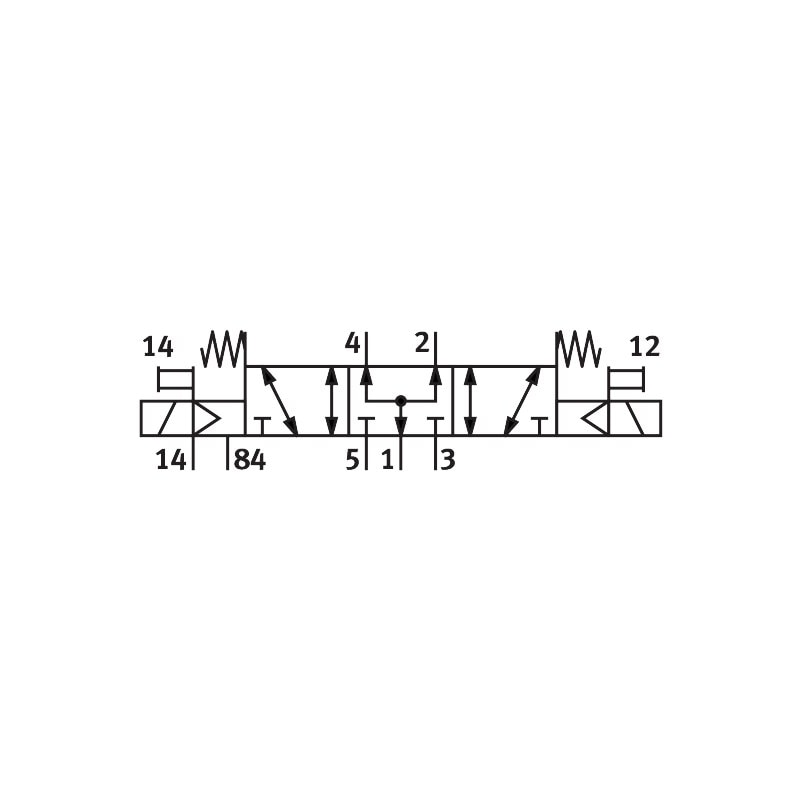

Symbol | 00991128 |
Pilot pressure | 3 bar … 8 bar |
Switching time off | 55 ms |
On switching time | 18 ms |
Changeover time | 29 ms |
Duty cycle | 100% |
Max. positive test pulse with 0 signal | 700 µs |
Max. negative test pulse on 1 signal | 900 µs |
Coil characteristics | 24 V DC: 1.0 W |
Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
