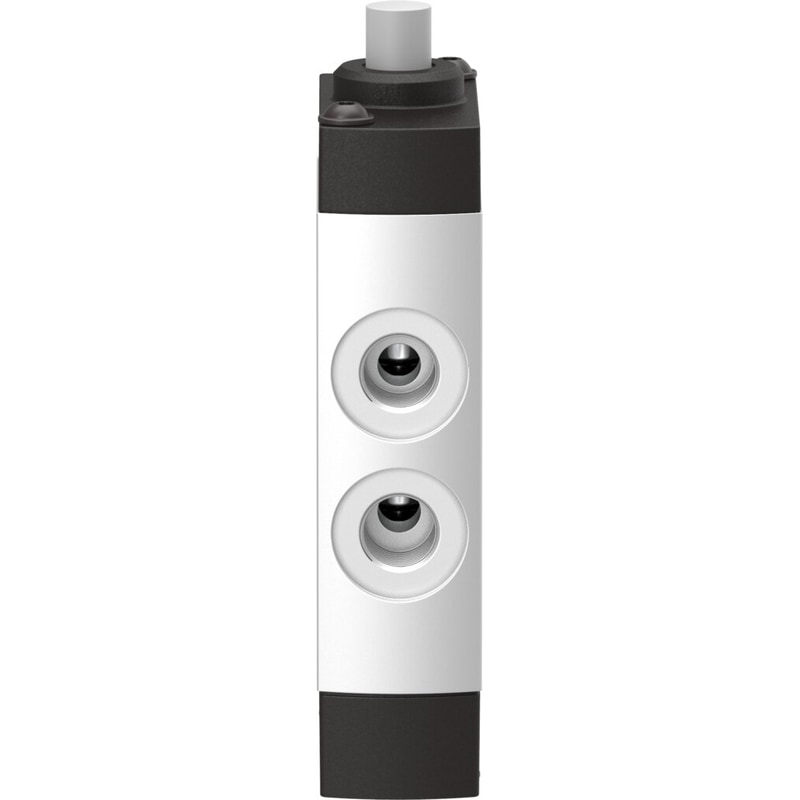

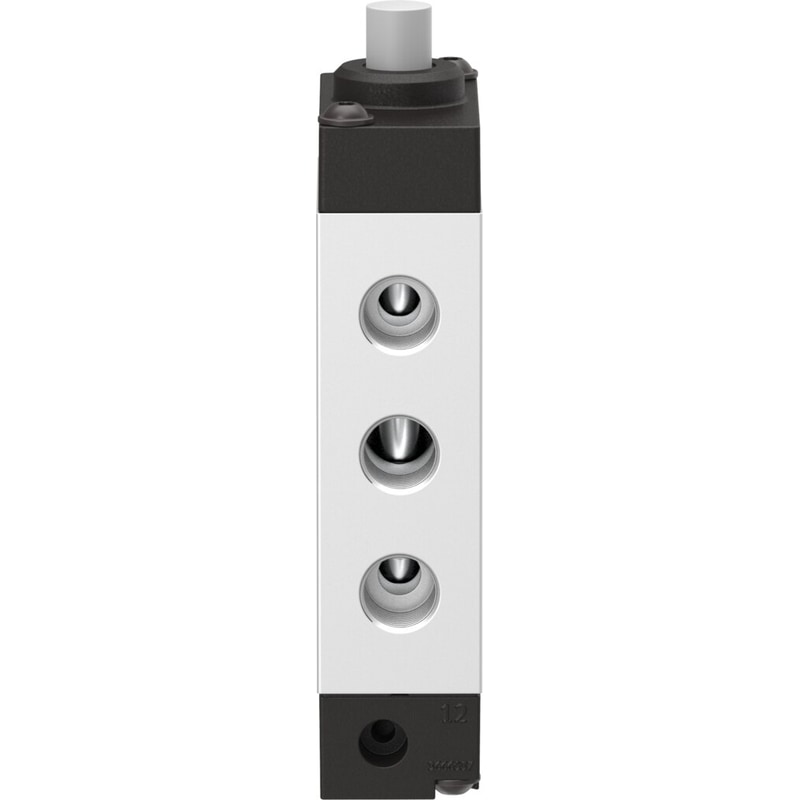

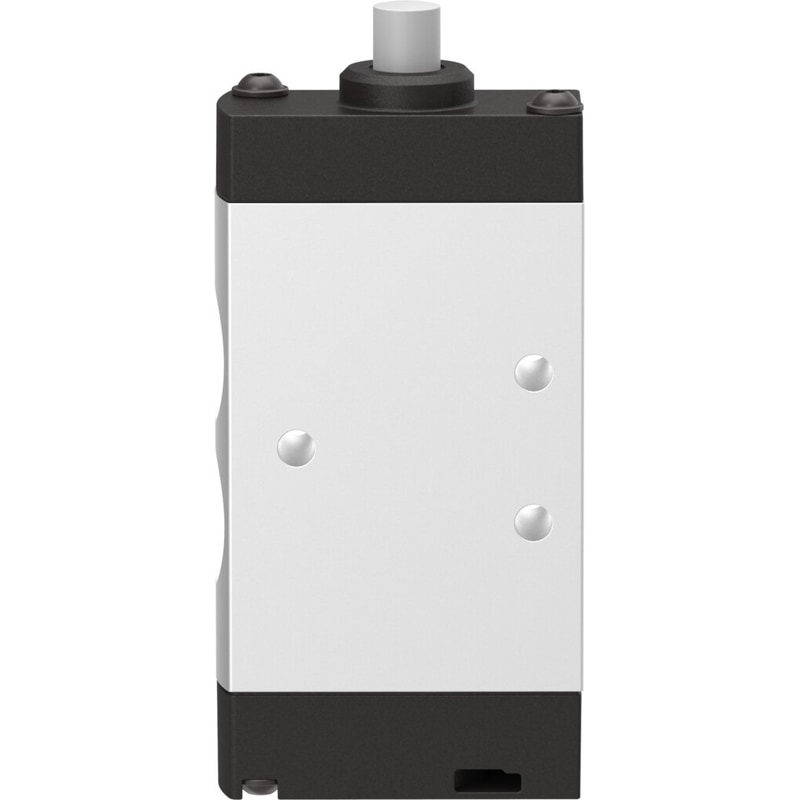

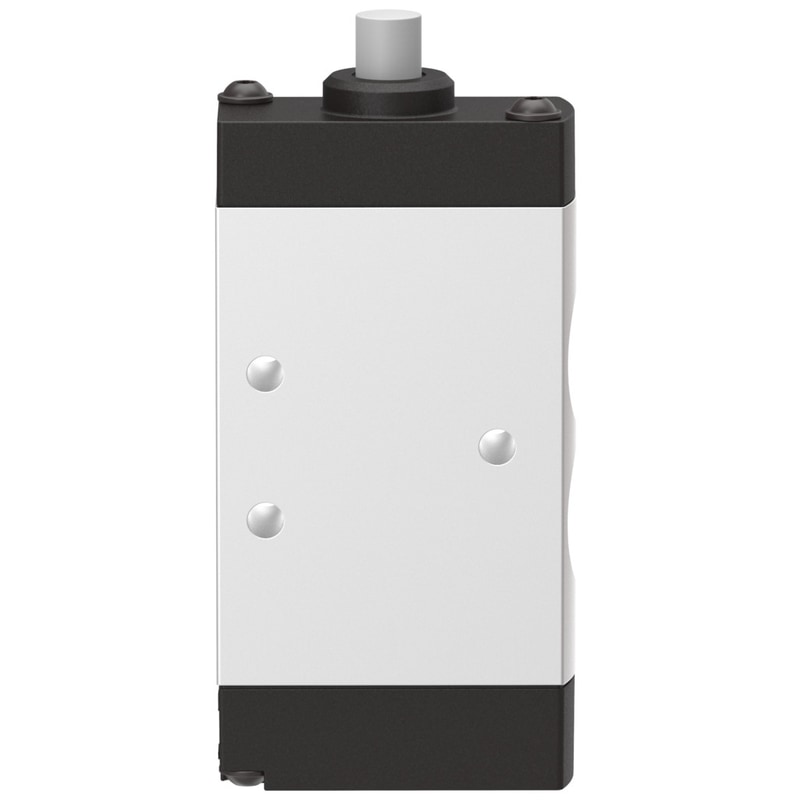

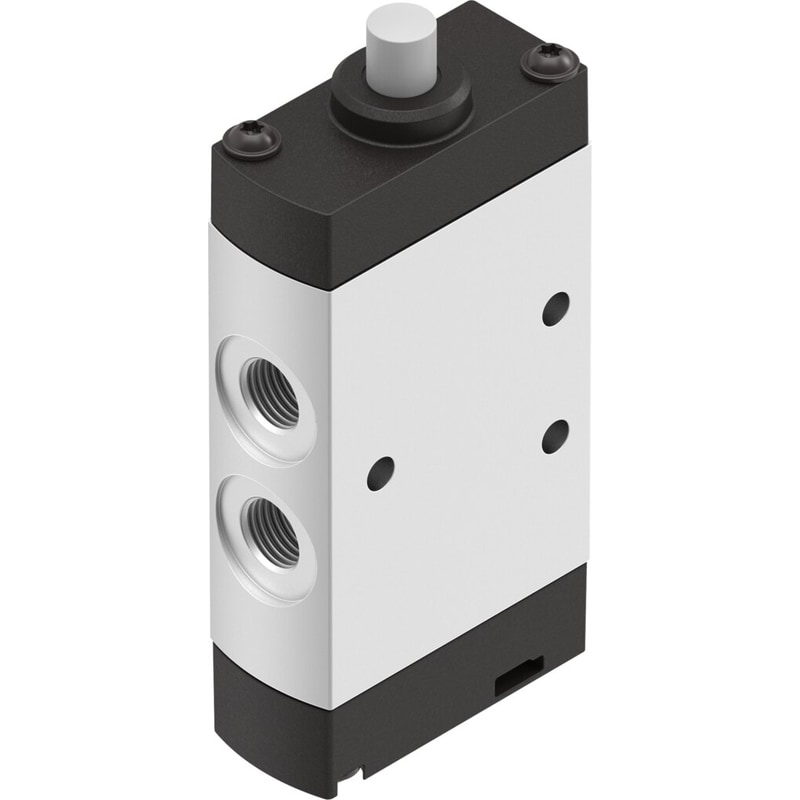

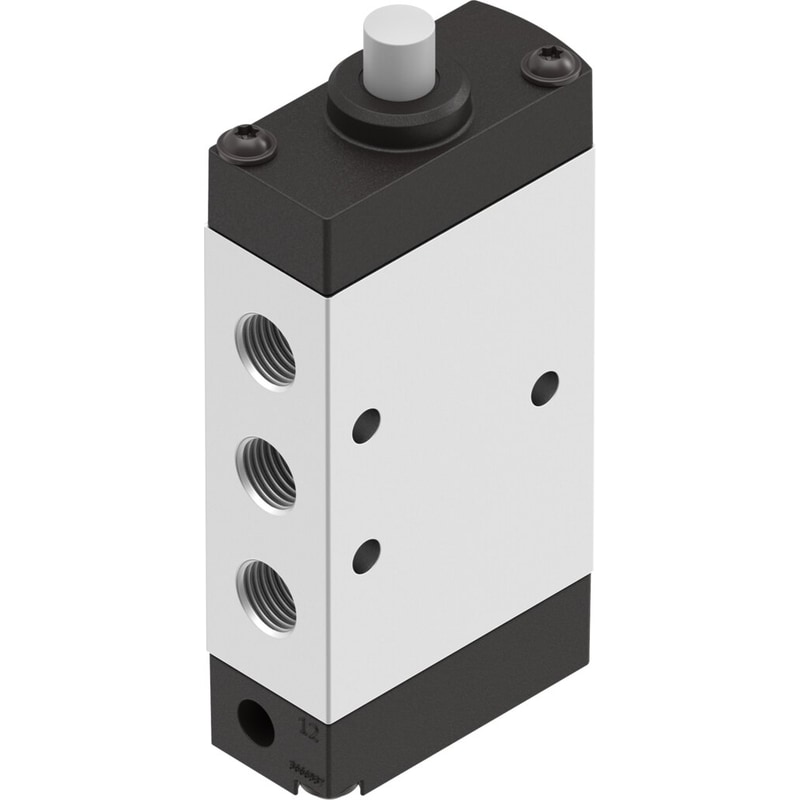

Valve function | 5/2, monostable |
---|---|
Lap | Overlap |
Operating pressure | -0.095 MPa … 1 MPa |
Actuation type | Mechanical |
Width | 20 mm |
Standard nominal flow rate | 750 l/min |
Pneumatic working port | 1/8 NPT |
Operating pressure | -0.95 bar … 10 bar |
Design | Piston gate valve |
Reset method | Pneumatic spring |
Nominal width | 5.2 mm |
Type code | VMEF |
Application note | Do not use as mechanical stop |
Sealing principle | Soft |
Mounting position | Any |
Type of control | Direct |
Flow direction | Reversible |
Symbol | 00992217 |
Max. switching frequency | 3 Hz |
Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
Temperature of medium | -10 °C … 60 °C |
Ambient temperature | -10 °C … 60 °C |
Actuating force | 28 N |
Product weight | 144 g |
Type of mounting | With through-hole |
Pilot air port 12/14 | M5 |
Pneumatic connection 1 | 1/8 NPT |
Pneumatic connection 2 | 1/8 NPT |
Pneumatic connection 3 | 1/8 NPT |
Pneumatic connection 4 | 1/8 NPT |
Pneumatic connection 5 | 1/8 NPT |
Note on materials | RoHS-compliant |
Cover material | PA-reinforced |
Seals material | NBR |
Housing material | Wrought aluminum alloy, anodized |
