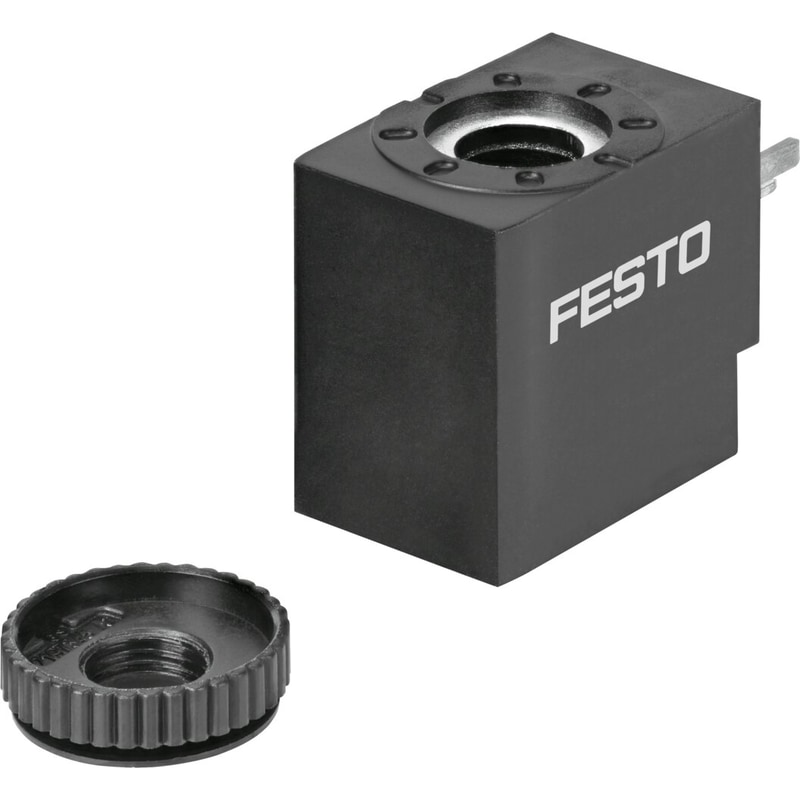

solenoid coil VACF-B-B2-7A Type B connection pattern, industry standard, 48Â VÂ AC/50-60Â Hz Assembly position=Any, Duty cycle=100%, Insulation class=H, Characteristic coil data=48 V AC: 50/60 Hz, pick-up power 3.9 VA, holding power 2.7 VA, Permissible voltage fluctuation=+/- 10 %
| Assembly position | Any |
|---|---|
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 48 V AC: 50/60 Hz, pick-up power 3.9 VA, holding power 2.7 VA |
| Permissible voltage fluctuation | ‘+/- 10 % |
| Certificate issuing department | DNVGL-TAA000011J |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Medium temperature | ‘-20 … 50 °C |
| Protection class | IP65 |
| Ambient temperature | ‘-20 … 50 °C |
| Maritime classification | see certificate |
| Electrical connection | To industry standard (11 mm)Plug pattern type B to EN 175301-803 |
| Mounting type | With knurled nut |
