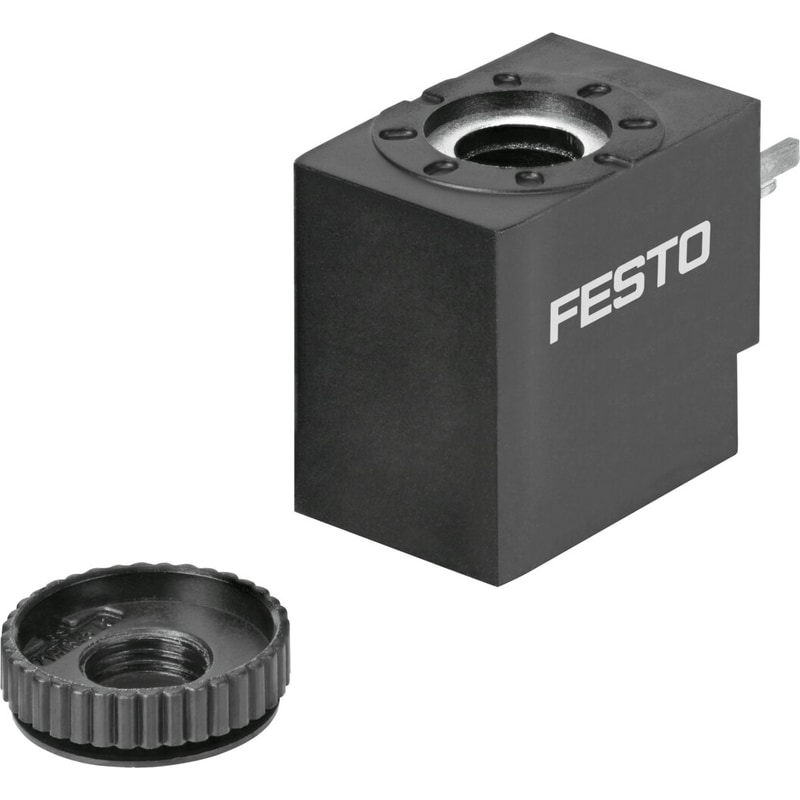

solenoid coil VACS-C-C1-1A Type C connection pattern, to ENÂ 175Â 301, 24Â VÂ AC/50-60Â Hz Assembly position=Any, Duty cycle=100%, Insulation class=H, Characteristic coil data=24 V AC: 50/60 Hz, pick-up power 2.5 VA, holding power 1.8 VA, Permissible voltage fluctuation=+/- 10 %
| Assembly position | Any |
|---|---|
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 24 V AC: 50/60 Hz, pick-up power 2.5 VA, holding power 1.8 VA |
| Permissible voltage fluctuation | ‘+/- 10 % |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Protection class | IP65 |
| Ambient temperature | ‘-10 … 50 °C |
| Authorisation | c UL us – Recognized (OL) |
| Electrical connection | to EN 175301-803Plug pattern type C to EN 175301-803 |
| Mounting type | With knurled nut |
| Materials note | Conforms to RoHS |
| Material housing | PASteel |
