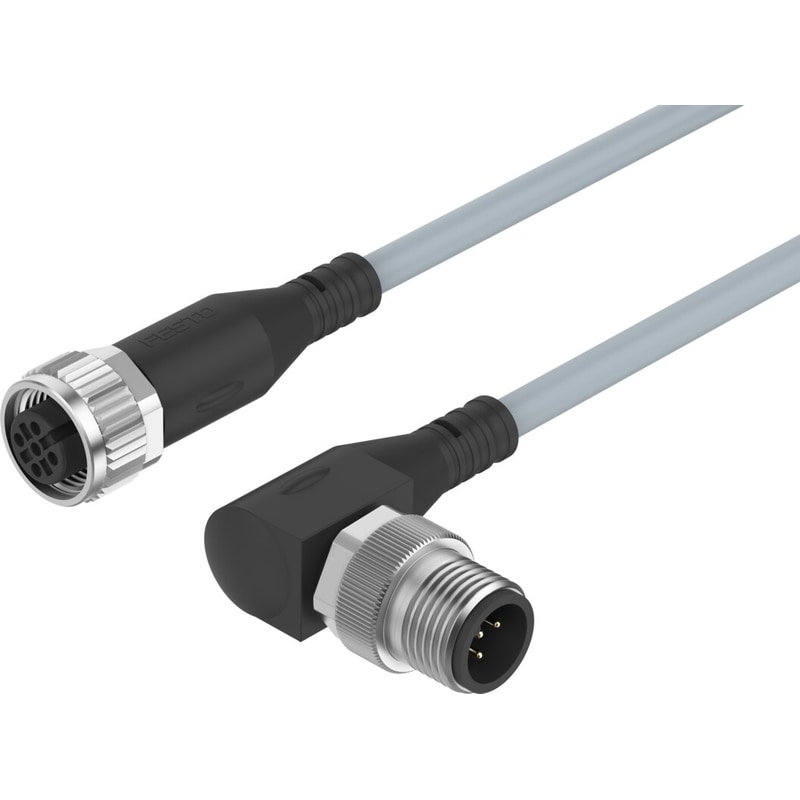

connecting cable NEBU-M12G5-K-0.5-M12W5 Conforms to standard=(* EN 61076-2-101, * EN 61984), Electrical connection=(* Straight socket/angled plug, * M12x1 / M12x1, * 5-pin / 5-pin, * – / rotatable thread), Operating voltage range DC=0 – 60 V, Operating voltage range AC=0 – 60 V, Acceptable current load at 40°C=4 A
| Conforms to standard | EN 61076-2-101 |
|---|---|
| Cable identification | with 2x label holders |
| Product weight | 37 g |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded to EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, occupied pins/wires | 5 |
| Electrical connection 1, type of mounting | Screw lock |
| Electrical connection 2, function | Controller side |
| Electrical connection 2, design | Round |
